USB board
NOTE: The USB board spare part kit does not include the cable. The cable is available using spare part
number L52658-001.
Table 5-8 USB board description and part number
Description Spare part number
USB board L52650-001
Before removing the USB board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 27).
3. Remove the battery (see Battery on page 30).

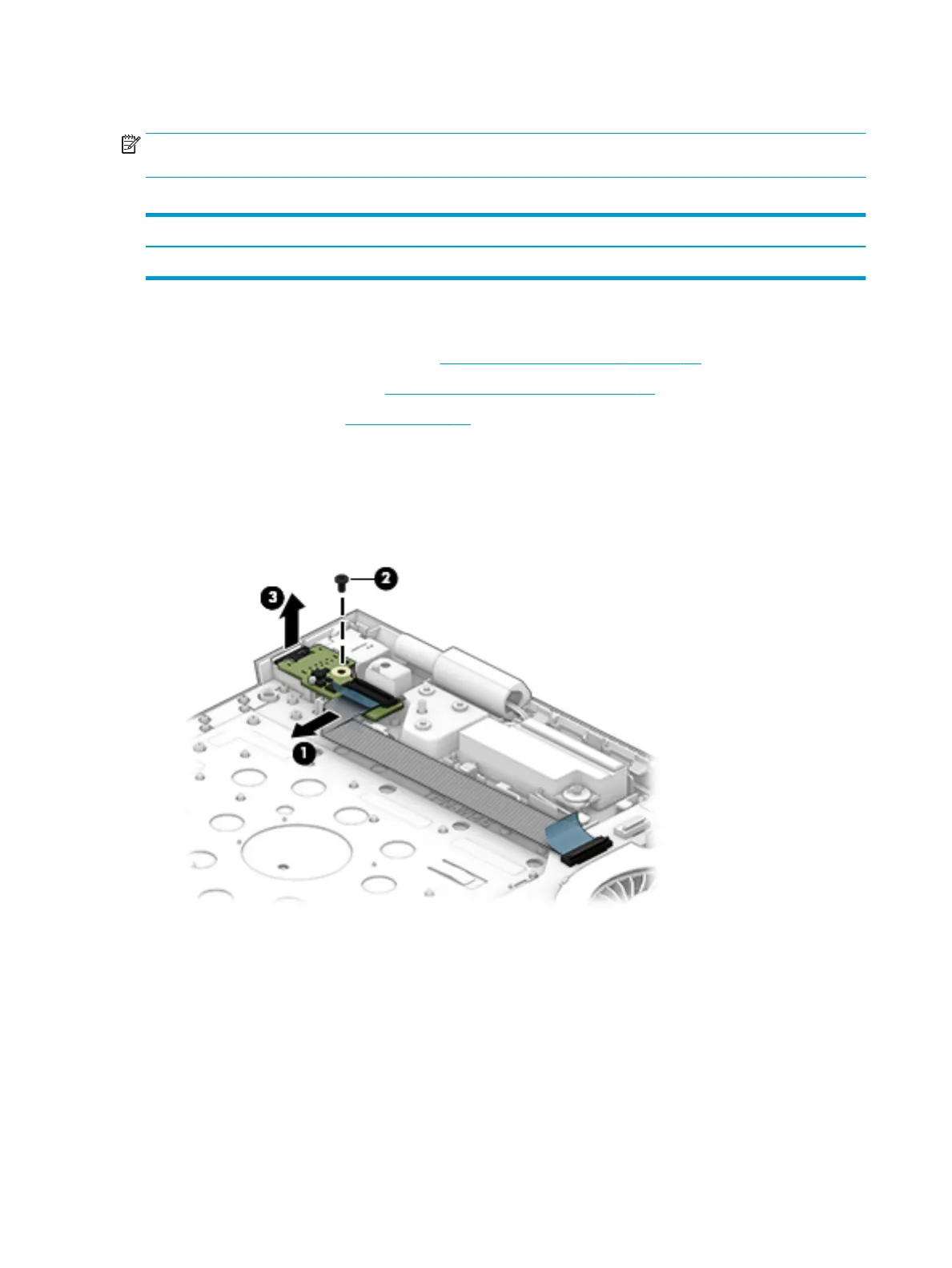

Remove the USB board
1. Disconnect the cable from the ZIF connector on the board (1).
2. Remove the Phillips M2.0 × 4.0 screw (2) that secures the board to the computer.
3. Remove the board from the computer (3).
Reverse this procedure to install the USB board
42 Chapter 5 Removal and replacement procedures for authorized service provider parts
