Solid-state drive and Optane Memory Module
Table 5-6 Solid-state drive descriptions and part numbers
Description Spare part number
512 GB, PCIe, Gen 3 × 4 L52457-001
512 GB, PCIe, value L53277-001
256 GB, PCIe, Gen 3 × 4 L52455-001
256 GB, PCIe, Gen 3 × 2 L52456-001
128 GB, SATA-3, TLC L52454-001
32 GB/512 GB, PCIe (Optane Memory Module/solid-state drive combination drive) L57592-001
16 GB, PCIe (Optane Memory Module) L52458-001
Solid-state drive module foil cover L52664-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 27).
3. Remove the battery (see Battery on page 30).
Remove the solid-state drive:

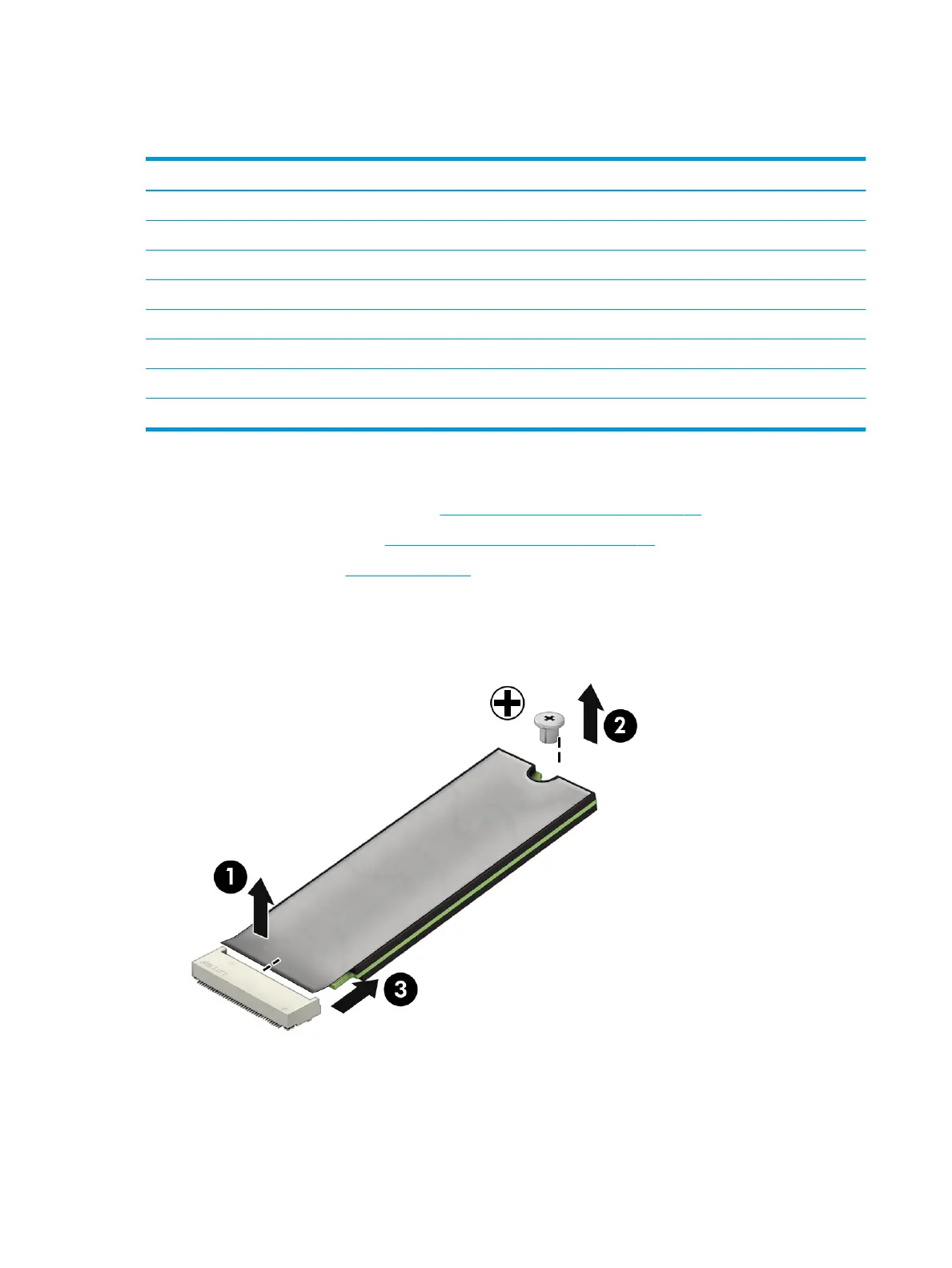

1. Lift the foil up on the connector side of the drive (1).
2. Remove the Phillips M2.0 × 2.5 screw (2), and then pull the solid-state drive module from the socket (3).
Reverse this procedure to install the solid-state drive.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
