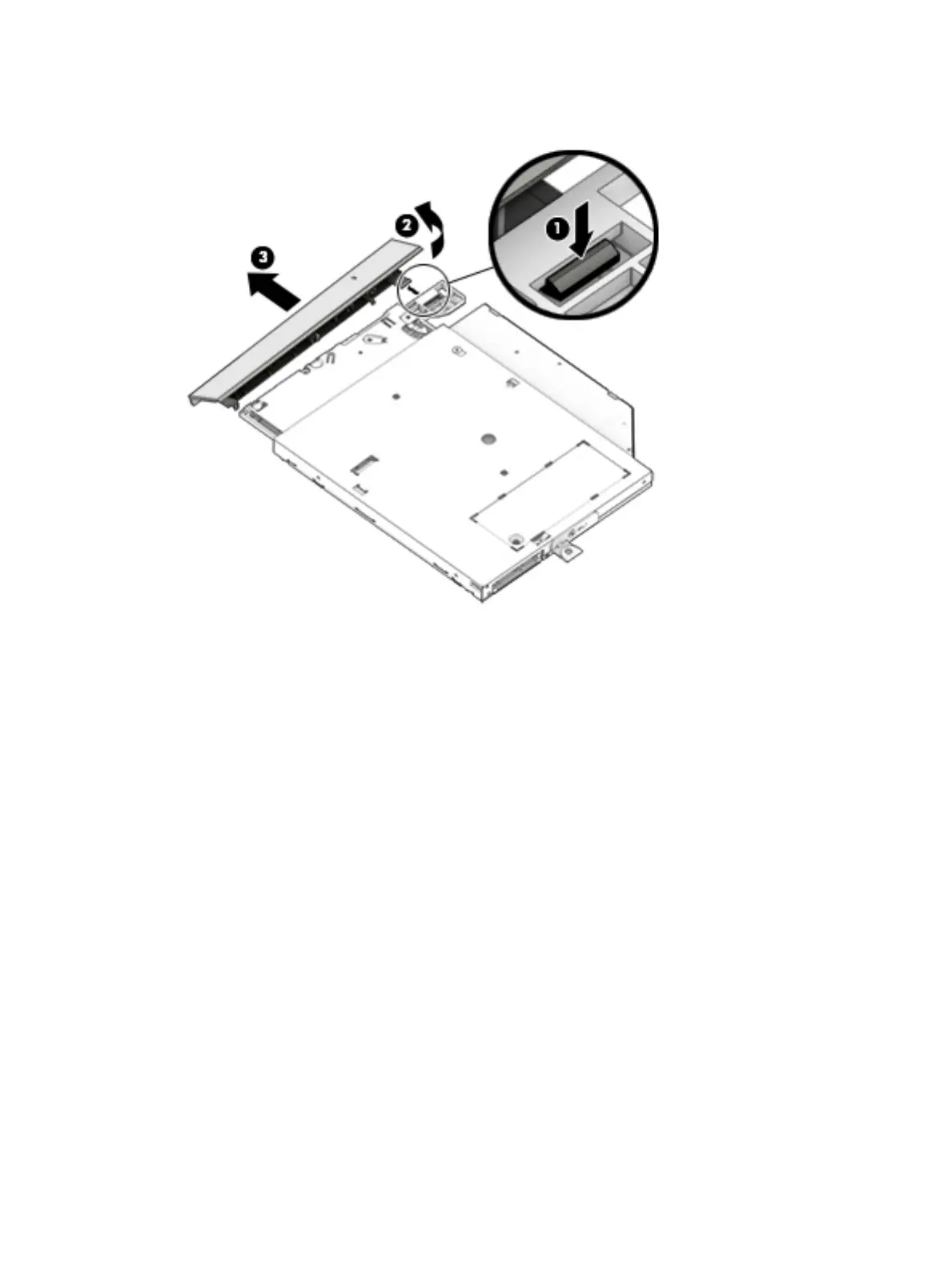

3. If it is necessary to remove the bezel from the optical drive, press the release latch (1), rotate the left
side of the bezel outward (2), and then remove the bezel from the drive (3).
Reverse this procedure to install the optical drive and bezel.
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
