a. Remove the display panel assembly.

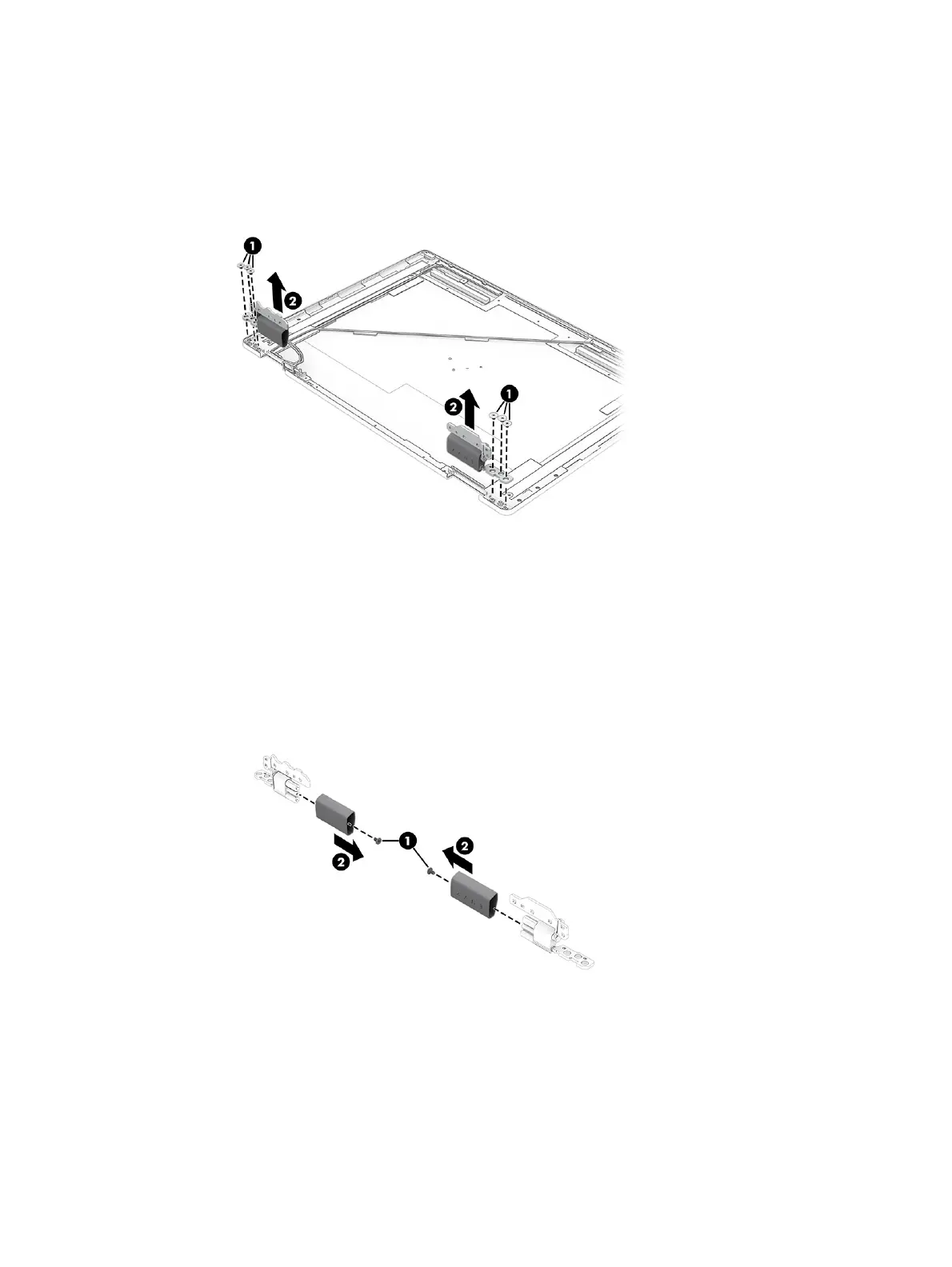

b. Remove the six Phillips M2.5 × 2.9 broadhead screws (1) that secure the hinges to the display
back cover.
c. Remove the hinges (2) and hinge covers.
d. Remove the two Phillips M2.0 × 3.9 screws (1) that secure the hinge covers to the hinges.
e. Remove the hinge covers (2) from the hinges.
The hinges are available using spare part number N91011-001.
The hinge covers are available using spare part numbers N91018-001 (in atmospheric blue
finish) and N91019-001 (in meteor silver finish) .
To reassemble and replace the display assembly, reverse the removal procedures.
System board
To remove the system board, use these procedures and illustrations.
52
Chapter 5 Removal and replacement procedures for authorized service provider parts
