HP FlexFabric 5700 series User Manual

138
a. Log in to IMC and click the Service tab.
b. Select Access Service > Portal Service Management > Server from the navigation tree to enter
the portal server configuration page, as shown in Figure 41.
c. Conf
igure the portal server parameters as needed.
This example uses the default values.
d. Click OK.

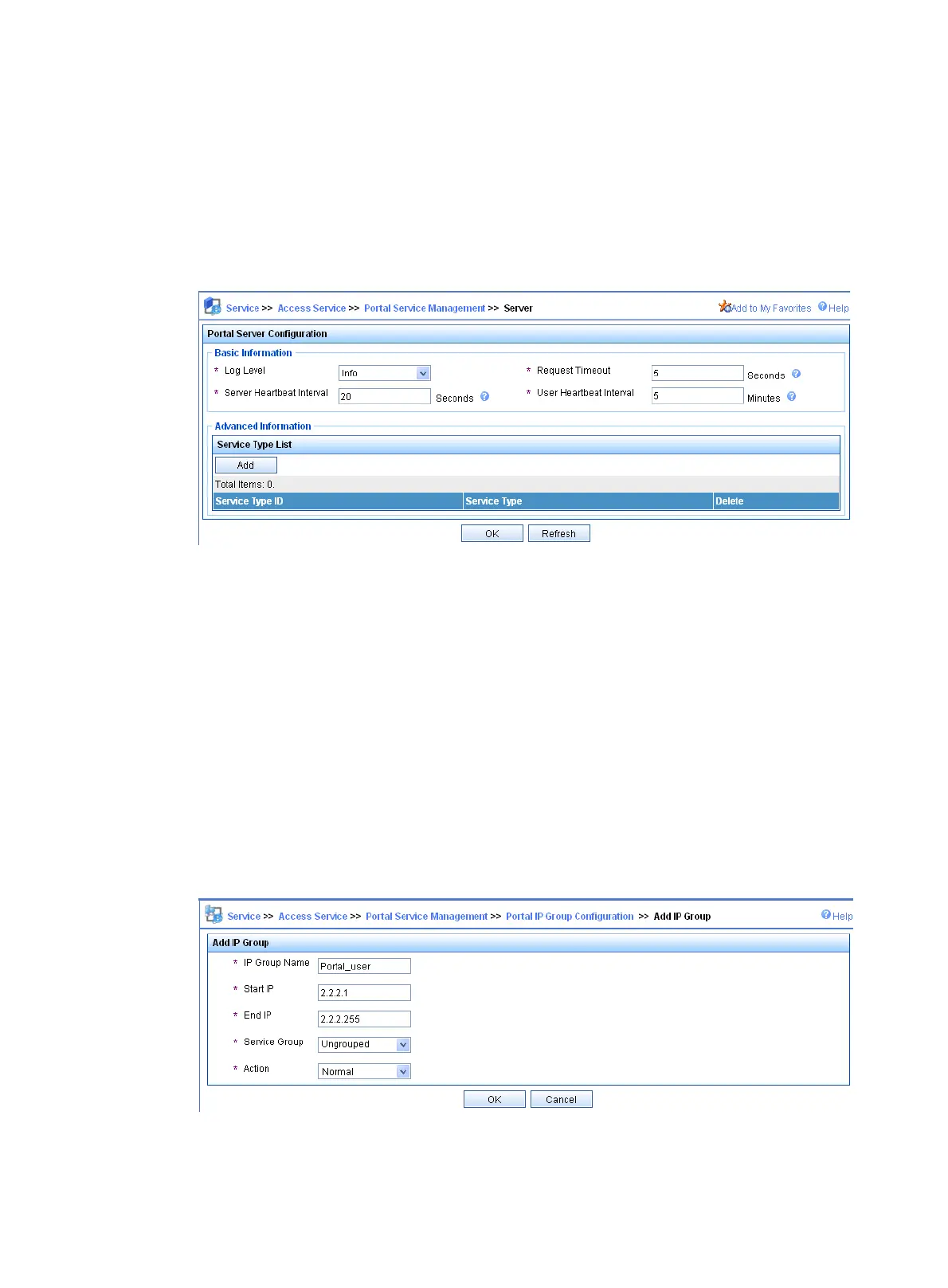

Figure 41 Portal authentication server configuration
2. Configure the IP address group:
a. Select Access Service > Portal Service Management > IP Group from the navigation tree to
enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 42.
c. Enter the IP group name.
d. Enter the start IP address and end IP add
ress of the IP group.
Make sure the host IP address (2.2.2.2) is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.
Figure 42 Adding an IP address group
3. Add a portal device:
