139
a. Select Access Service > Portal Service Management > Device from the navigation tree to enter
the portal device configuration page.
b. Click Add to enter the page shown in Figure 43.
c. Enter the device name NA
S.
d. Enter the IP address of the switch's interface connected to the host.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication, and therefore select No from the Reallocate IP
list.
g. Set whether to support the portal server heartbeat and user heartbeat functions.
In this example, select No for both Support Server Heartbeat and Support User Heartbeat.
h. Click OK.

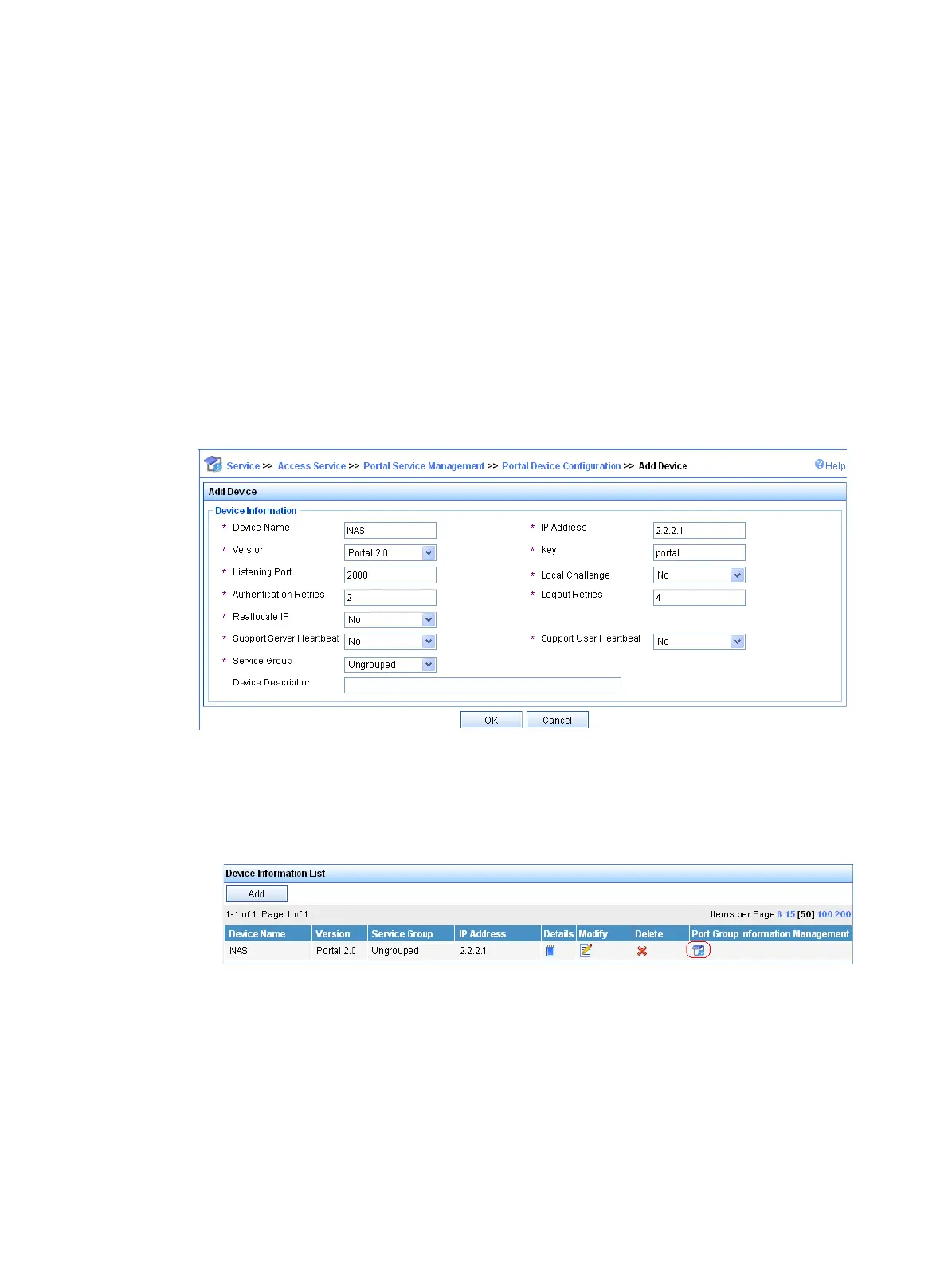

Figure 43 Adding a portal device
4. Associate the portal device with the IP address group:
a. As shown in Figure 44, cl
ick the icon in the Port Group Information Management column of
device NAS to enter the port group configuration page.
Figure 44 Device list
b. Click Add to enter the page shown in Figure 45.
