140

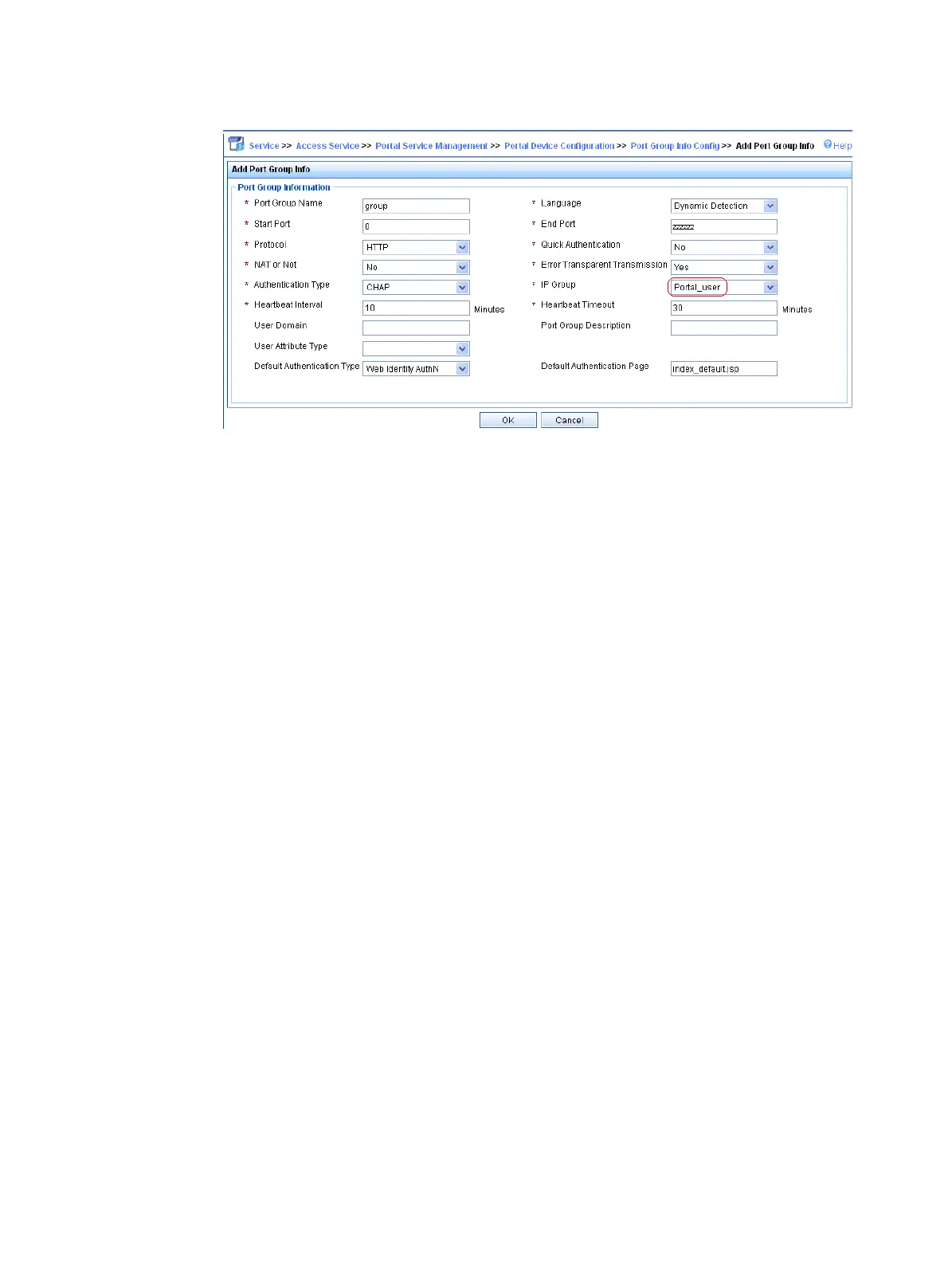

Figure 45 Port group configuration
c. Enter the port group name.
d. Select the configured IP address group.
The IP address used by the user to access the network must be within this IP address group.
e. Click OK.
5. Select Access Service > Service Parameters > Validate System Configuration from the navigation
tree to validate the configurations.
Configuring the portal authentication server on IMC PLAT 5.0
In this example, the portal server runs on IMC PLAT 5.0(E0101) and IMC UAM 5.0(E0101).
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select User Access Manager > Portal Service Management > Server from the navigation tree to
enter the portal server configuration page, as shown in Figure 46.
c. Conf
igure the portal server parameters as needed.
This example uses the default settings.
d. Click OK.
