HP FlexFabric 5700 series User Manual

141

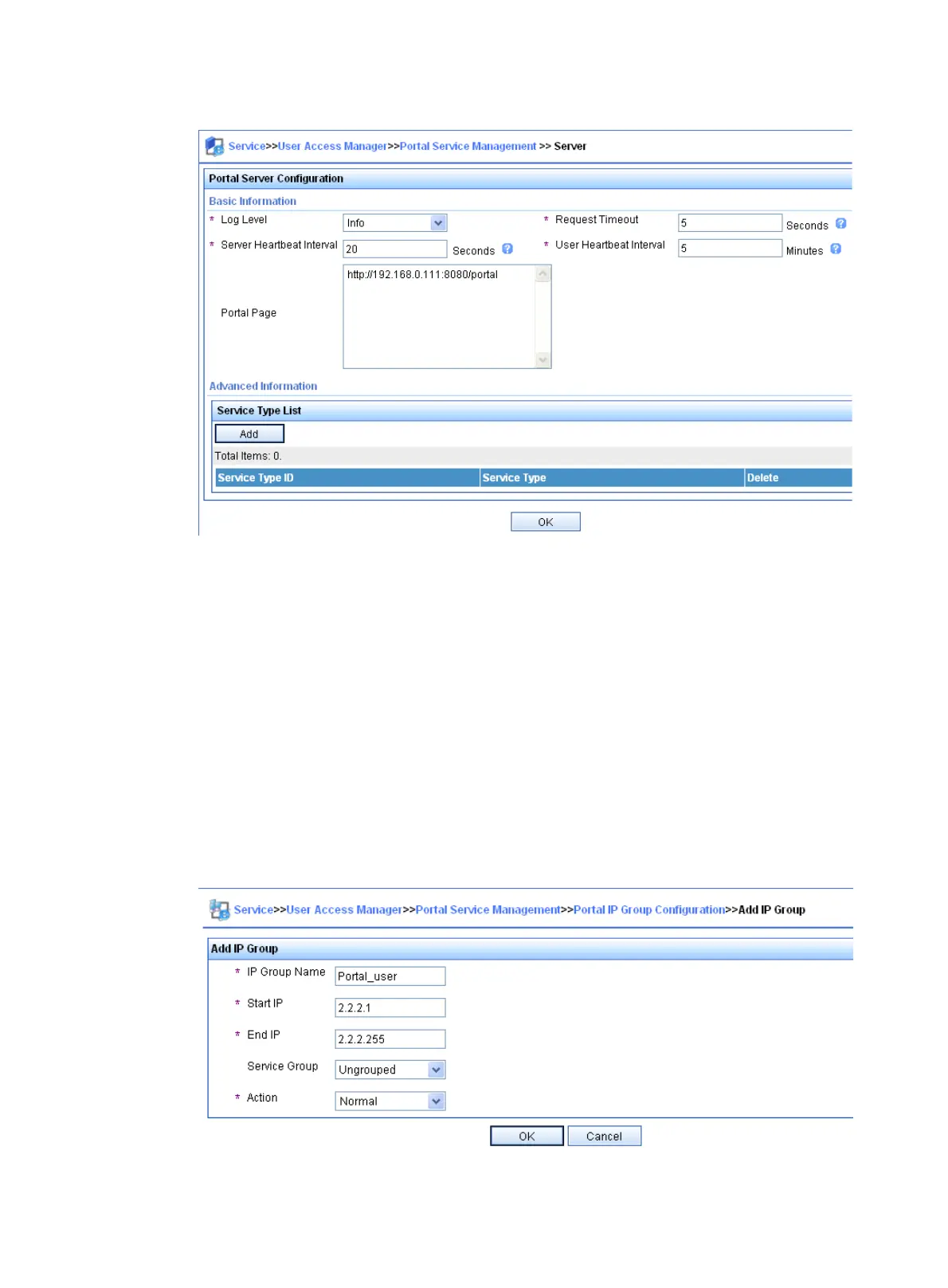

Figure 46 Portal server configuration
2. Configure the IP address group:
a. Select User Access Manager > Portal Service Management > IP Group from the navigation tree
to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 47.
c. Enter the IP group name.
d. Enter the start IP address and end IP add
ress of the IP group.
Make sure the host IP address is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.
Figure 47 Adding an IP address group

HP FlexFabric 5700 series Specifications

General

Layer Support	L2/L3
Routing Protocol	OSPF, BGP, RIP, IS-IS, Static Routing
Remote Management Protocol	SNMP, CLI, Web
Features	VXLAN
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1w, 802.1s, 802.3ad
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
VLANs	4K
