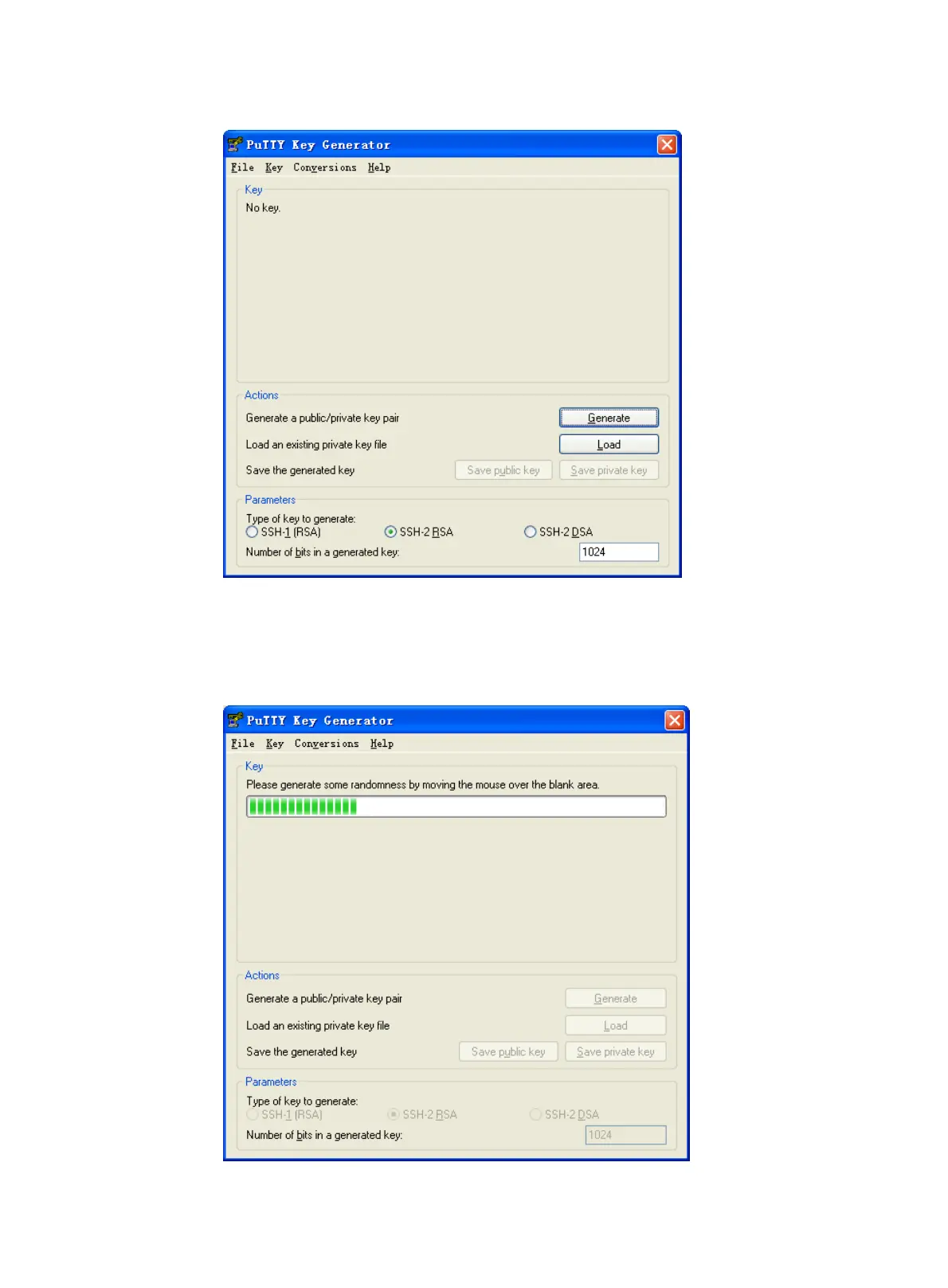

Figure 90 Generating a key pair on the client

a. Continuously move the mouse and do not place the mouse over the green progress bar shown

in Figure 91.

Otherwise, the progress bar stops moving and the key pair generating progress

stops.

Figure 91 Generating process
