HP integrity rx2900 i4 User Manual

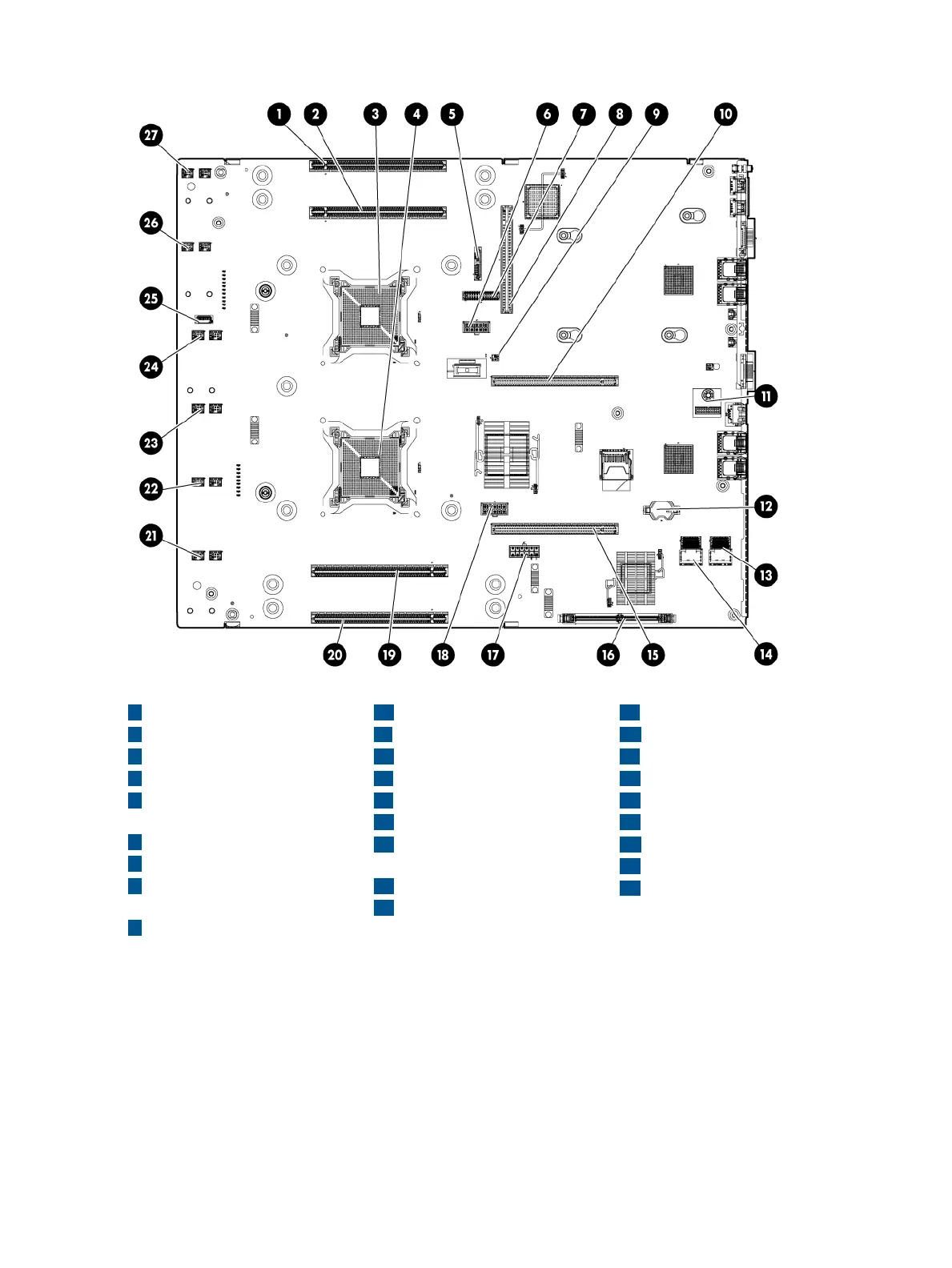

Figure 2 System board components
19
Memory riser connector 3
10
Primary riser connector
1
Memory riser connector 1
2
Memory riser connector 2
20
Memory riser connector 4
11
TPM connector
12
System battery
3
Processor socket 0
21
Fan 6 connector
22
Fan 5 connector
13
SAS B connector
4
Processor socket 1
5
SATA optical drive
connector
23
Fan 4 connector
14
SAS A connector
15 24
Secondary riser connector Fan 3 connector
6
CPU 0 power connector
2516
Internal USB connectorSAS cache module
connector
7
Front I/O connector
26
Fan 2 connector
17
SAS power connector
8
Power supply backplane
connector
27
Fan 1 connector
18
CPU 1 power connector
9
Intrusion switch connector
HP Confidential10 Overview
