3. Remove the hard drive.
To replace the component, see “Installing a hot-pluggable SAS hard drive” (page 40).
Removing and replacing a power supply blank
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all bays are populated with either a component or a blank.
To remove the component:

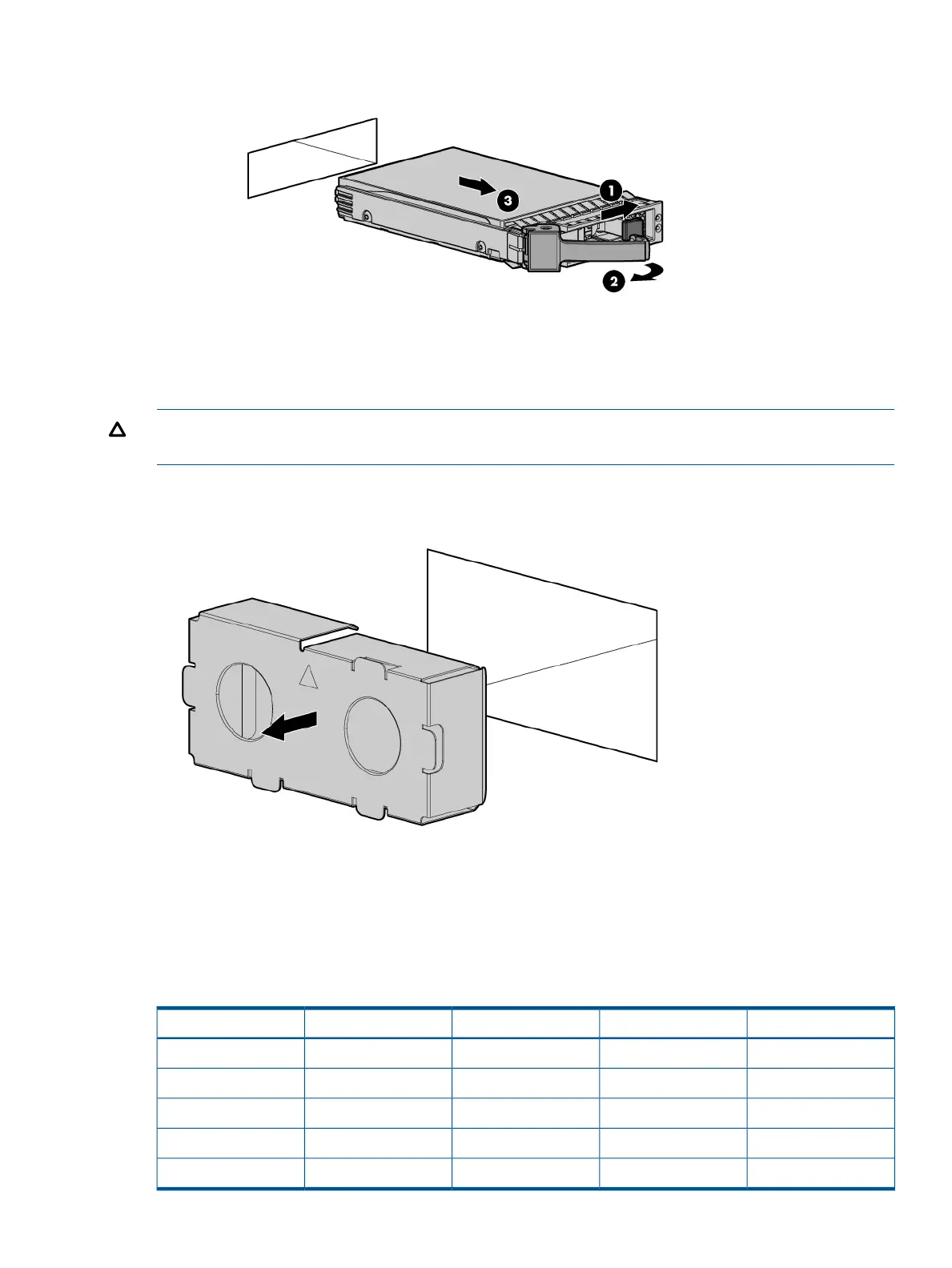

Figure 38 Removing the blank
To replace the component, reverse the removal procedure.
Removing and replacing a hot-swap power supply
The server supports 1+1 redundant power supply for high line (1200W/200~240VAC) and low
line (800W/100~120VAC) in the data center and office-friendly server versions.
Table 42 Power redundancy configurations
RedundancyDIMM countProcessor countPower supply countLine voltage
No2 to 241 or 21High Line (200-240)
Yes2 to 241 or 22High Line (200-240)
No2 to 121 or 21Low Line (100-120)
Yes2 to 1212Low Line (100-120)
Yes2 to 8
1
22Low Line (100-120)
HP Confidential Removing and replacing a power supply blank 105
