Removing and replacing the cache module
NOTE: The cache module is required to enable the full feature firmware stack for RAID support,
and certain levels of RAID support also require the super capacitor module and a Advanced Pack
license key.
To enable Advanced Pack licensing, see “Adding a RAID Advanced Pack license key” (page 140).
1. Power off the server (“Powering off the server” (page 99)).
2. Extend or remove the server from the rack (“Removing the server from the rack” (page 99))
or “Extending the server from the rack” (page 95)).
3. Remove the access panel (“Removing and replacing the access panel” (page 106)).
4. Remove the PCI riser cage (“Removing and replacing the PCI riser cage” (page 111)).

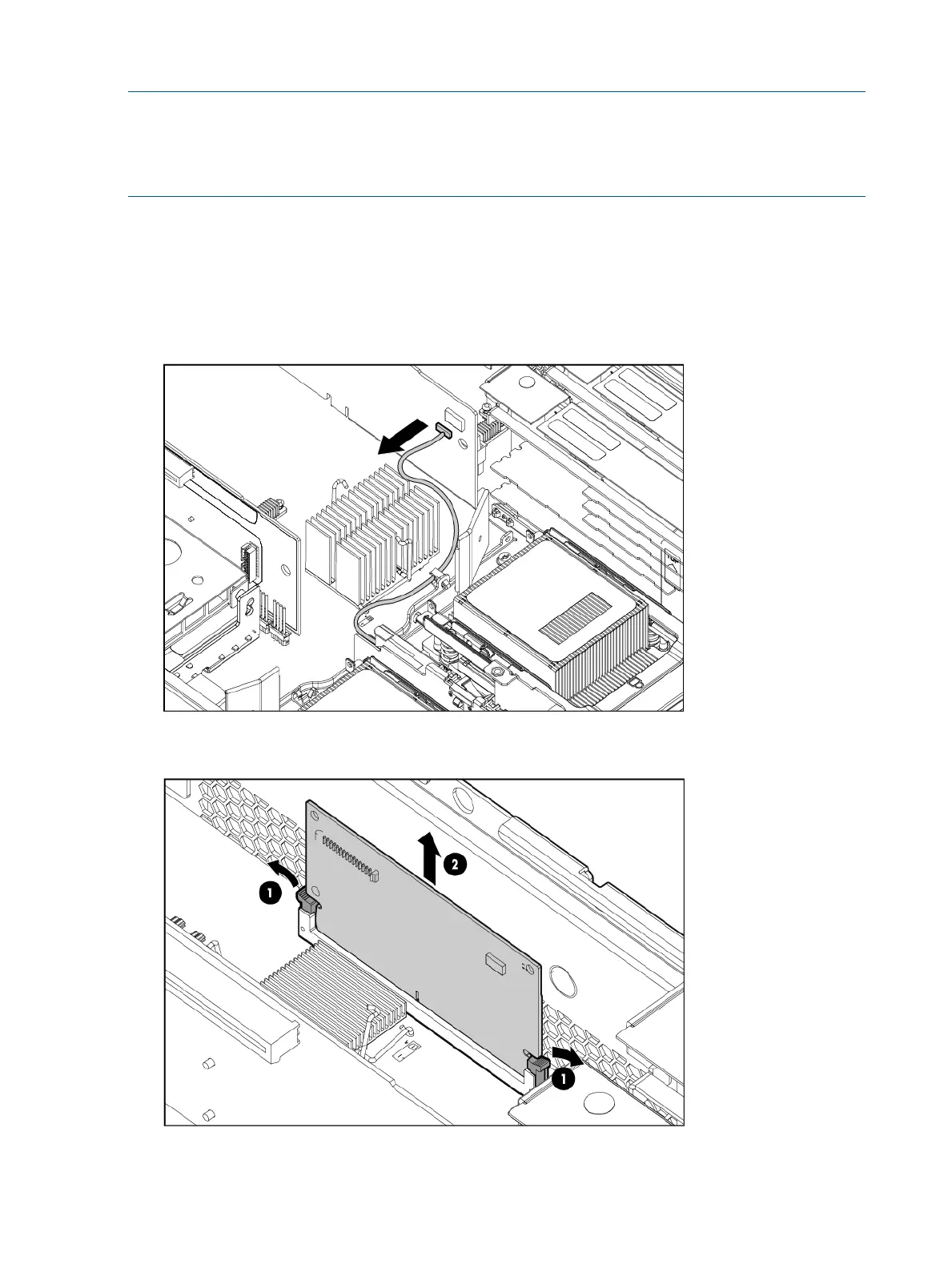

5. Disconnect the cable to the super capacitor pack.
6. Remove the cache module.
HP Confidential114 Removal and replacement procedures
