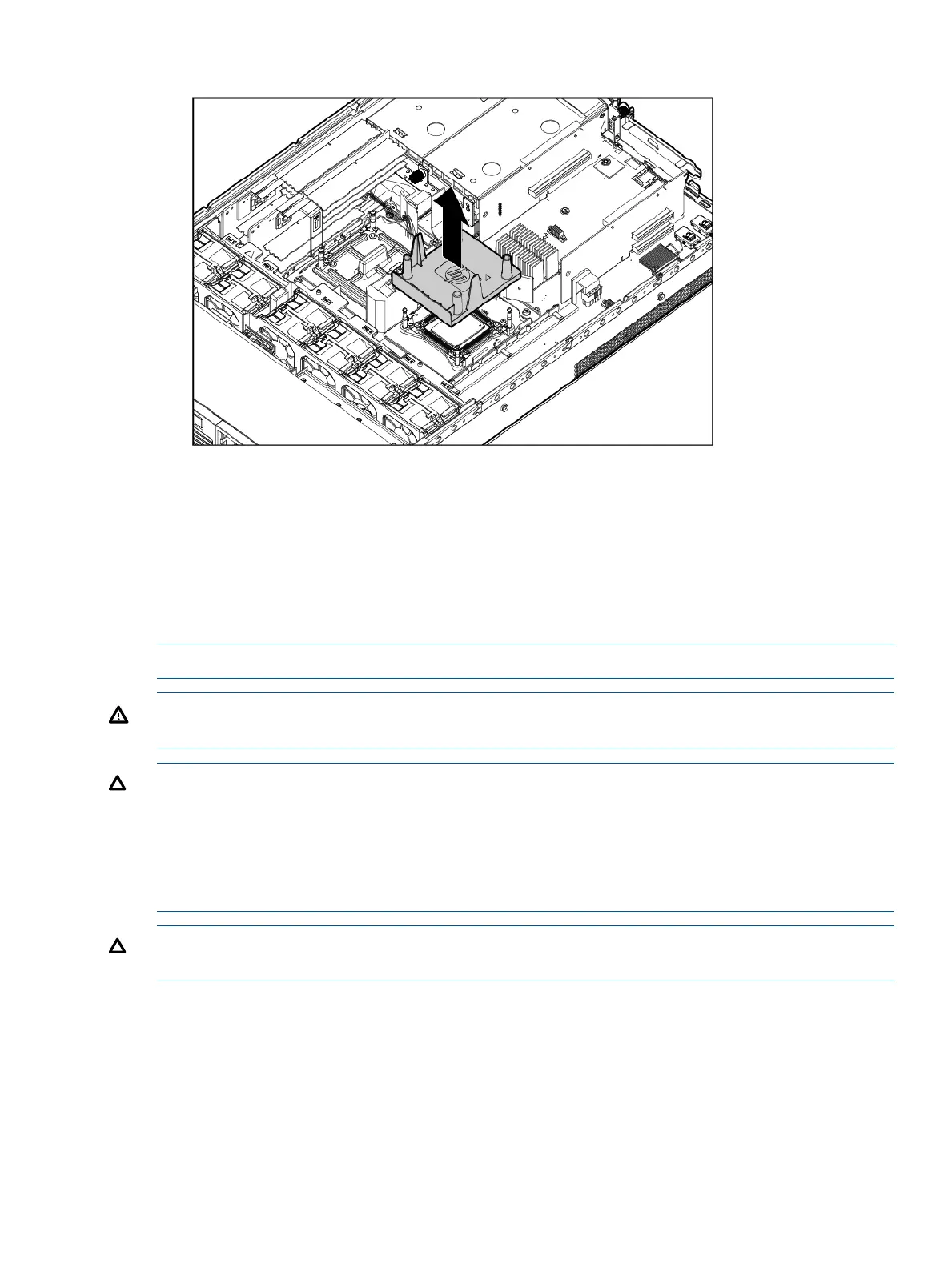

4. Pull the processor baffle straight up and out.
To replace the processor baffle:
1. Line the processor baffle up with 4 load posts on each corner of the socket.
2. Guide the processor baffle straight down into place.
Removing and replacing a processor and heat sink module
The server processor subsystem supports one or two Quad-Core or eight–Core Itanium processors.
When two processors are installed, the speeds must be identical.
NOTE: The rx2800 i4 currently supports only 1.35 V DIMMs.
WARNING! To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent possible server malfunction, do not mix processors of different speeds or
cache sizes.
CAUTION: Removing a processor will cause the DIMM loading rules to change. See “Memory
configurations” (page 46) and use the loading rules for two processors. If you do not perform these
procedures, then any memory associated with the removed processor will not be seen by the
system.
CAUTION: To prevent thermal instability and damage to the server, do not separate the processor
module from the heat sink.
1. Power off the server and remove it from the rack (“Powering off the server” (page 99) and
“Removing the server from the rack” (page 99)).
2. Remove the access panel (“Removing the access panel” (page 42)).
3. Open the processor cage.
HP Confidential Removing and replacing a processor and heat sink module 117
