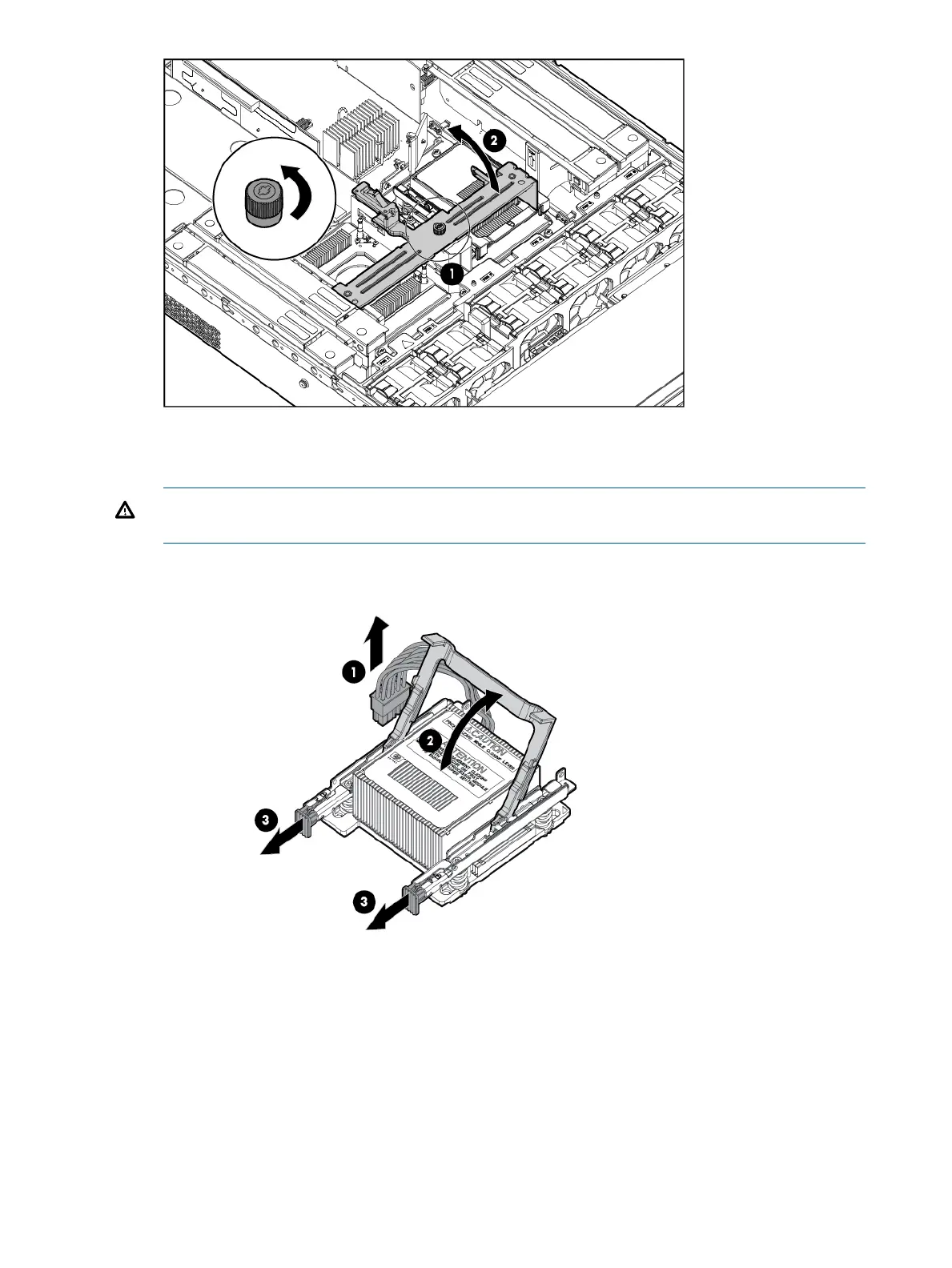

4. Disconnect the power cord (see 1 below).
5. Rotate the processor locking handle up and back until it reaches a hard stop (see 2 below).
WARNING! The heat sink locking lever can constitute a pinch hazard, keep your hands on
top of the lever during installation to avoid personal injury.
6. Pull both plastic tabs out (see 3 below).
7. Lift the processor and heat sink off of the socket, pulling straight up.
HP Confidential118 Removal and replacement procedures
