2. Extend the server from the rack (“Extending the server from the rack” (page 95)).
3. Remove the access panel (“Removing and replacing the access panel” (page 106)).
4. Remove necessary fans 1 and 2.

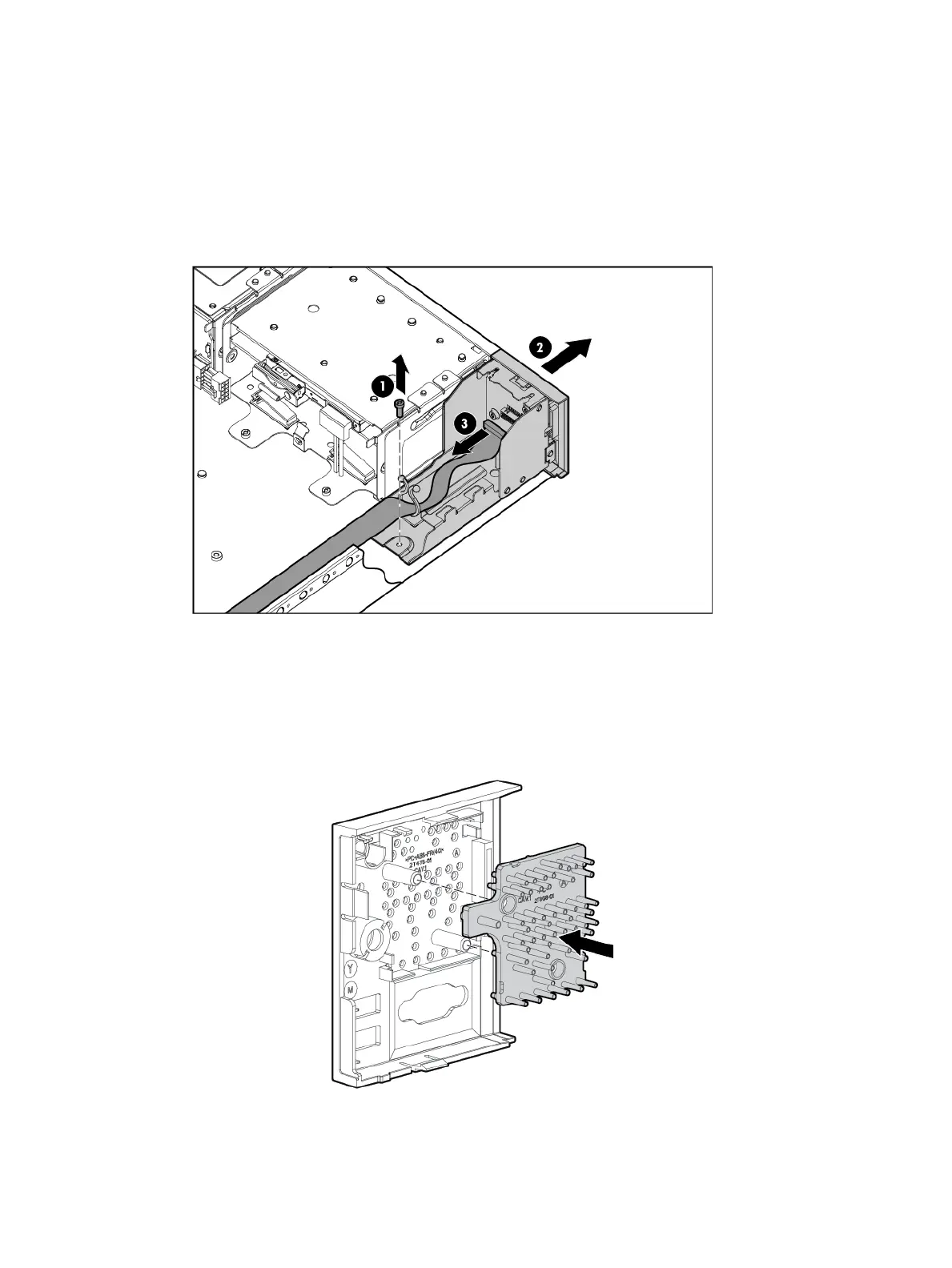

5. Remove the screw securing the SID inside the chassis.
6. Disconnect the cable clip.
7. Pull the Systems Insight Display module halfway out of the server.
8. Disconnect the Systems Insight Display cable.
9. Remove the Systems Insight Display module.
To replace the component, reverse the removal procedure.
If installing a replacement SID module:
1. Retain the SID bezel, the transparent light pipe, and the black rubber light pipe.
2. Install the transparent plastic light pipe onto the SID bezel.
3. Install the SID bezel onto the metal chassis, ensuring the four latches all lock.
HP Confidential Removing and replacing the SID 123
