7. Secure the heat sink to the processor.

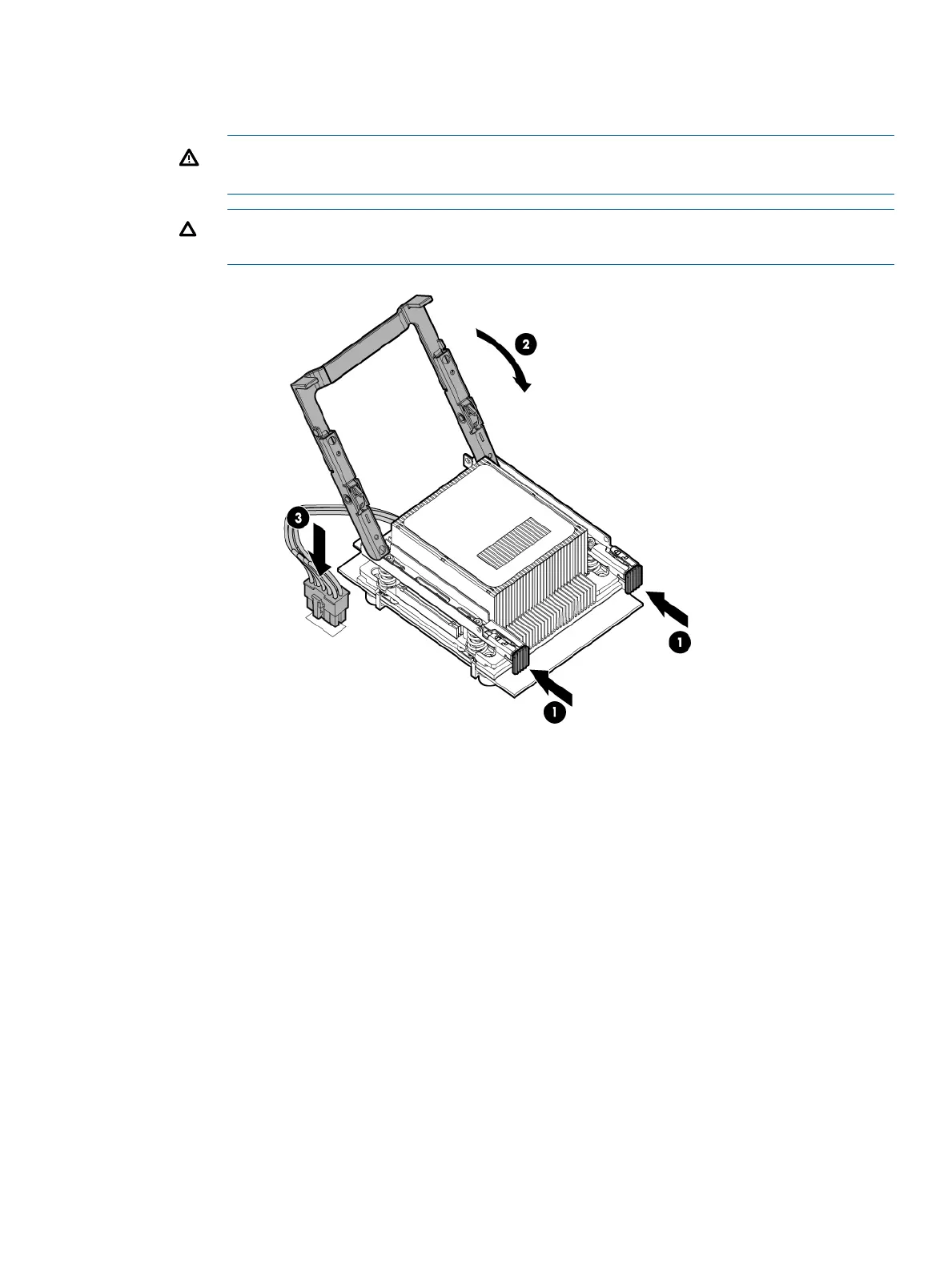

a. Slide both plastic locking tabs into place. See callout 1 in the following figure.
b. Flip the latch down. See callout 2 in the following figure.
WARNING! The heat sink locking lever can constitute a pinch hazard. Keep your hands
on top of the lever during installation to avoid personal injury.
CAUTION: To prevent thermal instability and damage to the server, do not separate
the processor module from the processor heat sink after they have been coupled.
HP Confidential Installing a processor 55
