HP Integrity rx4640 Operation Guide

Chapter 3
External Connectors
Connector Pinouts
28
VGA Port

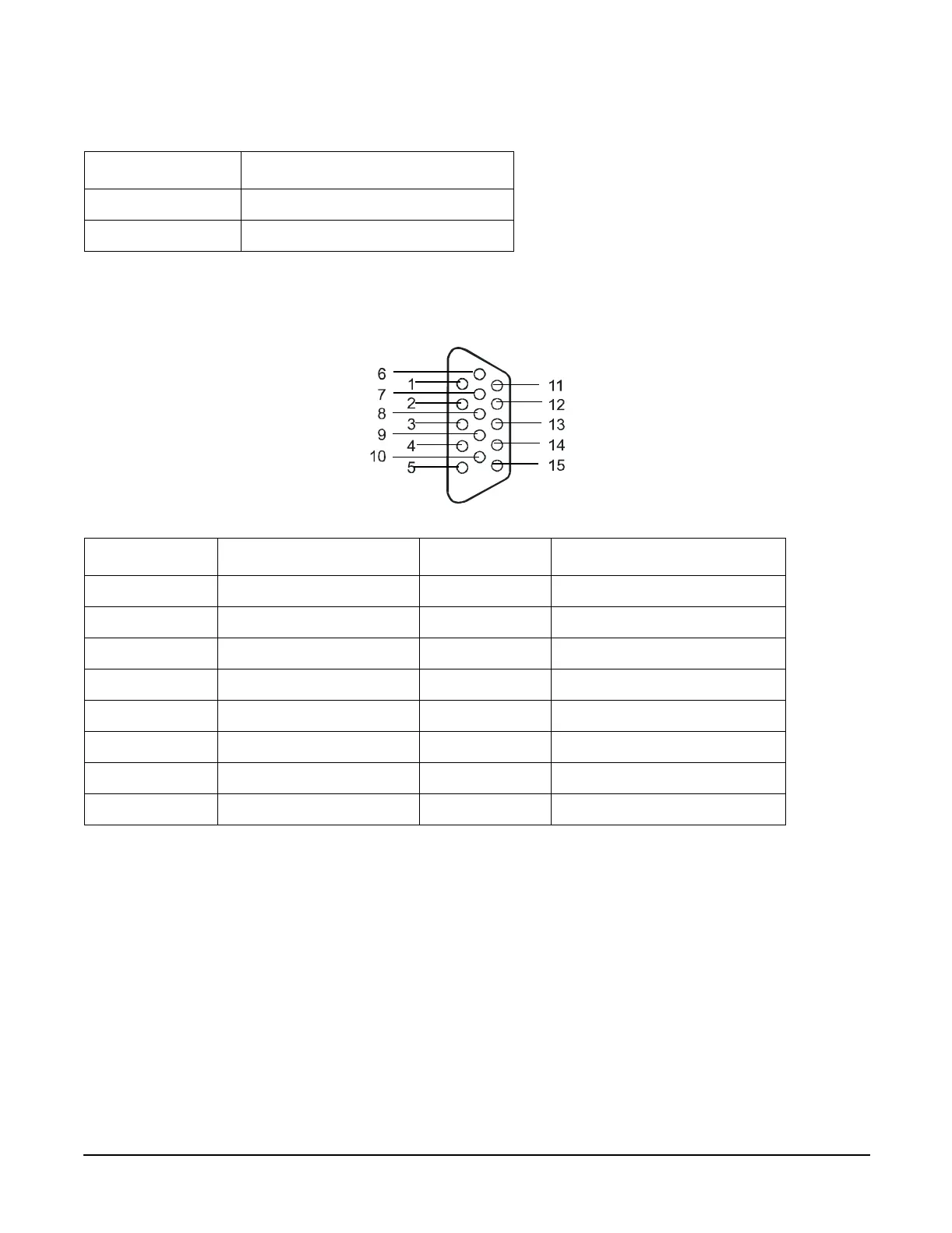

Figure 3-3 Video Port Connector
3PR
4Ground
Table 3-2 Video Connector Pinouts
Pin Number Signal Description Pin Number Signal Description
1Red 9+5VDC
2 Green 10 Sync return (ground)
3Blue 11Not used
4 Not used 12 Monitor ID bit 1
5 Video Self Test (ground) 13 Horizontal sync (+)
6 Red return (ground) 14 Vertical sync (-)
7 Green return (ground) 15 Video ID bit 2
8 Blue return (ground)
