HP Integrity rx4640 Operation Guide

Chapter 5
Troubleshooting
Troubleshooting Using LED Indicators
78
I/O Baseboard LED Indicators
Various LEDs, sensors, and reset or attention buttons are found on the I/O baseboard.

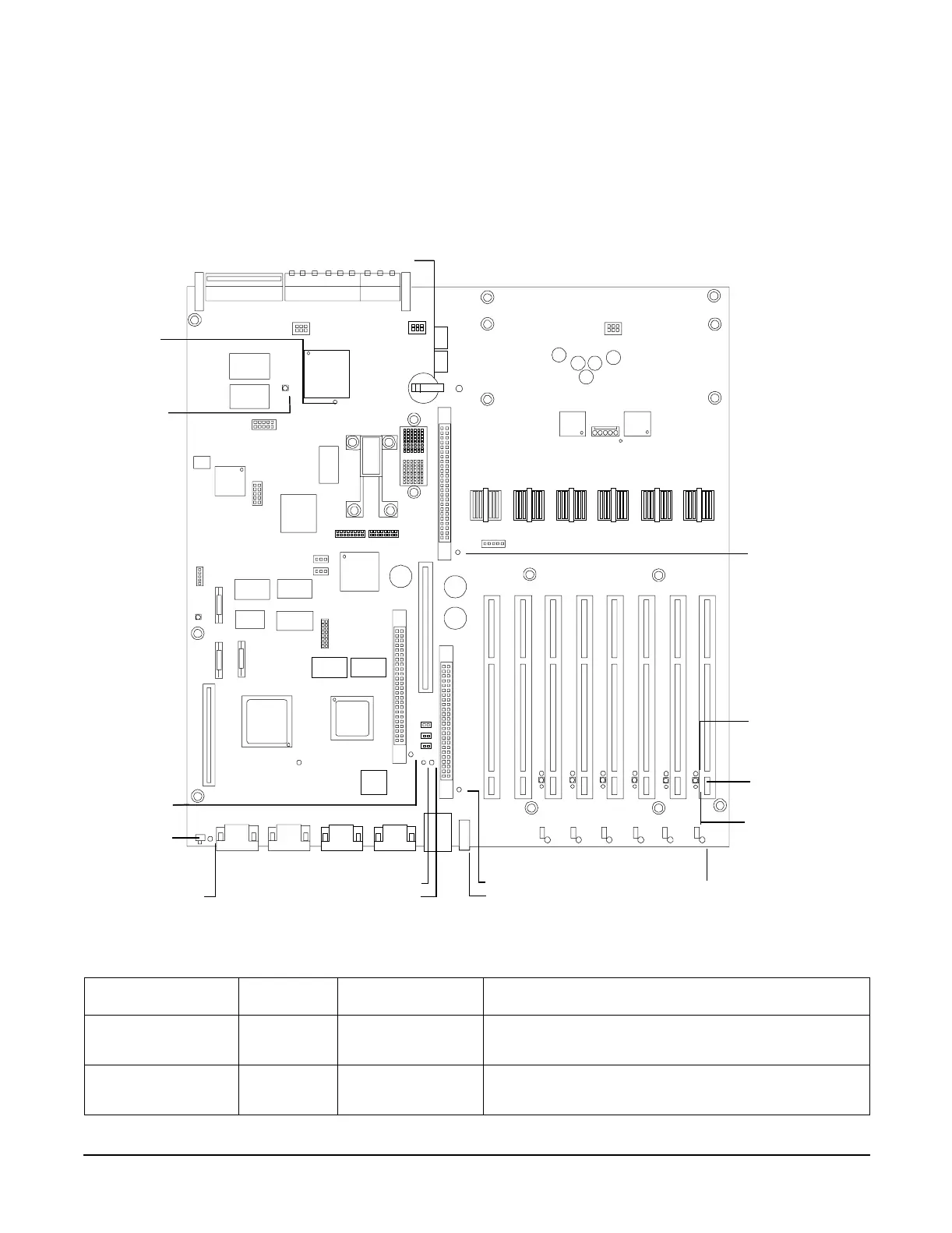

Figure 5-3 I/O Baseboard LEDs, Buttons and Sensors
Table 5-3 I/O Baseboard LEDs, Buttons and Sensors
LED/Button Color Status Condition
12V VRM Power
LED
Green On 12V VRM is functioning.
5V VRM Power
LED
Green On 5V VRM is functioning.
PCI Attention
LED 6X
PCI Attention
Button (Doorbell
)
6X
PCI Attention LED 6X
3.3VSB
Power
LED
12V VRM LED
3.3V VRM LED
5V VRM
LED
MP Heartbeat LED
Battery
BMC
Reset
Button
MP Soft
Reset
Button
MP Self-Test
LED
BMC Heartbeat LED
Locator Button/LED
PCI Power LED
6X
