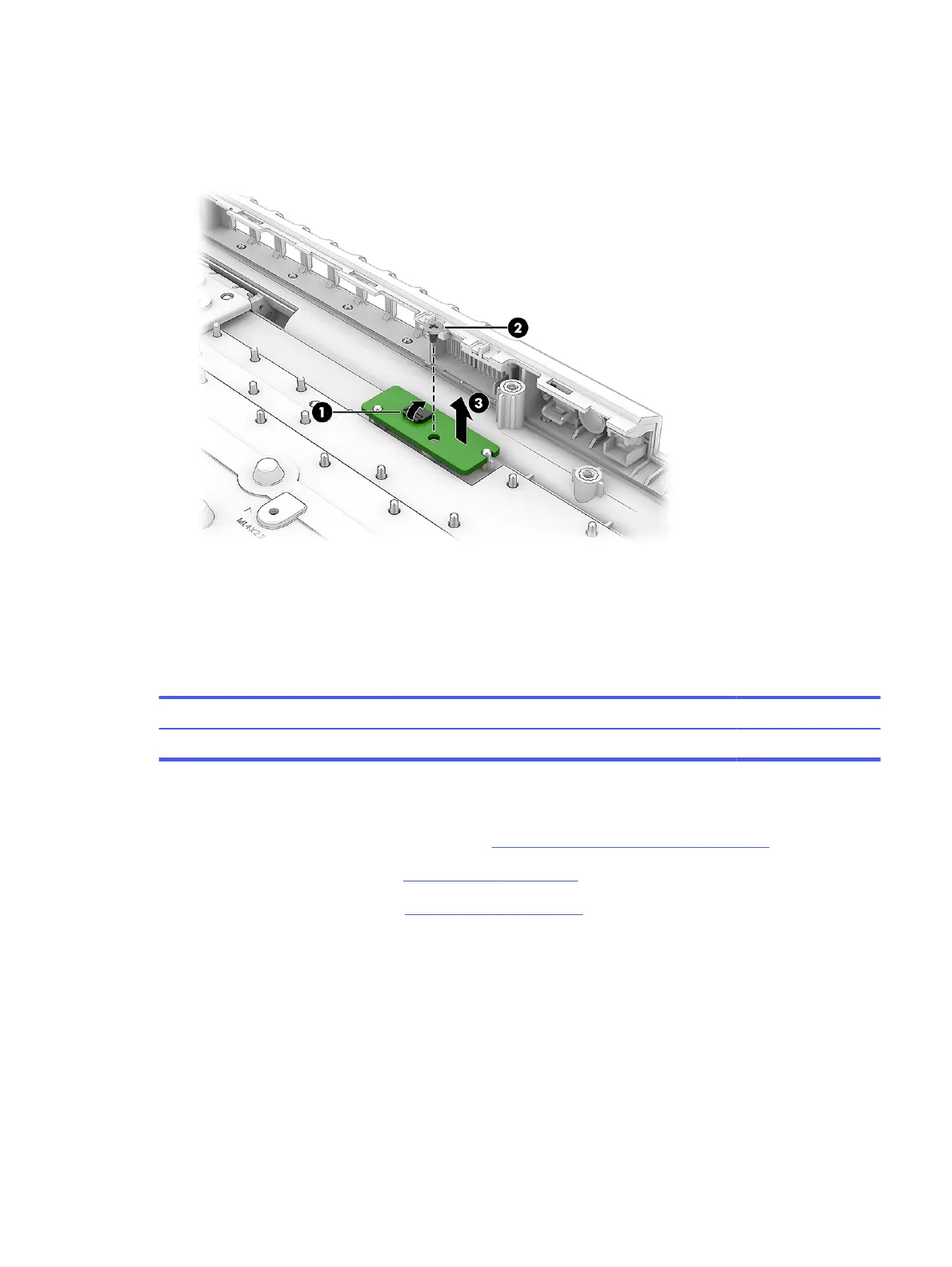

1. If still connected, disconnect the cable from the ZIF connector (1) on the board.
2. Remove the Phillips M2.0 × 2.0 screw (2) that secures the board to the computer, and then remove
the board (3).
To install the IR board, reverse this procedure.
Audio board
To remove the audio board, use this procedure and illustration.
Table 7-9
Audio board description and part number
Description Spare part number
Models with 5090, 5080, or 5070Ti graphics P30863-001
Before removing the audio board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 38).
2. Remove the bottom cover (see Bottom cover on page 38).
3. Remove the system board (see System board on page 58).
Remove the audio board:
1. Disconnect the cable from the ZIF connector (1) on the audio board.
2. Remove the two Phillips M2.0 × 3.5 screws (2) that secure the board to the computer.
Audio board
63
