3. Pull the board (3) into the computer to remove it.
To install the audio board, reverse this procedure.
ULL board

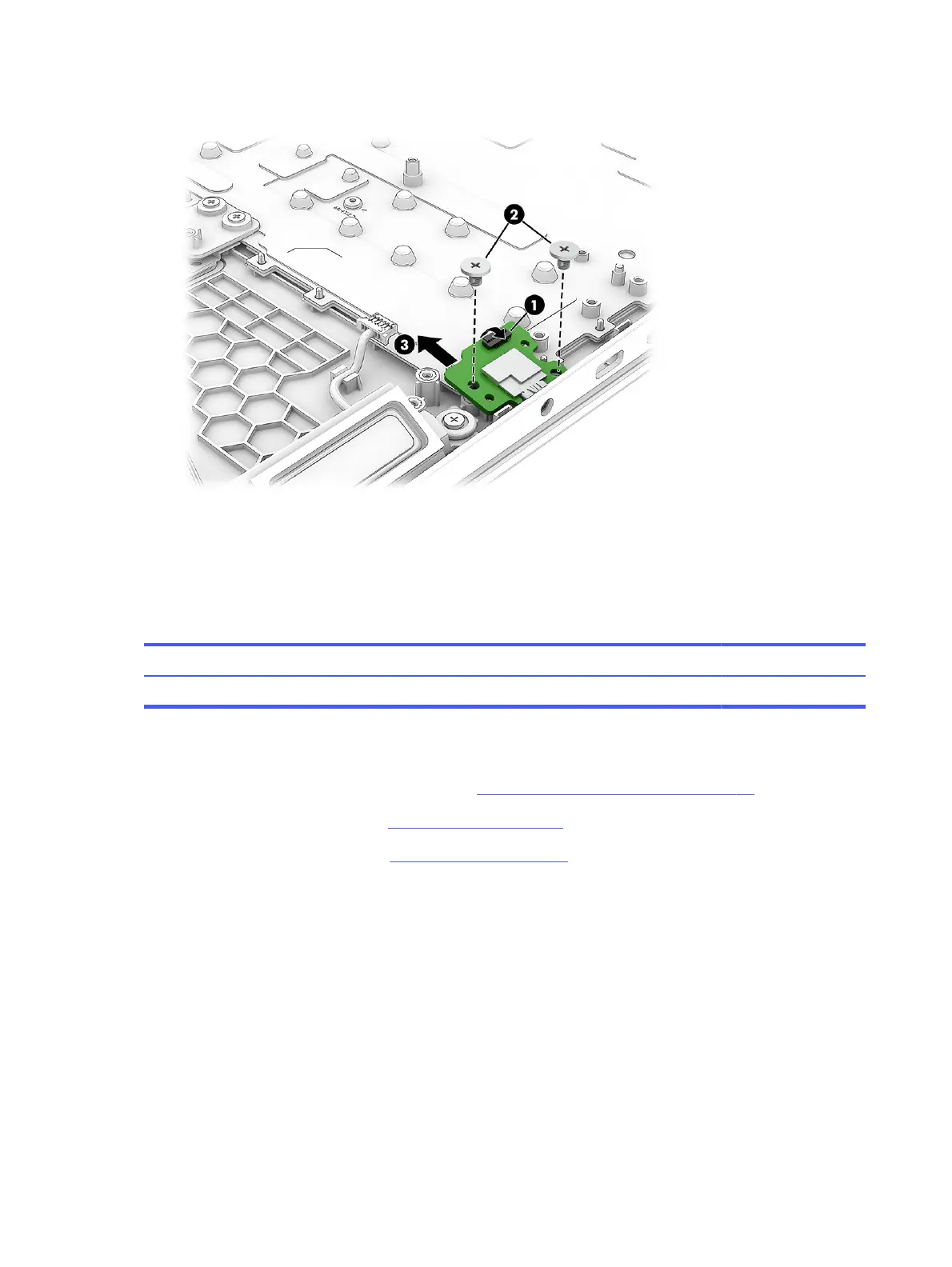

To remove the ULL board, use this procedure and illustration.
Table 7-10
ULL board description and part number
Description Spare part number
Models with 5090, 5080, or 5070Ti graphics (includes cable) P30861-001
Before removing the ULL board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 38).
2. Remove the bottom cover (see Bottom cover on page 38).
3. Remove the system board (see System board on page 58).
Remove the ULL board:
1. If still connected, disconnect the cable from the connector (1) on the board,
64
Chapter 7 Removal and replacement procedures for authorized service provider parts
