15

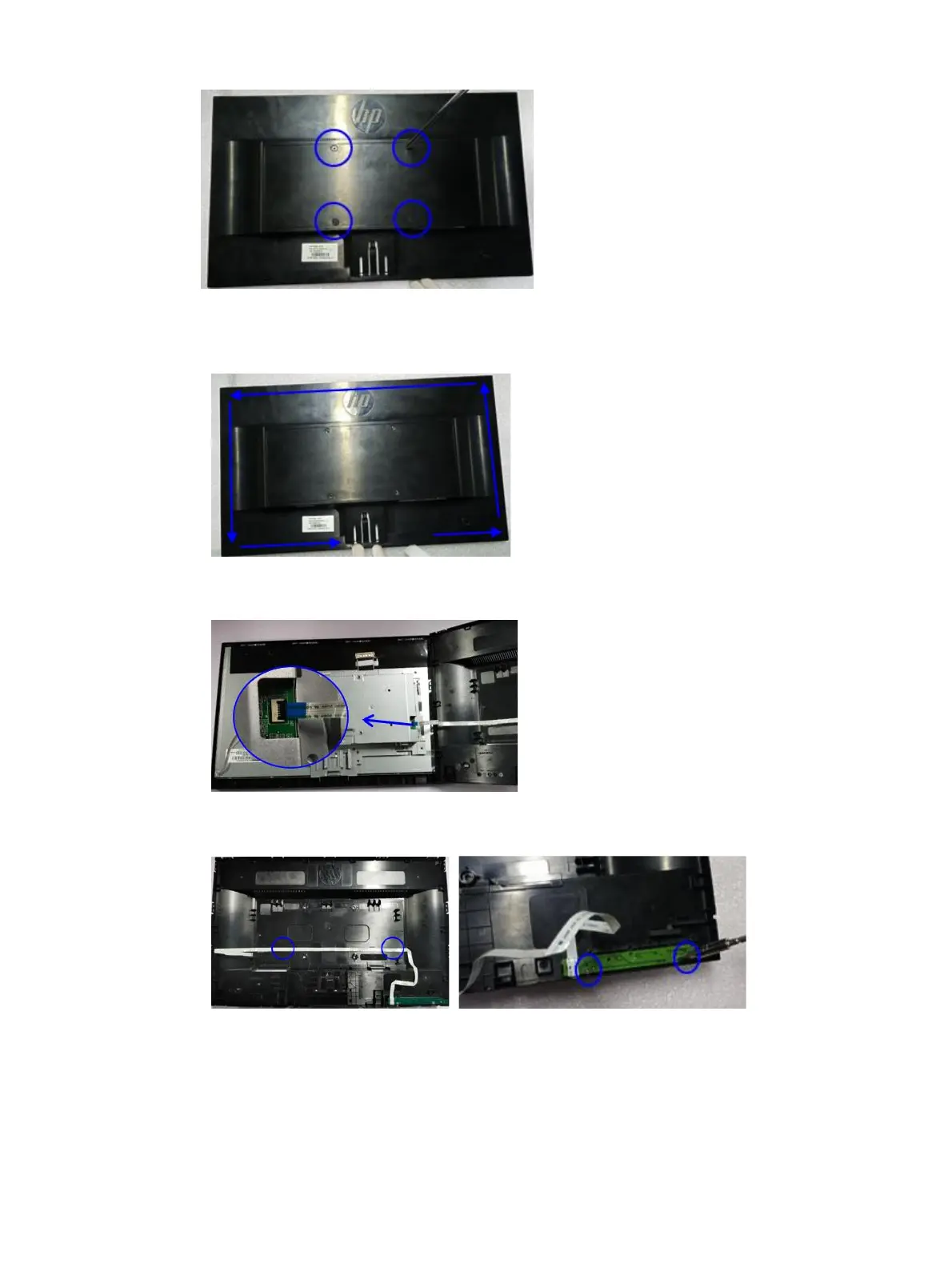

Remove the rear cover screws
2) Insert the scraper bar tool into the gap between the front bezel and rear case. The hook opens. Repeat the
steps.
Separate the front bezel and rear case
3) Turn over rear cover and disconnect the terminal.
Separate the cable
4) Peel off the cable from rear cover, unfix two screws.
Separate keyboard from rear cover
5) Peel off all aluminum foils and tapes, disconnect the cables.
