5–10 Maintenance and Service Guide
Removal and Replacement Procedures

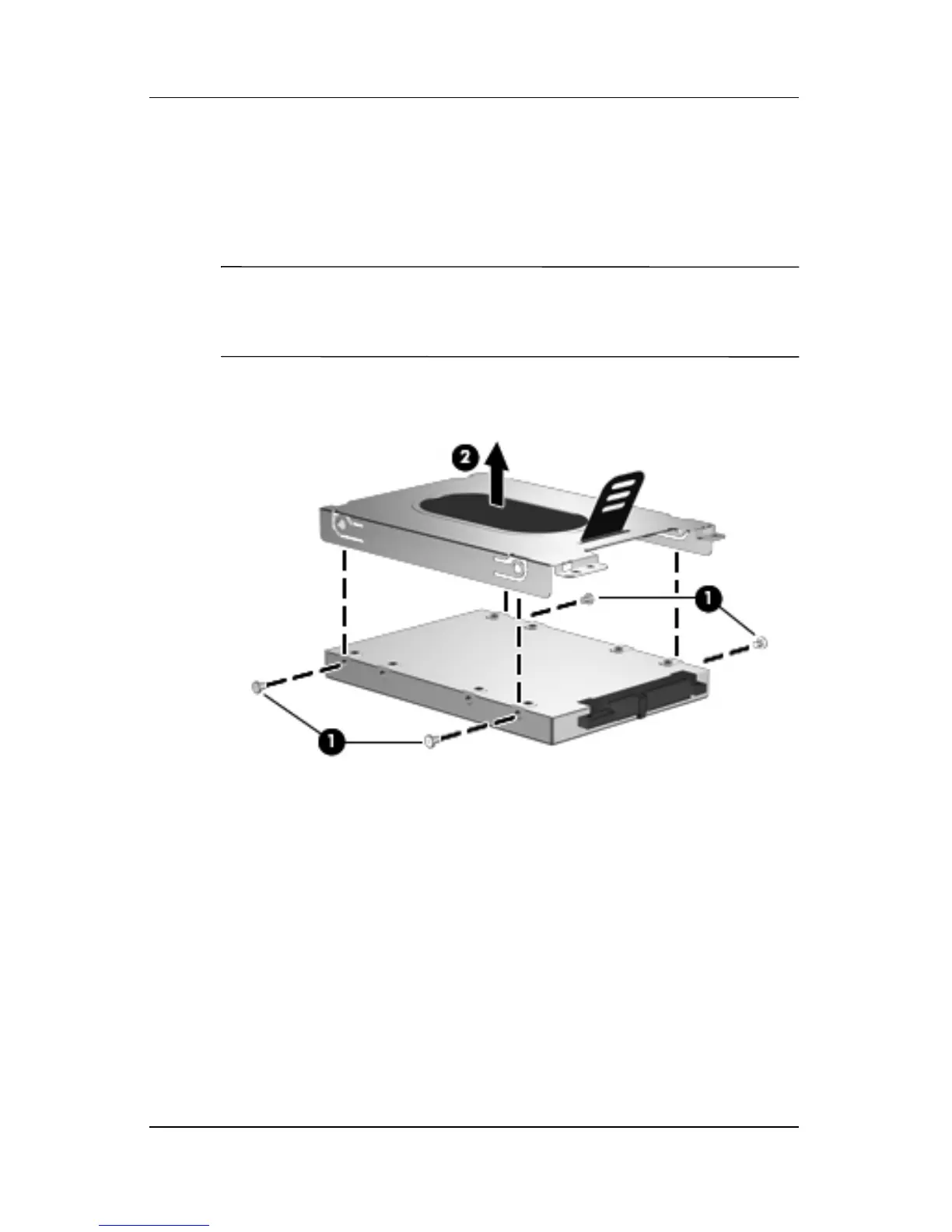

7. Remove the four Phillips PM3.0×3.0 screws 1 that secure
the hard drive bracket to the hard drive.
8. Lift the bracket 2 straight up to remove it from the
hard drive.
✎
The hard drive bracket and the screws used to secure the
bracket to the hard drive are included in the Hard Drive
Bracket Kit, spare part number 434106-001.
Removing the Hard Drive Bracket
Reverse the above procedure to install and reassemble the
hard drives.
