5–30 Maintenance and Service Guide
Removal and Replacement Procedures
5.12 Speaker Assembly
1. Prepare the computer for disassembly (Section 5.3).
2. Remove the switch cover (Section 5.10).
3. Remove the keyboard (Section 5.11).
4. Disconnect the speaker assembly cable 1 from the power
button board.
5. Remove the the wireless antenna cables and microphone
cable from the clips 2 in the speaker assembly.

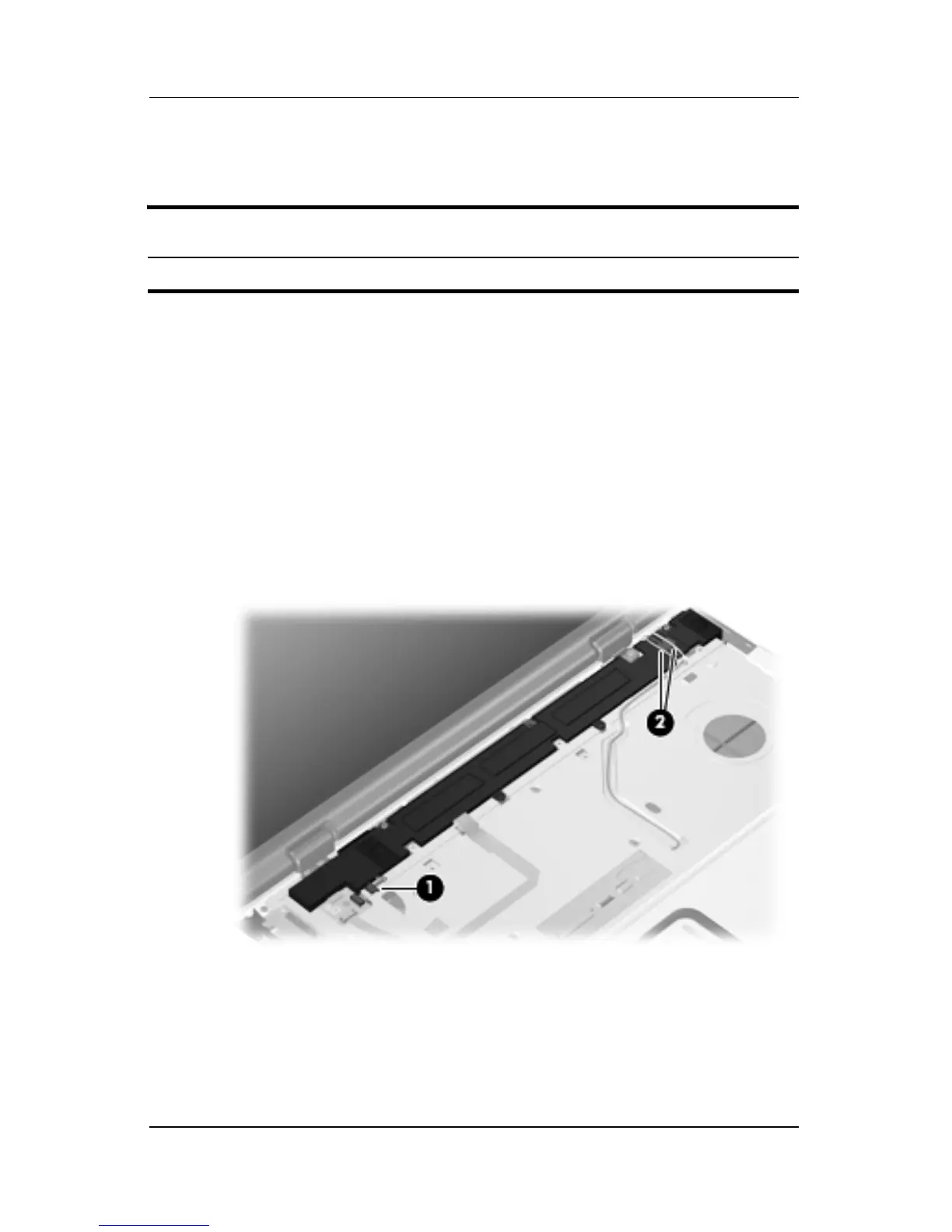

Releasing the Speaker Assembly
Speaker Assembly Spare Part Number Information
Speaker assembly 432994-001
