5–50 Maintenance and Service Guide
Removal and Replacement Procedures
5. Turn the computer right-side up with the front toward you.
6. Disconnect the power button board cable 1 and the LED
board cable 2 from the low insertion force (LIF) connectors
to which they are connected.
7. Release the ZIF connector to which the TouchPad cable is
attached and disconnect the TouchPad cable 3.

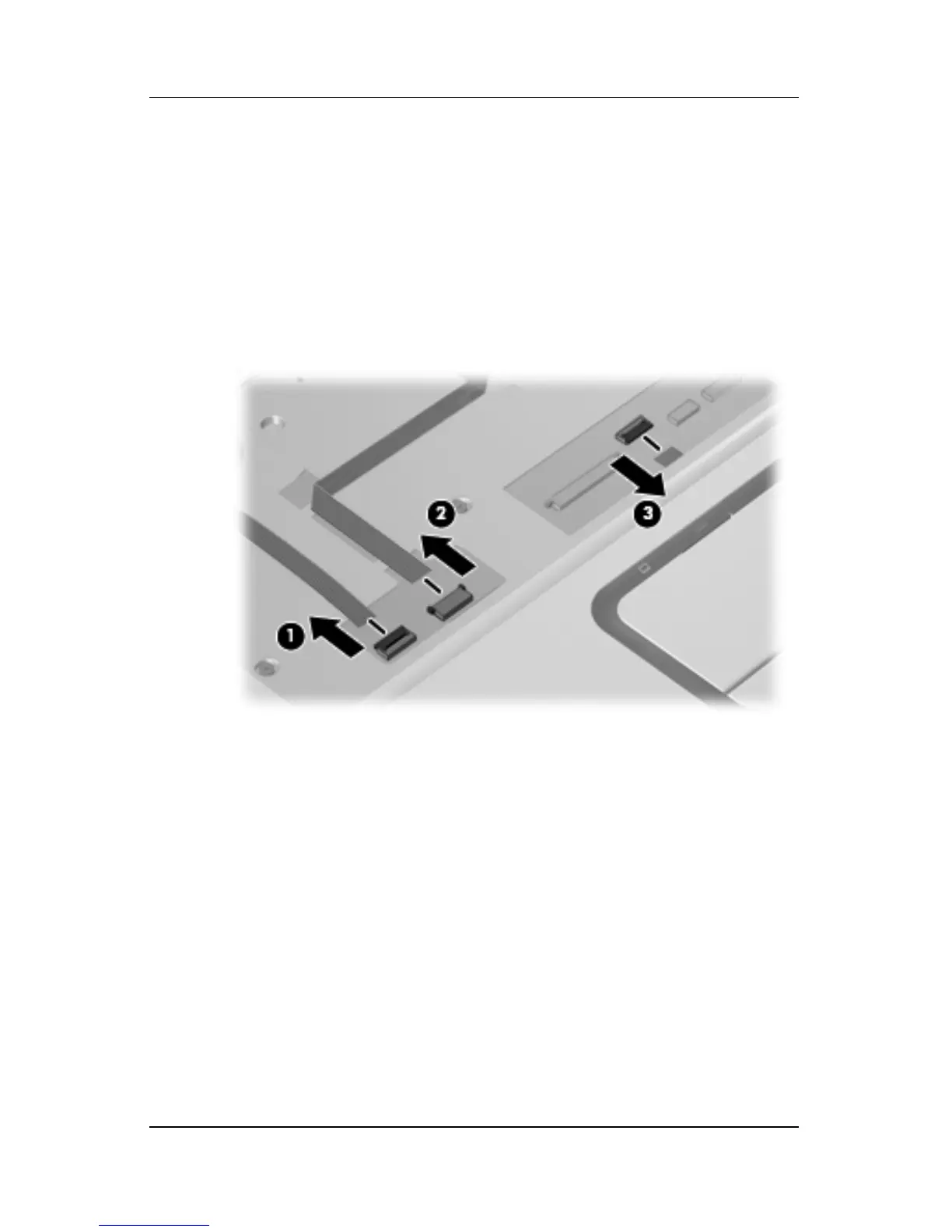

Disconnecting the Top Cover Cables
