Removal and Replacement Procedures
Maintenance and Service Guide 5–55

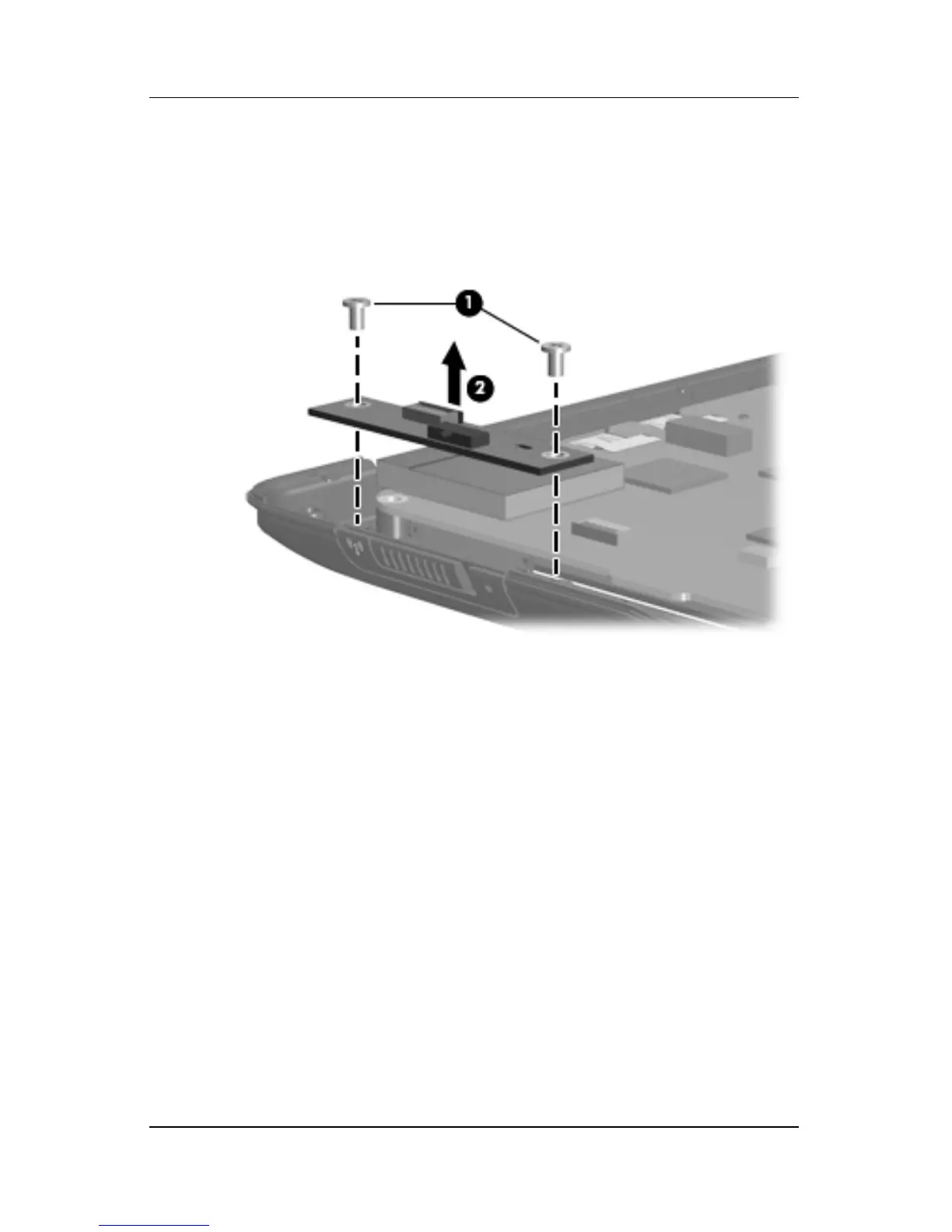

3. Remove the two silver Phillips PM2.5×5.0 screws 1 that
secure the wireless switch board to the base enclosure.
4. Remove the wireless switch board 2.
Removing the Wireless Switch Board
Reverse the above procedure to install the wireless switch board.
