Removal and Replacement Procedures
Maintenance and Service Guide 5–59
2. Disconnect the Bluetooth module cable 1 from the
system board.
✎
The Bluetooth module cable is included with the Bluetooth
module spare part kit and is also included in the Cable Kit,
spare part number 434677-001.
3. Route the Bluetooth module cable 2 under the system board.
4. Remove the two silver Phillips PM2.0×3.0 screws 3 that
secure the Bluetooth module to the base enclosure.
5. Remove the Bluetooth module 4.

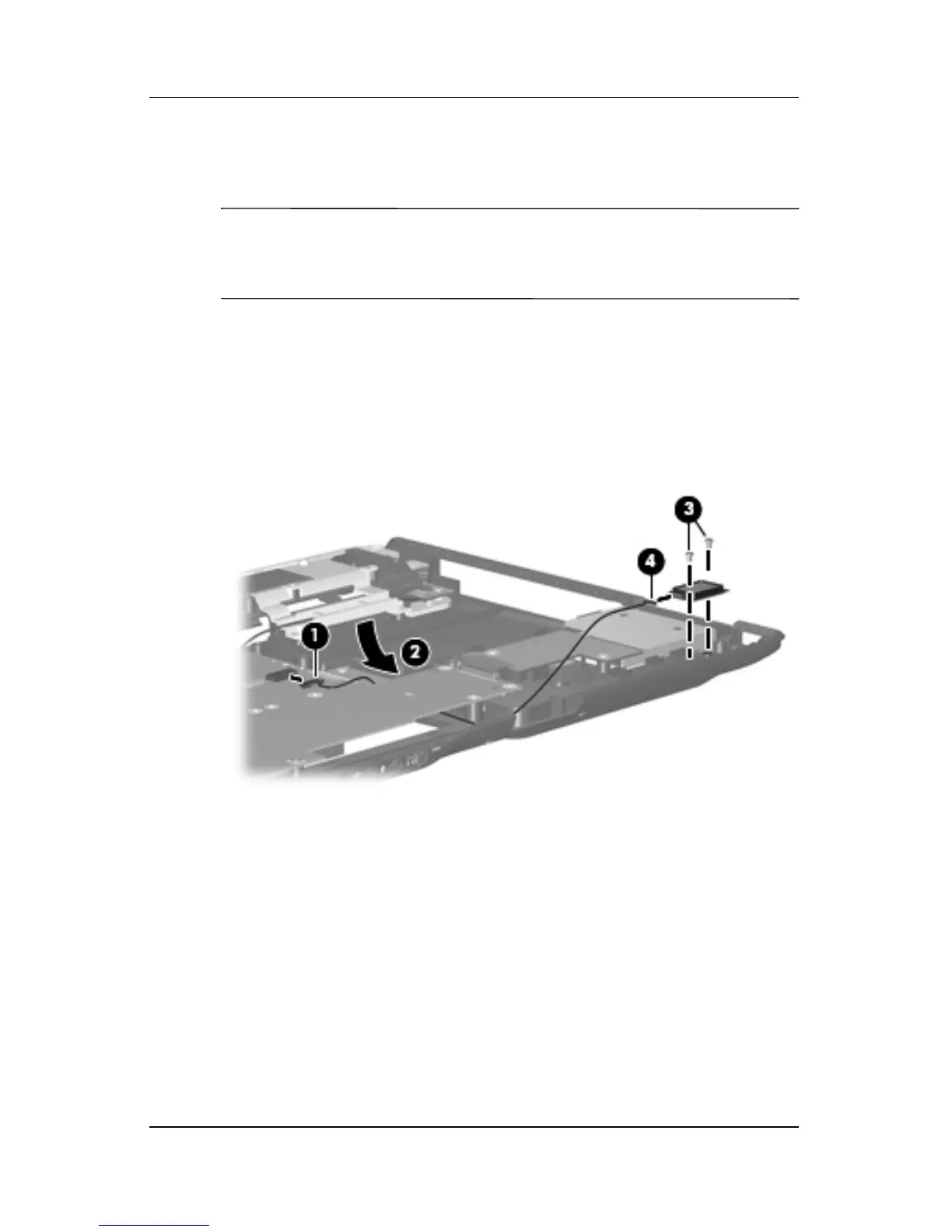

Removing the Bluetooth Module
Reverse the above procedure to install the Bluetooth module.
