Removal and Replacement Procedures
Maintenance and Service Guide 5–61
2. Disconnect the USB/magnetic board cable 1 from the
ExpressCard assembly.
✎
The USB/magnetic board cable is included with the
USB/magnetic board spare part kit and is also included in the
Cable Kit, spare part number 434677-001.
3. Remove the silver Phillips PM2.5×5.0 screw 2 that secures
the USB/magnetic board to the base enclosure.
4. Remove the USB/magnetic board 3.

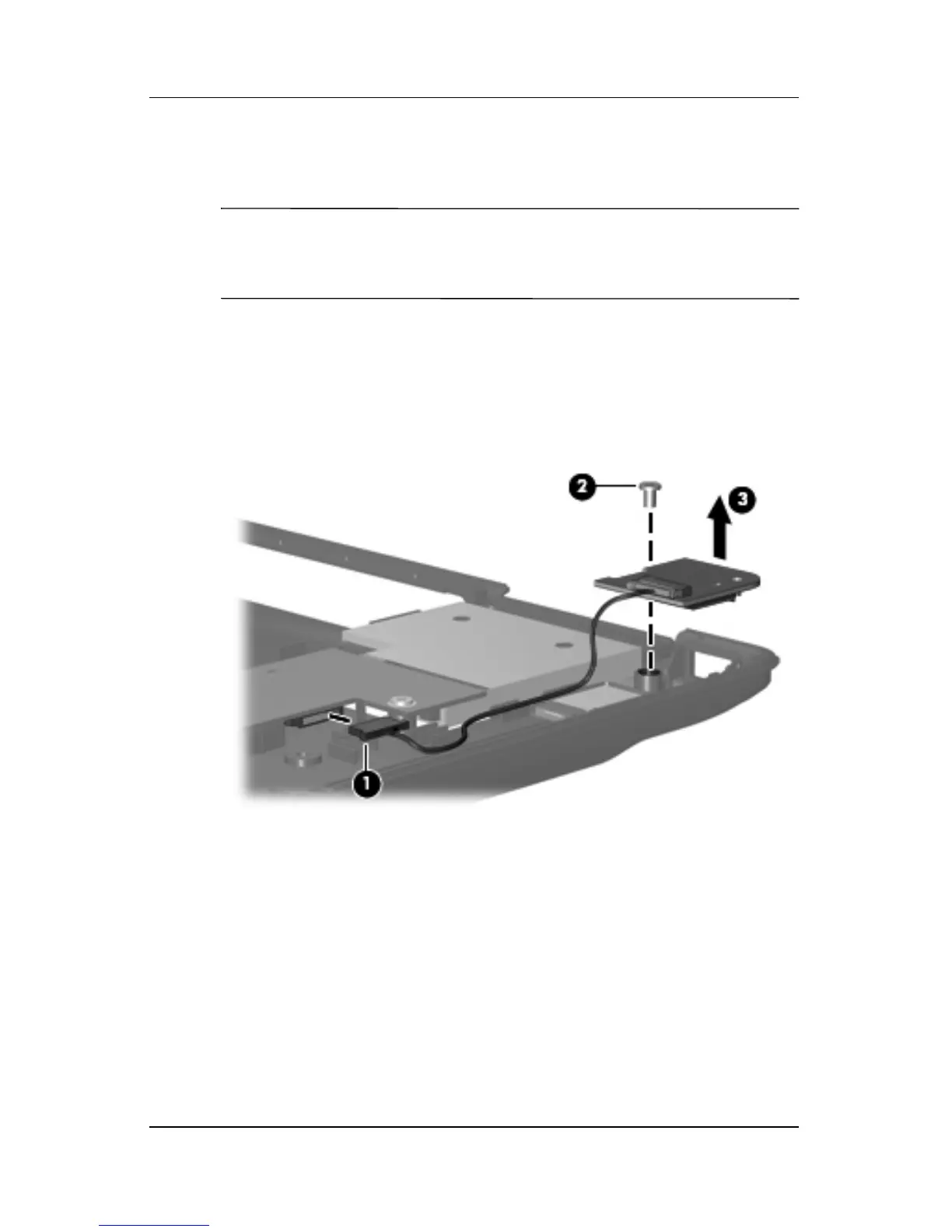

Removing the USB/Magnetic Board
Reverse the above procedure to install the USB/magnetic board.
