5–64 Maintenance and Service Guide
Removal and Replacement Procedures
4. Remove the four silver Phillips PM2.5×5.0 screws 1 that
secure the ExpressCard assembly to the system board.
5. Slide the ExpressCard assembly 2 to the right to disconnect
it from the system board.
6. Remove the ExpressCard assembly 3.

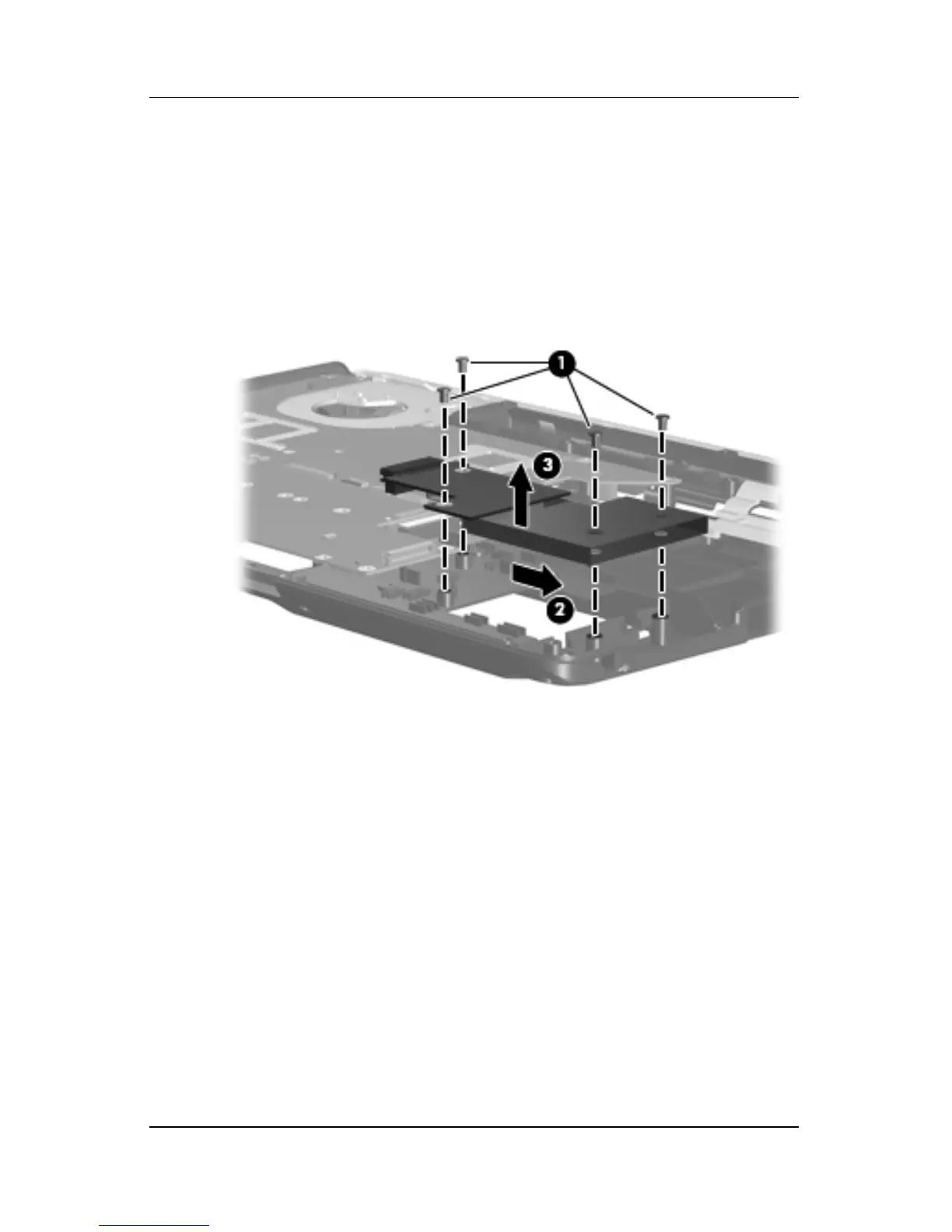

Removing the ExpressCard Assembly
Reverse the above procedure to install the ExpressCard assembly.
