Removal and Replacement Procedures
Maintenance and Service Guide 5–67
4. Turn the computer right-side up with the front toward you.

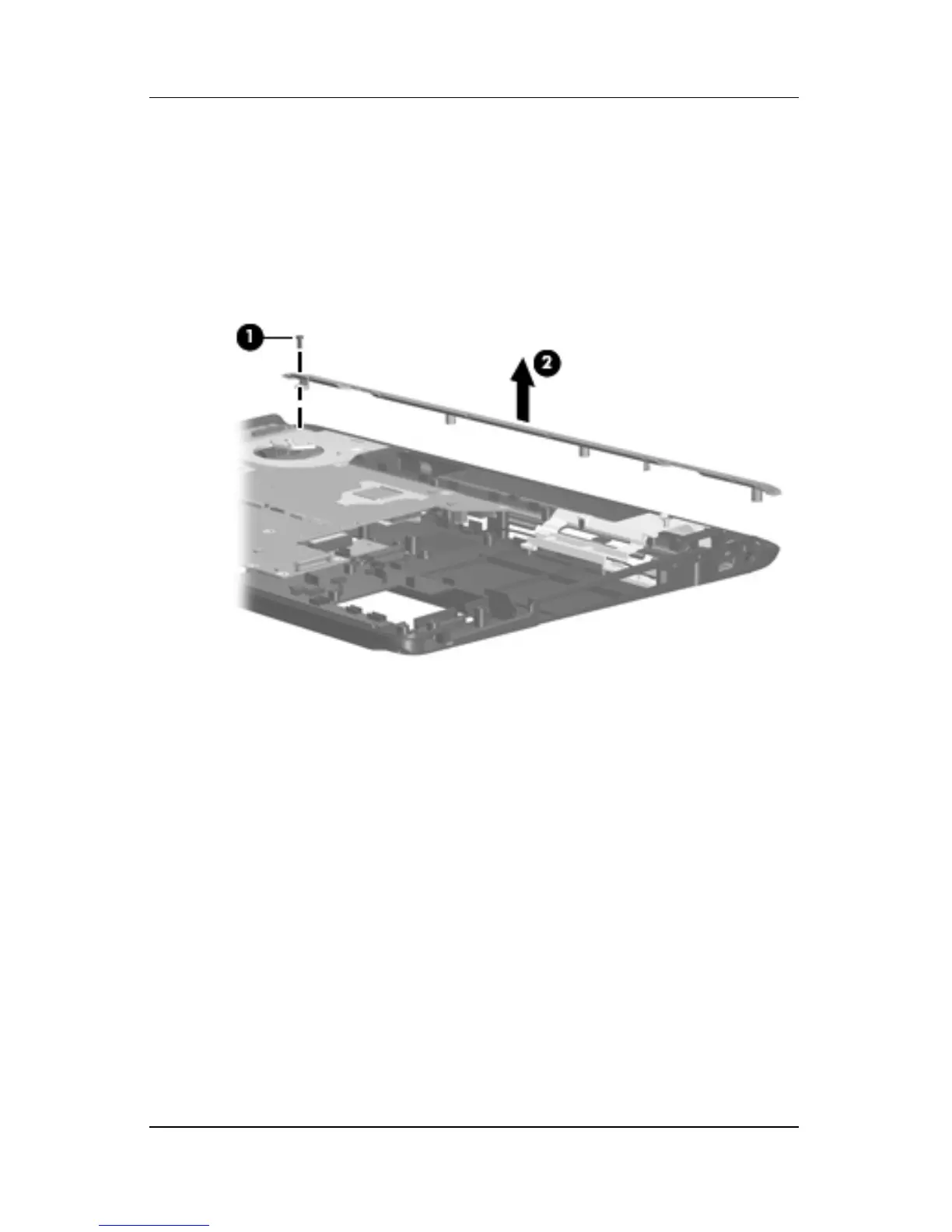

5. Remove the Phillips PM2.5×8.0 screw 1 that secures the top
cover support trim to the computer.
6. Remove the top cover support trim 2.
Removing the Top Cover Support Trim
Reverse the above procedure to install the top cover support trim.
