HP ProCurve 5406zl Access Security Guide

Configuring Port-Based and Client-Based Access Control (802.1X)
General 802.1X Authenticator Operation
No
Yes
New Client
Authenticated
Untagged
VLAN
Configured
On Port ?
RADIUS-
Assigned
VLAN?
Authorized
VLAN
Configured?
Another
(Old) Client
Already Using
Port
?
Are All Old
Clients On
Unauthorized
VLAN?
No
No
Yes
Yes
Assign New Client
to RADIUS-
Specified VLAN
Assign New Client
to Authorized VLAN
Configured on Port
Assign New Client
to Untagged VLAN
Configured On Port
Yes
New
Client VLAN
Same As Old
Client VLAN?
No
Drop All Clients
Using Unauthorized
VLAN
No
Reject New Client
On Port
Yes
Accept New Client
On Port
Yes
No

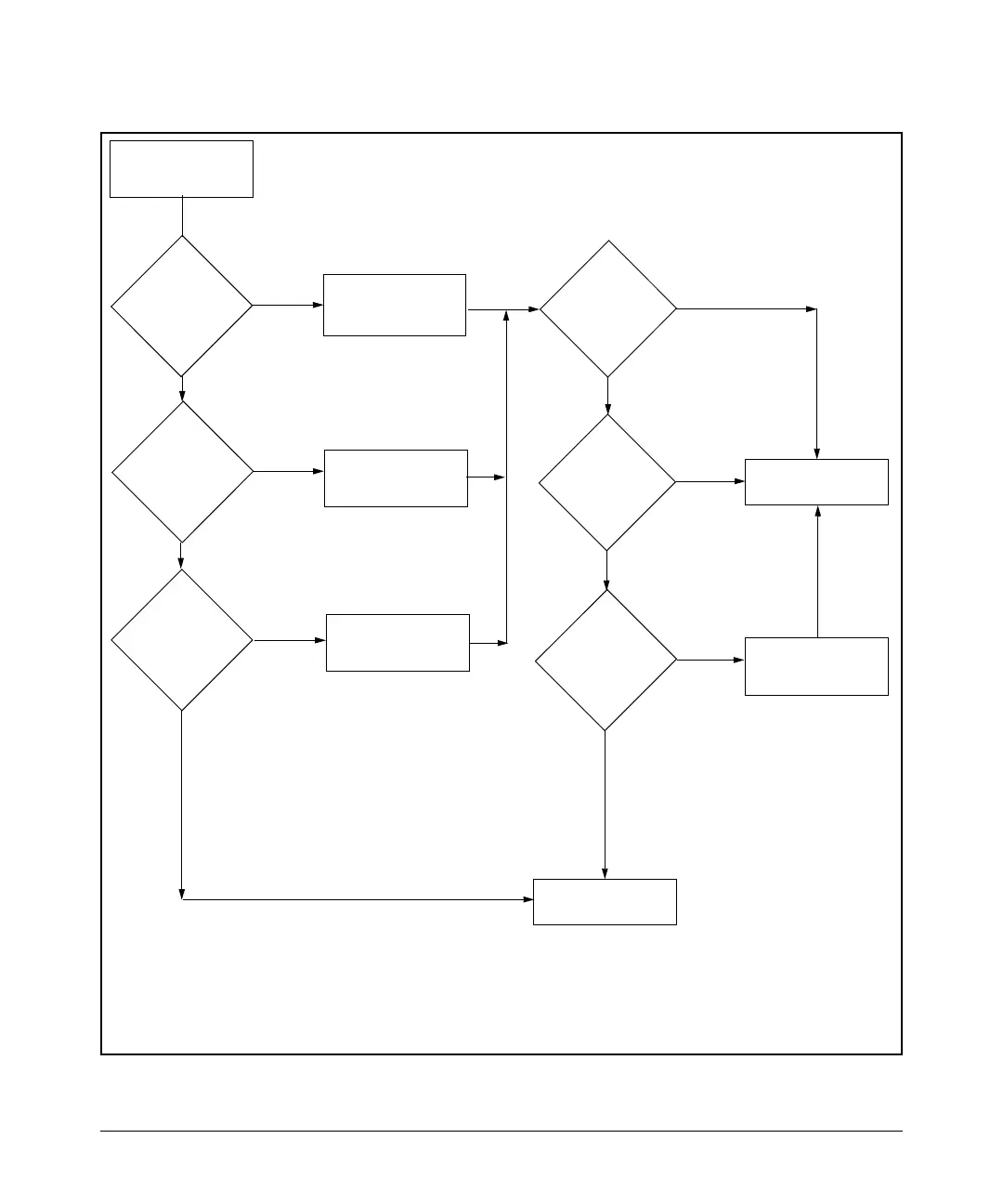

Figure 10-1. Priority of VLAN Assignment for an Authenticated Client
10-11

HP ProCurve 5406zl Specifications

General

Product Name	HP ProCurve 5406zl
Category	Switch
Layer	Layer 3
Operating Temperature	32°F to 131°F (0°C to 55°C)
Operating Humidity	15% to 95% non-condensing
Management	SNMP, CLI
Power Supply	Redundant power supplies (optional)
Memory	128 MB flash, 512 MB SDRAM
