Removal and Replacement Procedures 31

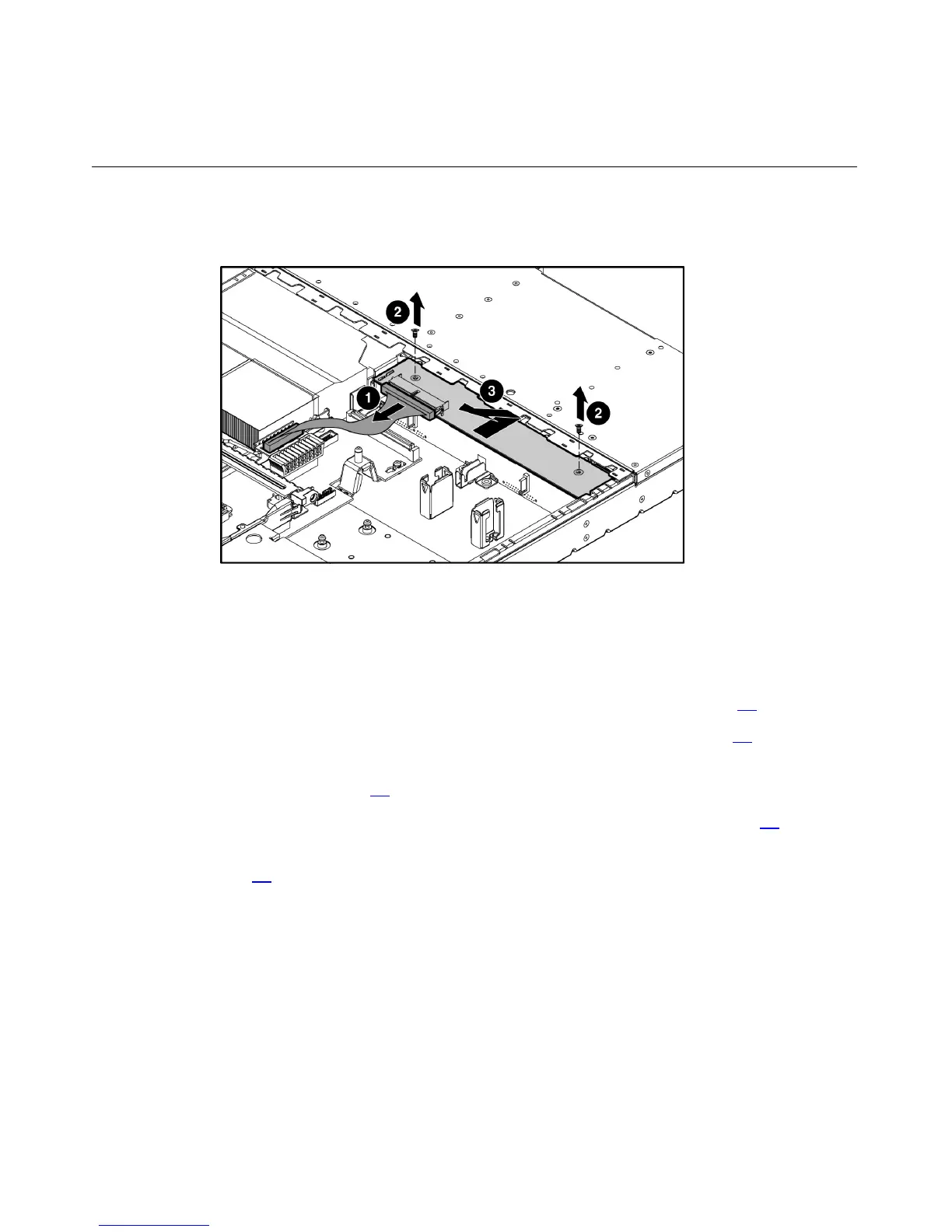

9. Slide the board toward the front edge of the server, lift up, then slide the
board toward the rear of the server to remove the component.
To replace the component, reverse the removal procedure.
SCSI Backplane
1. Power down the server ("Powering Down the Server" on page 16).
2. Remove all hot-plug SCSI hard drives ("Hard Drive" on page 21
).
3. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 17
).
4. Remove the access panel ("Removing the Access Panel" on page 18
).
5. Remove the power supply fan module ("Processor Fan Assembly" on page
29
).
6. Disconnect the cable from the optical device and diskette drive interface
board.
