VESA mounting bracket

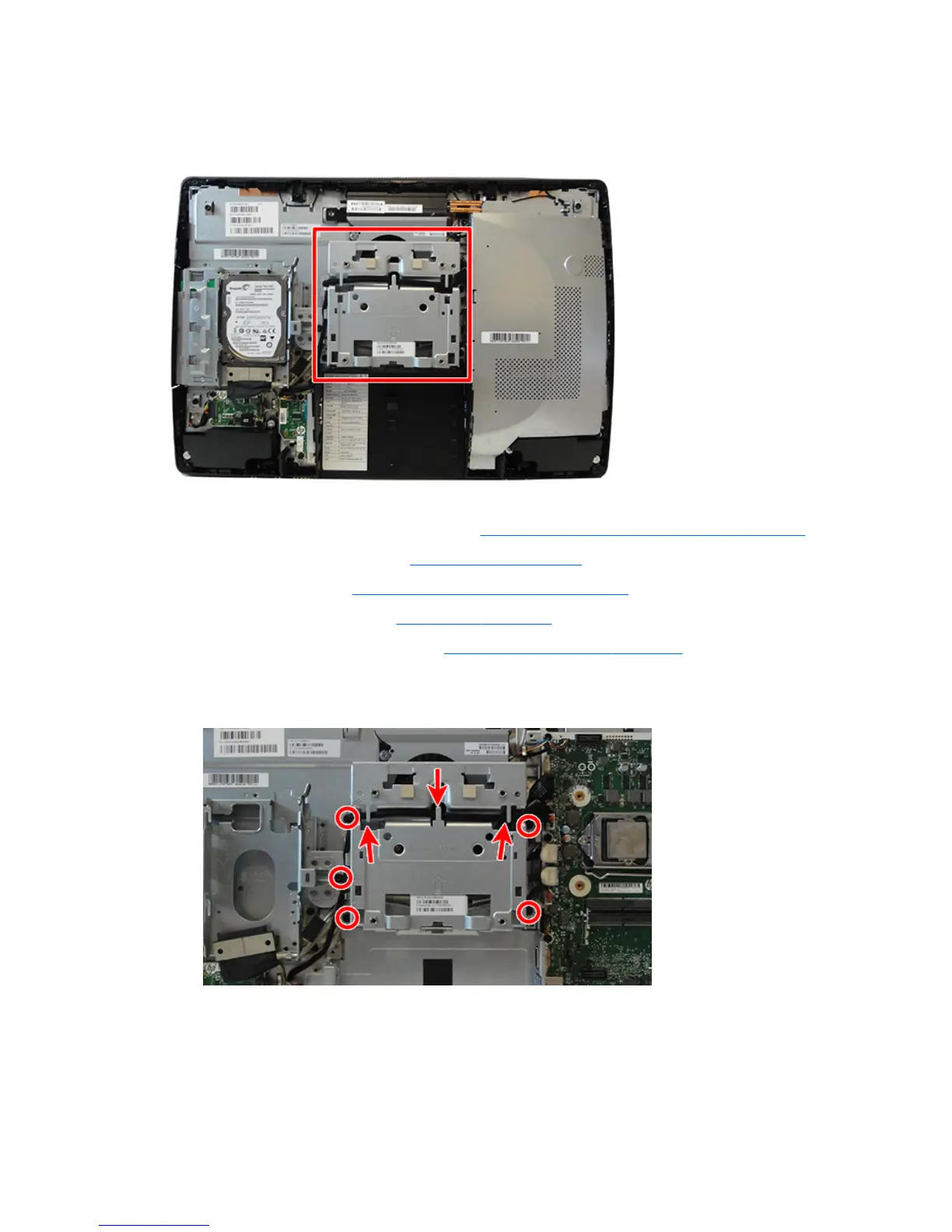

The VESA mounting bracket is located under the stand.
To remove the VESA mounting bracket:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 22).
2. Remove the rear port cover (see Rear port cover on page 23).
3. Remove the stand (see Attaching and removing a stand on page 24).
4. Remove the access panel (see Access panel on page 28).
5. Remove the system board shield (see System board (EMI) shield on page 37).
6. Remove the cables that are routing along the top and left side of the mounting bracket.
7. Remove the ve Torx screws, and then remove the bracket from the computer.
To replace the VESA mounting bracket, reverse the removal procedures.
