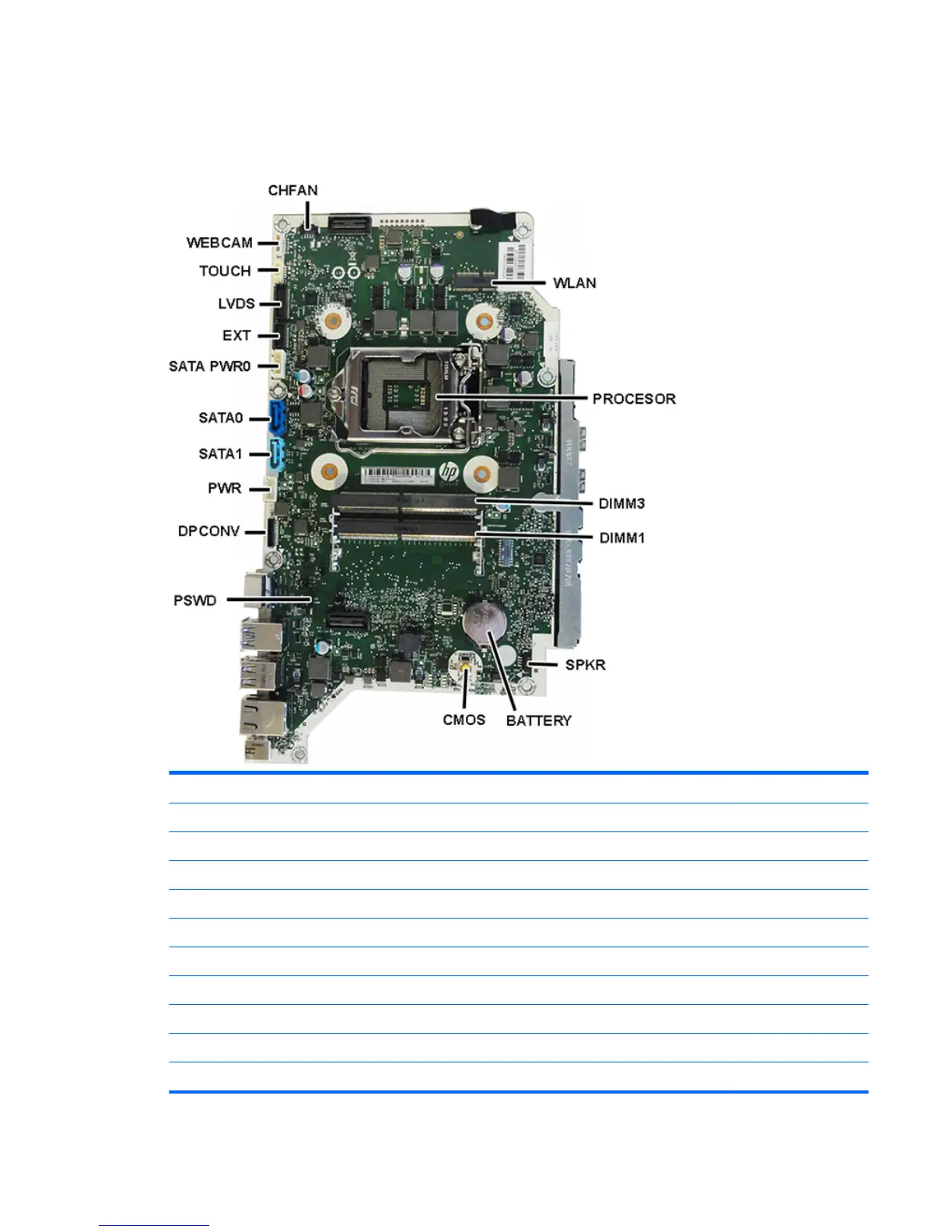

System board callouts
System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
CHFAN Black Fan connector SSD Black M.2 SSD drive
WLAN Black WLAN module PWR White Main power
PROCESSOR Black Processor socket SATA1 Light blue Second hard drive
DIMM3 Black Memory module SATA0 Dark blue Hard drive
DIMM1 Black Memory module SATAPWR0 White Hard drive power
SPKR Black Speaker EXT Black PS2/serial board
BATTERY Black RTC battery LVDS Black Display connector
CMOS Yellow Reset CMOS TOUCH White Touch screen
PSWD Green Clear system passwords WEBCAM White Webcam connector
DPCONV Black Converter board
