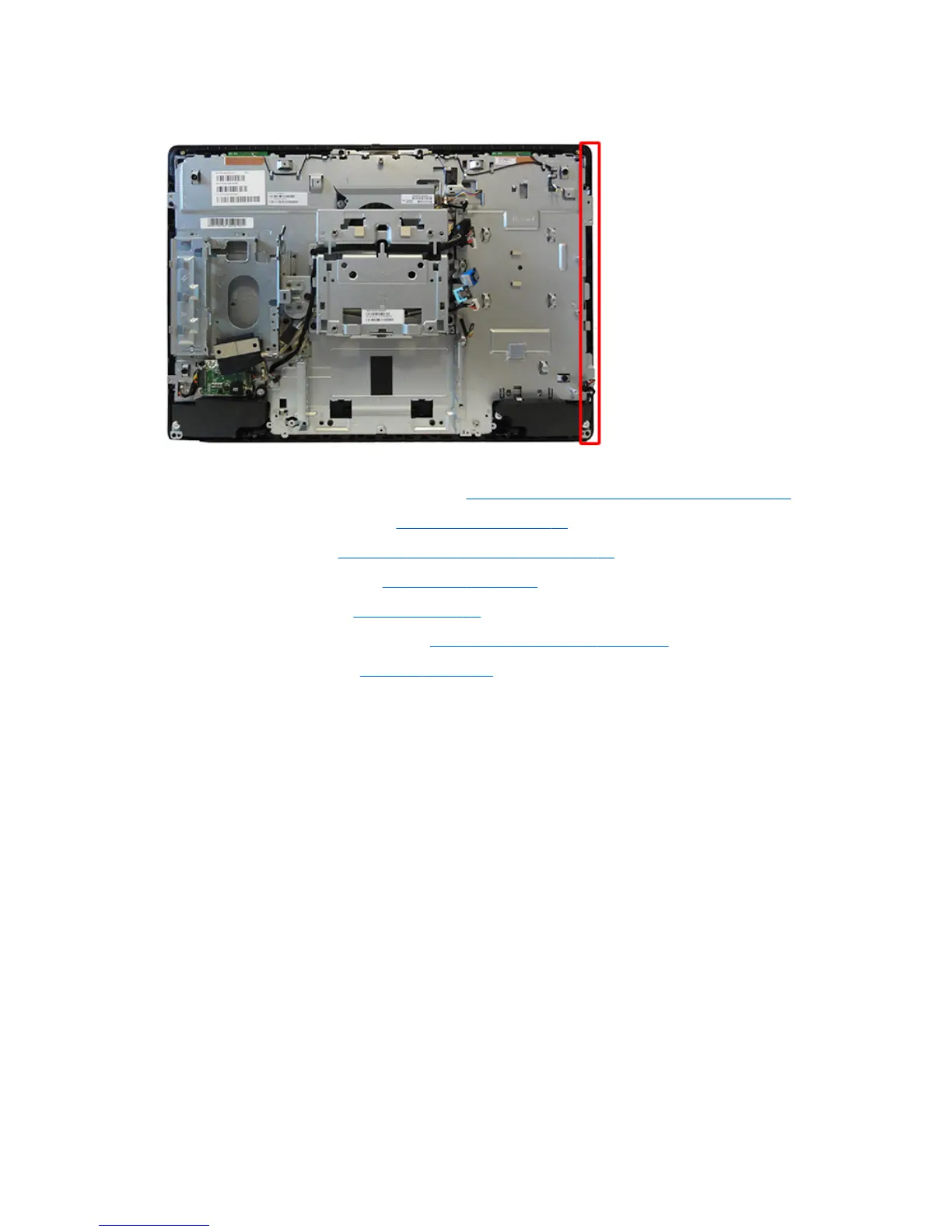

Left trim
To remove the left trim:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 22).
2. Remove the rear port cover (see Rear port cover on page 23).
3. Remove the stand (see Attaching and removing a stand on page 24).
4. Remove the access panel (see Access panel on page 28).
5. Remove the top trim (see Top trim on page 34).
6. Remove the system board shield (see System board (EMI) shield on page 37).
7. Remove the heat sink (see Heat sink on page 46).
8. Remove the two Phillips screws that secure the left trim to the computer.
62 Chapter 4 Removal and Replacement Procedures
