Power connector

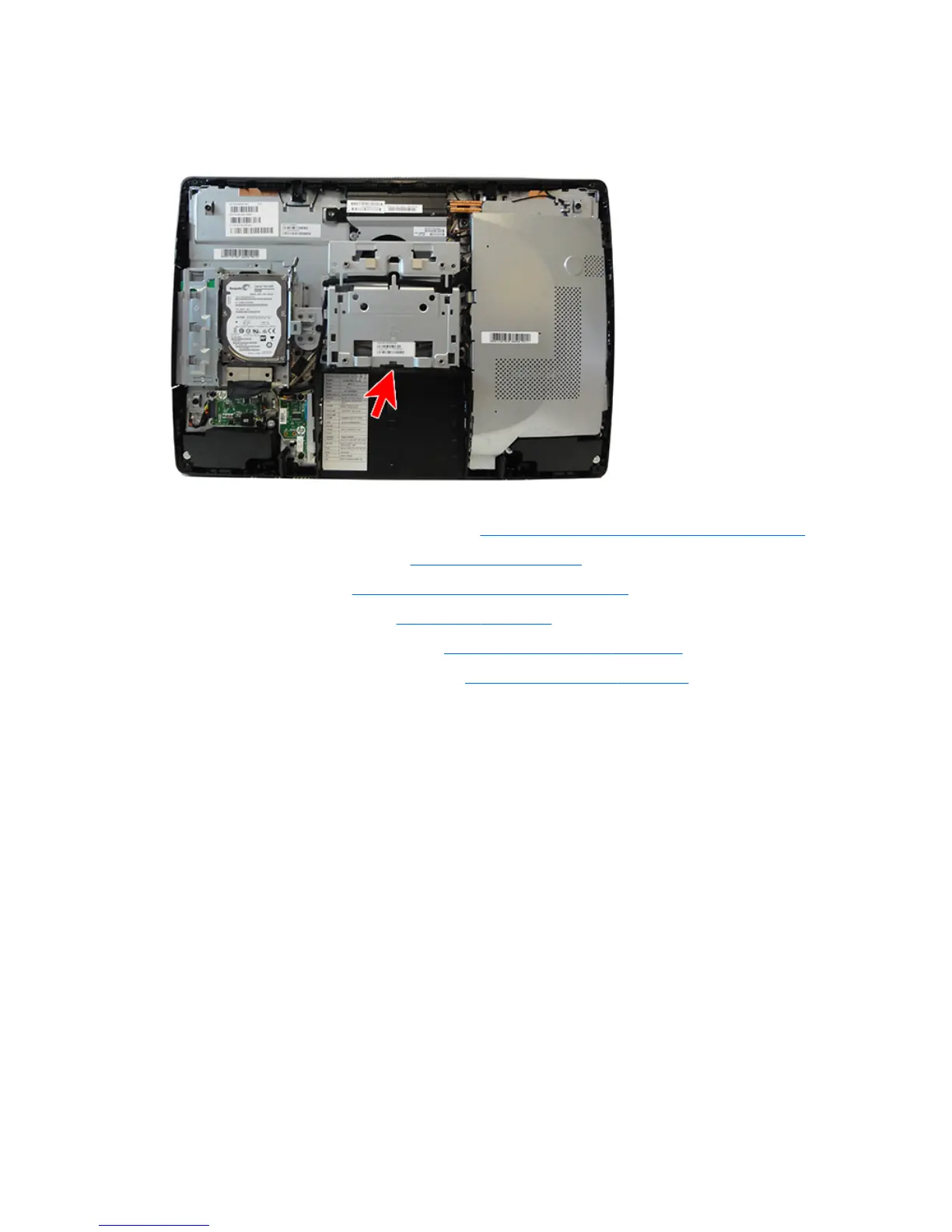

The power connector is located in the middle of the computer under the VESA mounting plate.
To remove the power connector:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 22).
2. Remove the rear port cover (see Rear port cover on page 23).
3. Remove the stand (see Attaching and removing a stand on page 24).
4. Remove the access panel (see Access panel on page 28).
5. Remove the system board shield (see System board (EMI) shield on page 37).
6. Remove the VESA mounting bracket (see VESA mounting bracket on page 55).
7. Disconnect the power cable from the system board connector (1).
Power connector 57
