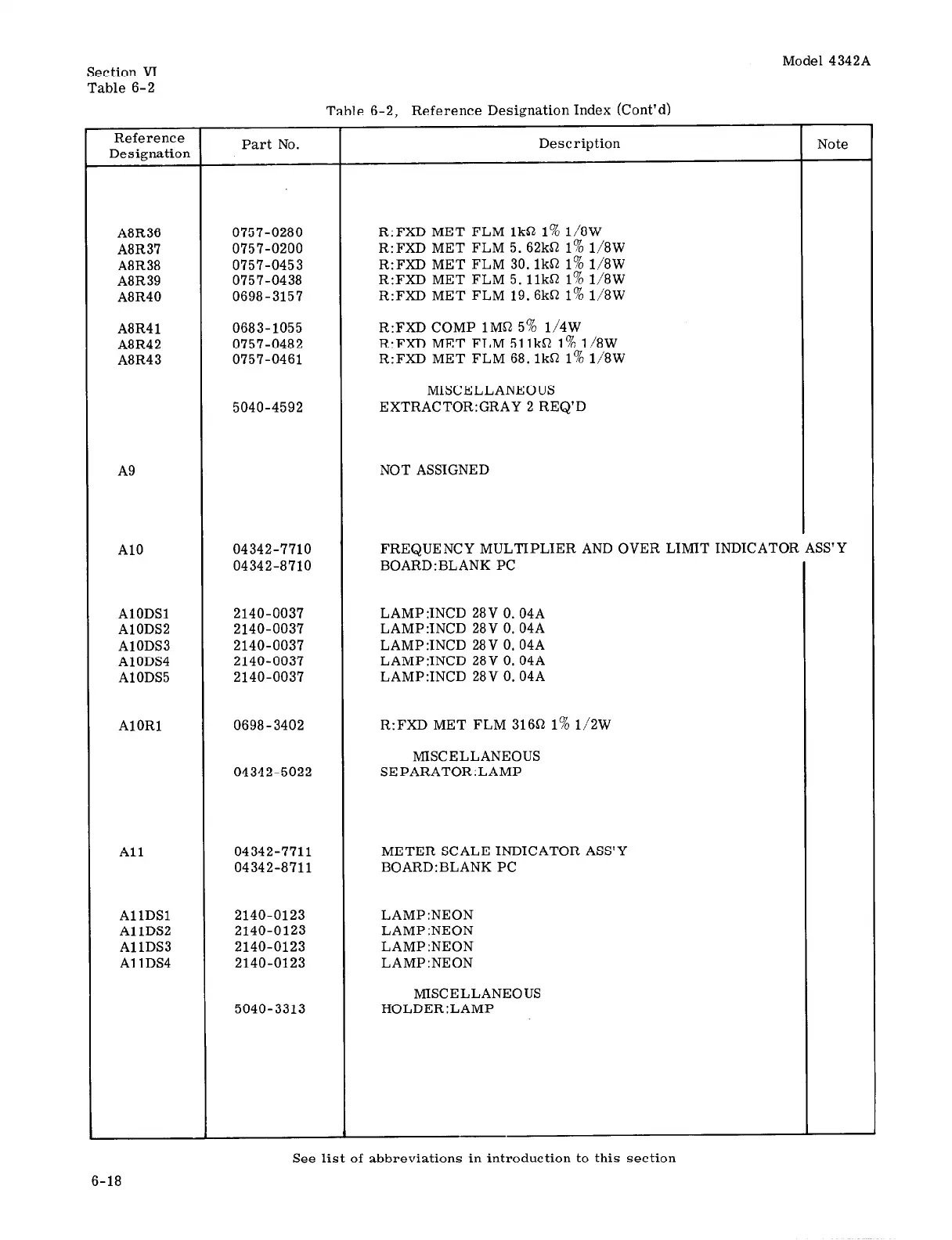

Section VI
Model 4342A
Table 6-2
Reference
Designation
Table 6-2, Reference Designation Index (Cont’d)
Part No. Description
Note
A8R36
A8R37
A8R38
A8R39
A8R40
A8R41
A8R42
A8R43
0757-0280
0757-0200
0757-0453
0757-0438
0698-3157
0683-1055
0757-0482
0757-0461
5040-4592
R:FXD MET FLM lkS2 1% 1/8W
R:FXD MET FLM 5.62kfl 1% 1/8W
R:FXD MET FLM 30.lkS2 1% 1/8W
R:FXD MET FLM 5. llkfl 1% 1/8W
R:FXD MET FLM 19.6kS2 1% 1/8W
R:FXD COMP 1Ma 5% 1/4W
R:FXD MET FLM 511kR 1% 1/8W
R:FXD MET FLM 68. lkn 1% 1/8W
MISCELLANEOUS
EXTRACTOR:GRAY 2 REQ’D
A9
NOT ASSIGNED
A10
AlODSl
AlODSX
AlODS3
AlODS4
AlODS5
AlORl
04342-7710
04342-8710
2140-0037
2140-0037
2140-0037
2140-0037
2140-0037
0698-3402
04342-5022
FREQUENCY MULTIPLIER AND OVER LIMIT INDICATOR ASS’Y
BOARD:BLANK PC
LAMP:INCD 28V 0.04A
LAMP:INCD 28V 0.04A
LAMP:INCD 28V 0.04A
LAMP:INCD 28V 0.04A
LAMP:INCD 28V 0.04A
R:FXD MET FLM 3160 1% 1/2W
MISCELLANEOUS
SEPARATOR.LAMP
All
Al lDS1
Al lDS2
Al lDS3
Al lDS4
04342-7711
04342-8711
2140-0123
2140-0123
2140-0123
2140-0123
5040-3313
METER SCALE INDICATOR ASS’Y
BOARD:BLANK PC
LAMP:NEON
LAMP :NEON
LAMP :NEON
LAMP:NEON
MISCELLANEOUS
HOLDER:LAMP
6-18
See list of abbreviations in introduction to this section
