HP Q METER 4342A - Exploded View of Q Range Attenuator Assy

Section VI
Model 4342A
Figure 6-3
Item No. Part No.
Q’ty
Description Note
1 0400-0011 2 GROMMET:VINYL .375 ID
2 04342-1046 1 COVER:SHIELD
3
2360-0115 2 SCREW:MACH SST 6-32 X .312
4
04342-7513 1 SWITCH ASS’Y:Q RANGE
5 04342-1045 1 CASE :SHIELD
6 0624-0077 2 SCREW:TAPPING 4-40 THD
7 2190-0008 1 WASHER:LOCK EXT PHS. BRZ
8
2360-0193 1 SCREW:MACH SST 6-32 X .250
9 3101-0262 4 SWITCH:PUSHBUTTON; Q RANGE
10 3101-0261 1 SWITCH :PUSHBUTTON; dQ RANGE

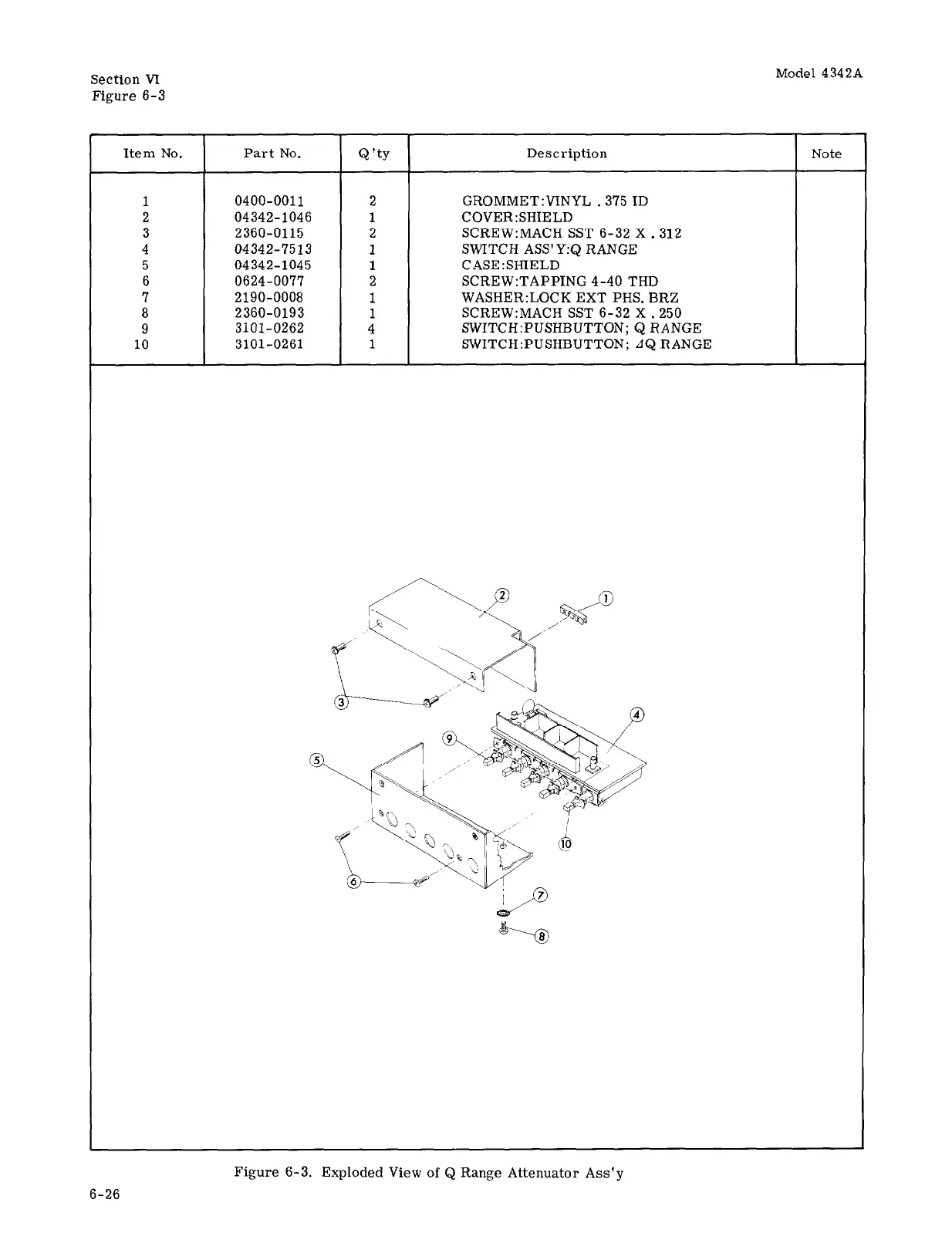

Figure 6-3. Exploded View of Q Range Attenuator Ass’y
6-26
