HP Q METER 4342A User Manual

Section VI
Figure 6-5
Item No.
1
2
3
4
5
6
7
8
9
10
Model 4342A
Part No.
04342-5032
04342-8522
04342-5137
3050-0016
2360-0121
2360-0121
3050-0016
04342-5138
04342-8523
04342-5033
Q’ty
1
1
1
1
1
:
1
1
1
Description
PULLEY:MOLDED
SPRING:COIL
DRUM:MOLDED
WASHER:FLAT BRASS .147 ID
SCREW:MACH SST 6-32 X .500
SCREW:MACH SST 6-32 X .500
WASHER:FLAT BRASS .147 ID
DRUM:MOLDED
SPRING:COIL
PULLEY:MOLDED
Note
6-28

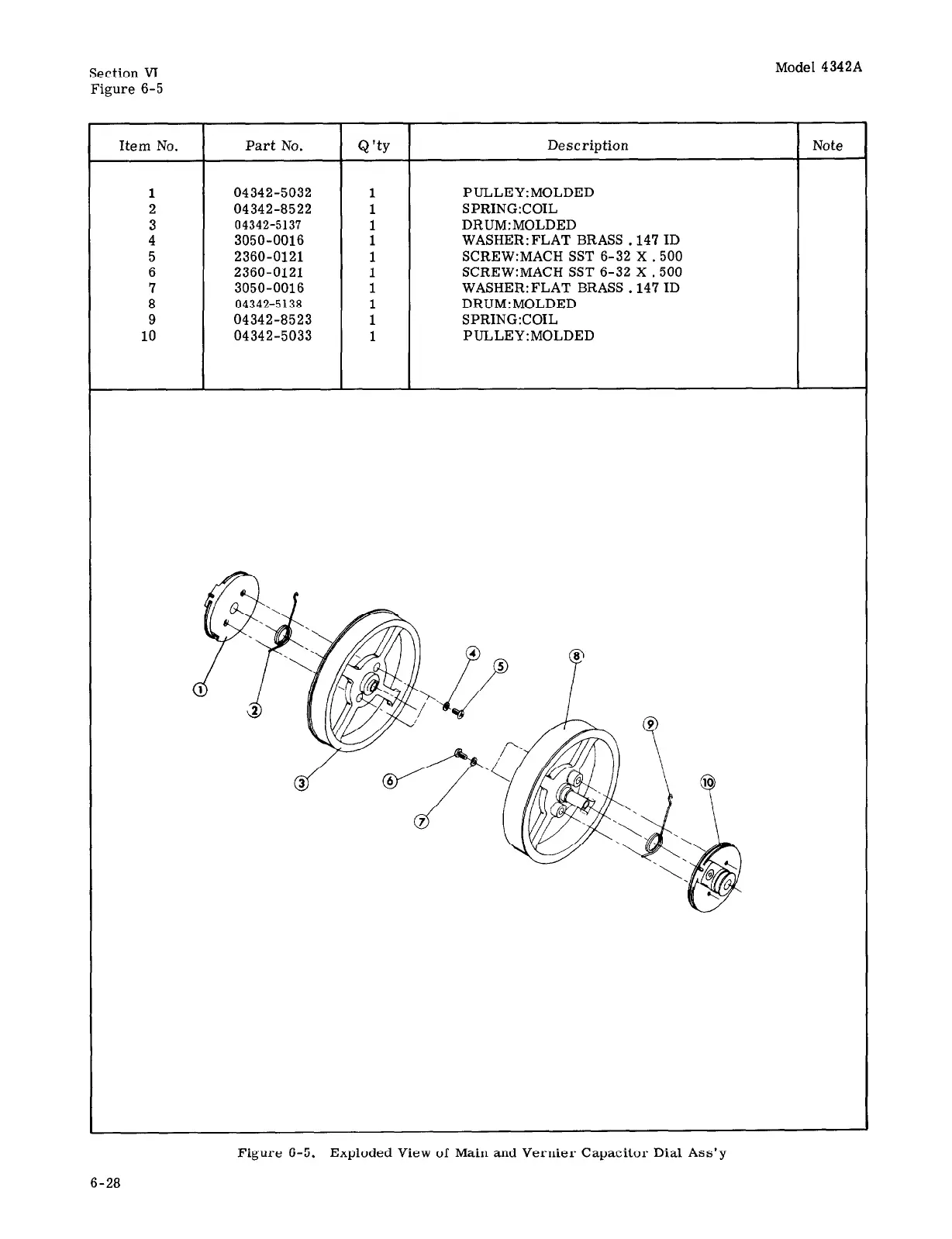

Figure 6-5. Exploded View of Main and Vernier Capacitor Dial Ass’y
