HP Q METER 4342A User Manual

Model 4342A
Section VI
Figure 6-6
Item No.
Part No.
Q'ty
Description Note
1
0510-0045 1
RING:RET EXT .500 DIA E
TYPE
2 04342-1037
1 ANGLE :L
3 04342-3044
1 SHAFT:LEVER
4 0510-0045
7 RING:RET EXT .500 DIA E
TYPE
5 3050-0253
7 WASHER:SPRING STL .250
ID
6
04342-3043 1
BOSS
7 04342-3042
6 BOSS
8 04342-1038
7 LEVER:J
9 04342-3041
7 loss (ACTUATOR)
10 04342-1039
7 LEVER:L
11 04342-1037
1 ANGLE :L
12 0510-0045
1 RING:RET EXT _ 500 DIA E
TYPE

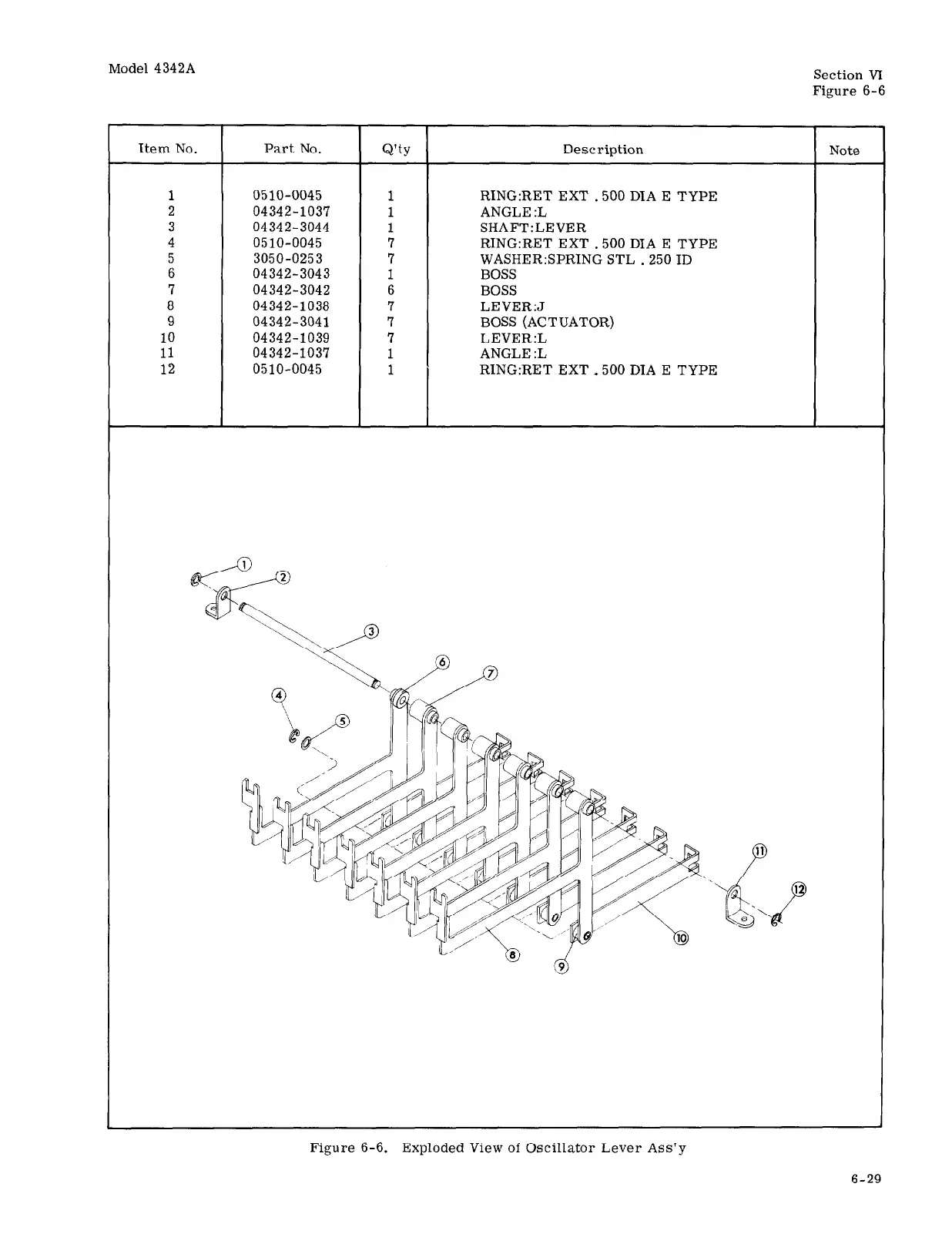

Figure 6-6. Exploded View of Oscillator Lever Ass’y
6-29
