HP Q METER 4342A - Exploded View of Handle Section

Section VI
Figure 6-8
Model 434 2A
Item No. Part No.
Q’ty
Description Note
1 04342-1031 1
BRACKET:HANDLE Hl
2 2510-0043 2 SCREW:MACH SST 8-32
X. 312
3 04342-1033 1
BRACKET:HANDLE H3
4 04342-1034 1 PLATE :HANDLE
5 2510-0120 2
SCREW:MACH SST 8-32 X .312
6 04342-3037
1 HANDLE ASS’Y
7 04342-1034
1 PLATE:HANDLE
8 2510-0120 2
SCREW:MACH SST 8-32 X .312
9 04342-1032 1
BRACKET:HANDLE H2
10 2510-0043 2 SCREW:MACH SST 8-32
X . 312

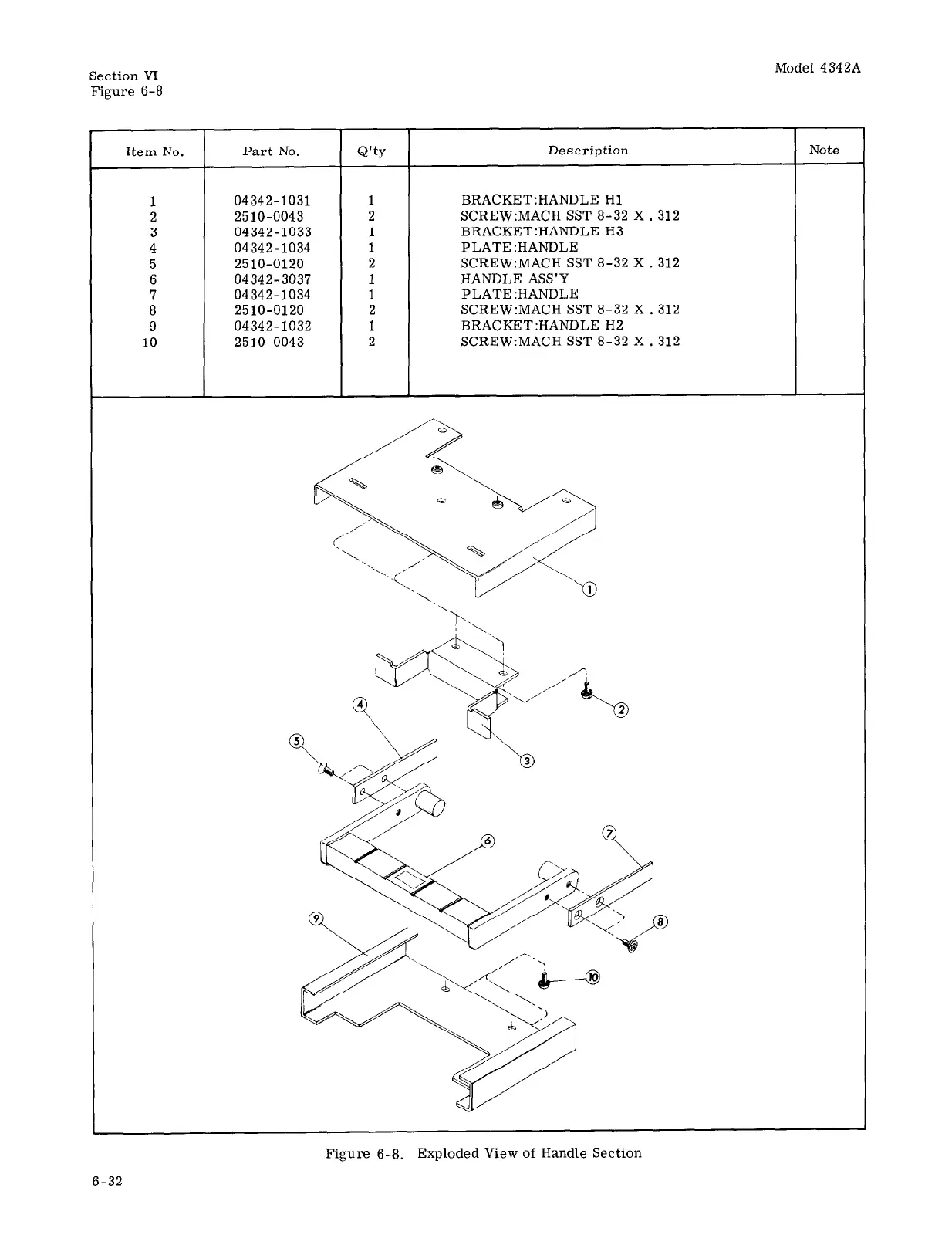

Figure 6-8.
Exploded View of Handle Section
