Model 4342A
Section VI
Figure 6-7
Item No. Part No.
Q’ty
Description Note
1
7120-0480
1
2
04342-1024
1
3 1251-0083 2
4 1410-0052 1
5 1400-0090 1
6 0361-0008
4
7 1400-0084 1
a 2420-0001 4
9 2190-0008 4
10
5040-0447 2
11 0361-0011 2
12
2450-0002
2
13 1251-2357 1
14
2190-0008 4
15 2420-0001 4
16 5040-0447 2
17 5040-4528 4
la
2950-0001
2
19 2950-0001 1
20 2190-0016 2
21 0360-1190 2
22 2100-0732
1
23 2950-0038
1
24 2190-0037 1
25 2950-0039 1
26 2190-0016 1
27 3101-1234 1
28
3101-0011 1
29 0360-0015 2
30 2450-0002 2
31
3050-0066
4
PLATE:SERIAL NUMBER
PANEL :REAR
CONNECTOR:BNC FEMALE
SCREW:BUSHING
WASHER:FUSE HOLDER .500 ID
RIVET SEMITUB ALUM
FUSE HOLDER:EXTRACTOR POST TYPE
NUT:HEX SNP 6-32 X . 312 WD
WASHER:LOCK EXT PH BRZ
FOOT:REAR
RIVET SEMITUB ALUM l/a DIA
SCREW:MACH 6-32 X .25
CONNECTOR:POWER 3-PIN MALE
WASHER:LOCK EXT PH BNZ
NUT:HEX SNP 6-32 . 312 WD
FOOT REAR
GUIDE:PC BOARD GRAY
NUT:HEX BRS 3/a X ,50 AF NI-P
NUT:HEX BRS 3/a X .50 AF NI-P
WASHER:LOCK INT 3/a PH BRZ
TERMINALSOLDER LUG. 500 WD
R:VARIABLE COMP LIN 5OOQ 10% 2W
NUT:HEX 5-24 X .6875
WASHER:LOCK INT NO . l/2.789 OD STL CAD
WASHER:LOCK INT NO . l/2.789 PH BRZ
WASHER:LOCK INT 3/a PH BRZ
SWITCH:SLIDE DPDT 115,‘23OV
SWITCH:SLIDE DPDT 0.5 AMP 125 VDC
BOARD:TERMINAL
SCREW:MACH 6-32 X .25
WASHER:FLAT BRASS t 147 ID

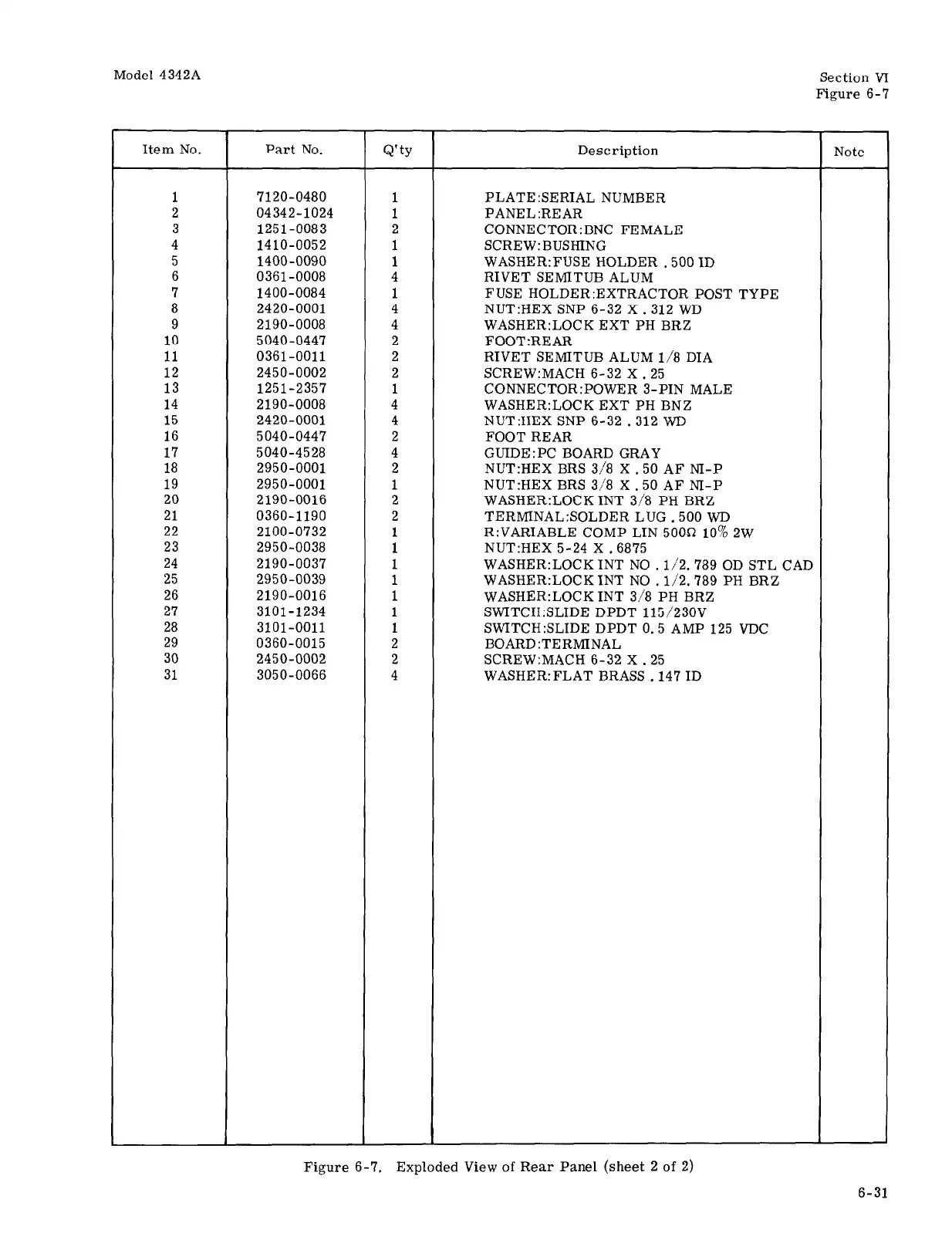

Figure 6-7. Exploded View of Rear Panel (sheet 2 of 2)
6-31
