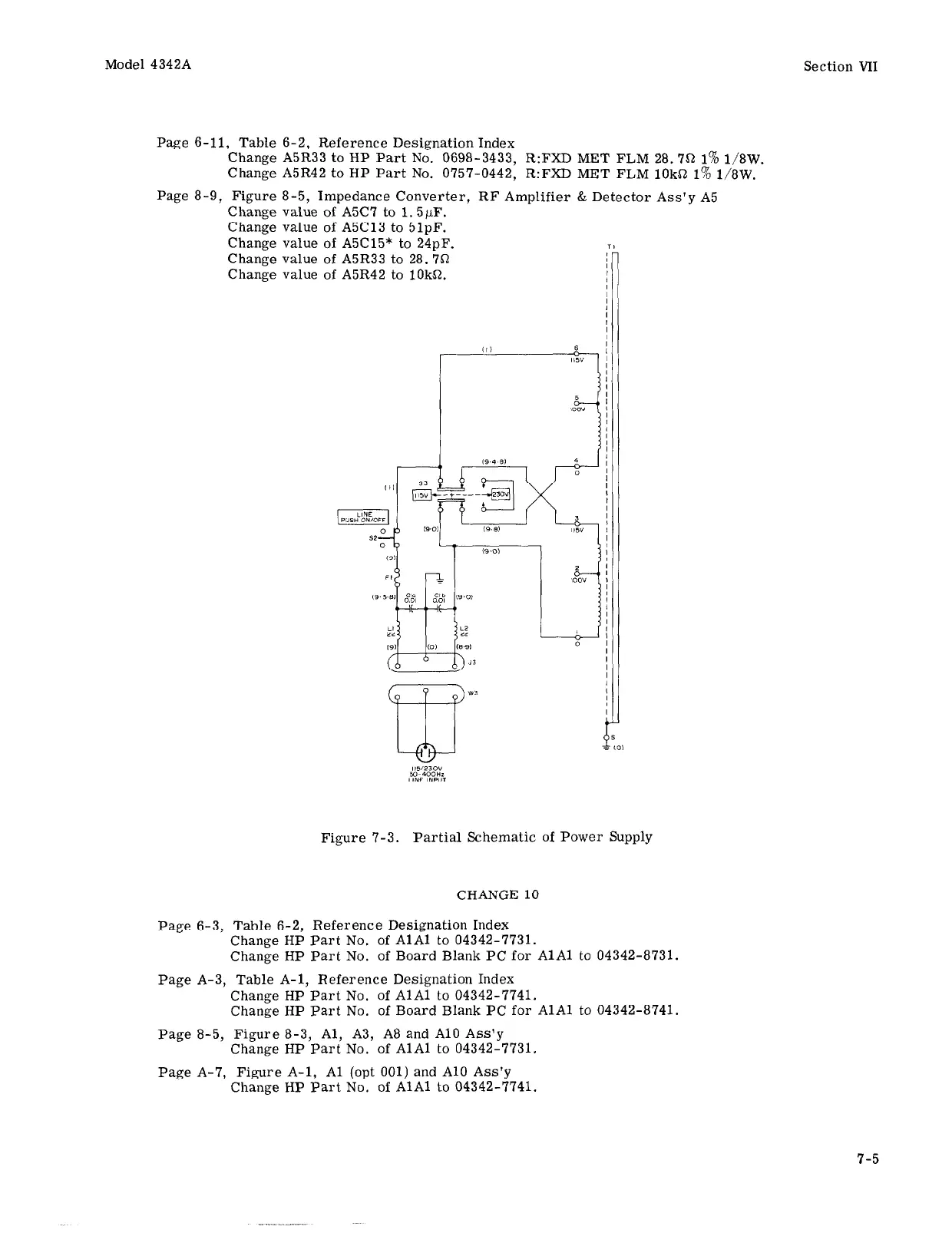

Model 4342A Section VII
Page 6-11, Table 6-2, Reference Designation Index
Change A5R33 to HP Part No. 0698-3433, R:FXD MET FLM 28.7fi 1% 1/8W.
Change A5R42 to HP Part No. 0757-0442, R:FXD MET FLM lOkS2 1% 1/8W.
Page 8-9, Figure 8-5, Impedance Converter, RF Amplifier & Detector Ass’y A5
Change value of A5C7 to 1.5pF.
Change value of A5C13 to 51pF.
Change value of A5C15* to 24pF. T
Change value of A5R33 to 28. 7a
Change value of A5R42 to 10kSZ.
Figure 7-3.
Partial Schematic of Power Supply
CHANGE 10
Page 6-3, Table 6-2, Reference Designation Index
Change HP Part No. of AlAl to 04342-7731.
Change HP Part No. of Board Blank PC for AlAl to 04342-8731.
Page A-3, Table A-l, Reference Designation Index
Change HP Part No. of AlAl to 04342-7741.
Change HP Part No. of Board Blank PC for AlAl to 04342-8741.
Page 8-5, Figure 8-3, Al, A3, A8 and A10 Ass’y
Change HP Part No. of AlAl to 04342-7731.
Page A-7, Figure A-l, Al (opt 001) and A10 Ass’y
Change HP Part No. of AlAl to 04342-7741.
7-5
