Section VIII
Figure 8-l
Model 4342A
I I
l---1
L -- J
0
@
SYMBOLS
FRONT PANEL
REAR PANEL
KNOB CONTROL
SCREWDRIVER ADJUST
MAIN SIGNAL PATH
FEEDBACK PATH
CONDUCTING ELEMENT
WIPER MOVES TOWARD “CW” WHEN
CONTROL IS ROTATED CLOCKWISE
POWER LINE GROUND
CIRCUIT
COMMON GROUND
TEST POINT
“AND” GATE
INHIBIT GATE
“OR” GATE
WAVEFORMS SHOWN ARE TYPICAL
SWITCH DESIGNATIONS
A3SlBR(2-l/2)
‘200;
0 2-l/2
0
:O@:
0 0
0 0
0
A3Sl
SWITCH Sl WITHIN ASSEMBLY A3
B
R
2ND WAFER FROM FRONT
(A=1 ST, ETC)
REAROFWAFER
(F-FRONT)
(2-l/2)
TERMINAL LOCATION (24)
(VIEWED FROM FRONT)
REFERENCE DESIGNATIONS
REFERENCE DESIGNATIONS WITHIN ASSEMBLIES ARE ABBREVIATED.
ADD ASSEMBLY NUMBER TO ABBREVIATION FOR COMPLETE DESCRIPTION.
ASSEMBLY ABBREVIATION
COMPLETE DESCRIPTION
A25
Cl A25Cl
A25Al
CR1
A25Al CR1
NO PREFIX J3 J3
Assembly Sfk. No. Assembly Sernch No.
Assembly
Assembly (includes AXA,
(used to documrnr
Nvmbcr N~~~~
Assembly, dl&S,
A-AA
A25 POWER SUPPLY ASSYc05100-6007)
SERIES 330
----------s--m
t6.3” suppl,rd
lrum ,3 ,o P,n 6
of P, 0”
As.wmb,y A5

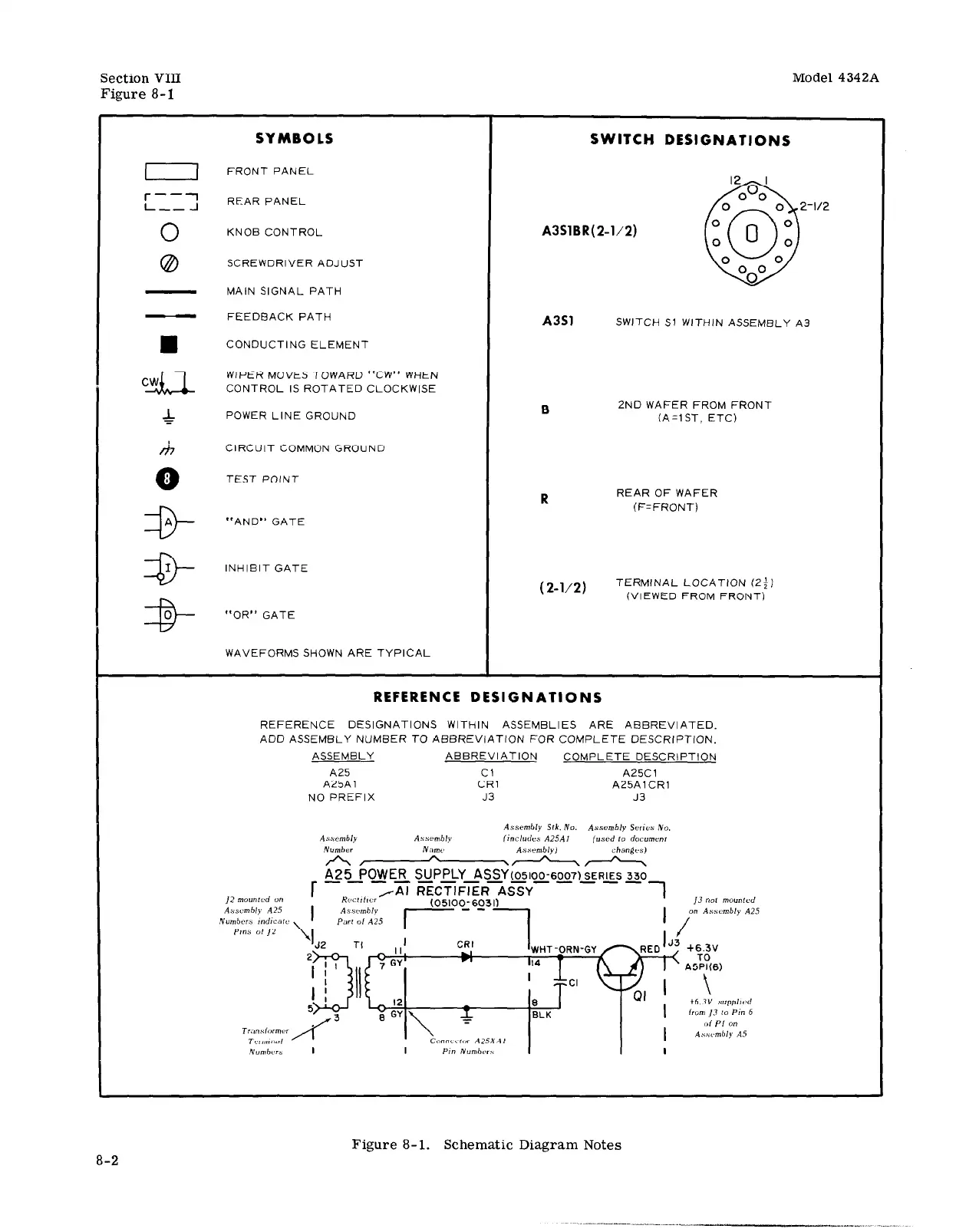

Figure 8-l.
Schematic Diagram Notes
