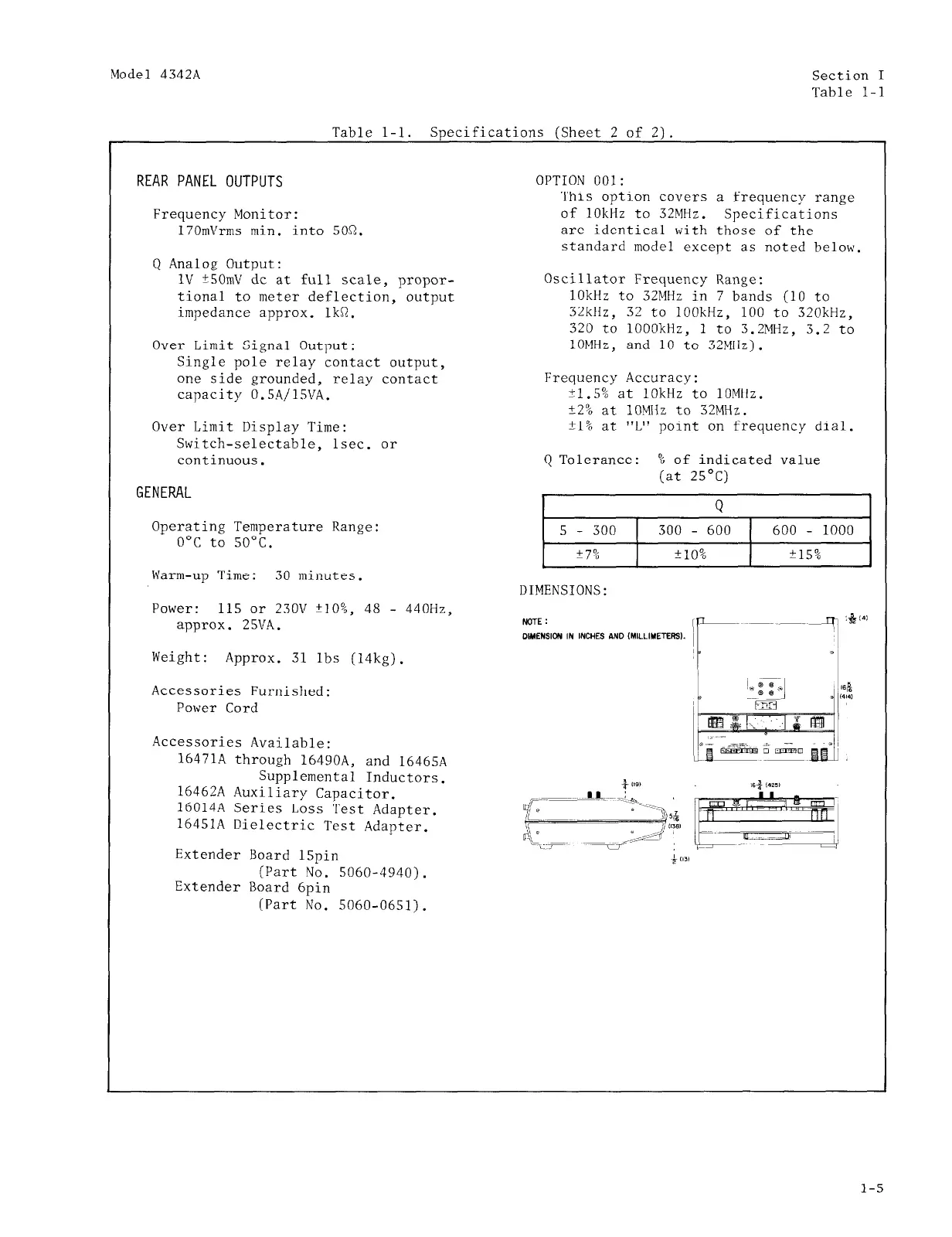

Model 4342A Section I
Table l-1
Table 1-l.
Specifications (Sheet 2 of 2).
REAR PANEL OUTPUTS
OPTION 001:
Frequency Monitor:
17OmVrms min. into SOR.
Q Analog Output:
1V +-50mV dc at full scale, propor-
tional to meter deflection, output
impedance approx. 1kR.
Over Limit Signal Output:
Single pole relay contact output,
one side grounded, relay contact
capacity 0.5.4/15VA.
Over Limit Display Time:
Switch-selectable, lsec. or
continuous.
GENERAL
Operating Temperature Range:
o"c to 50°C.
Warm-up Time: 30 minutes.
Power: 115 or 230V +lO%,
approx. 25VA.
Weight: Approx. 31 lbs (
Accessories Furnished:
Power Cord
Accessories Available:
16471A through 16490A,
Supplemental
This option covers a frequency range
of 10kHz to 32MHz. Specifications
are identical with those of the
standard model except as noted below.
Oscillator Frequency Range:
1OkHz to 32MHz in 7 bands (10 to
32kHz, 32 to lOOkf-Iz, 100 to 320kHz,
320 to lOOOkHz, 1 to 3.2MHz, 3.2 to
IOMHz, and 10 to 32MHz).
Frequency Accuracy:
i-1.5%
at 1OkHz to 1OMllz.
+_2% at 1OMllz to 32MHz.
21% at "L" point on frequency dial.
Q Tolerance: % of indicated value
(at 25'C)
1 5 - 300 1 300 - 600 1 600 - 1000 1
I 27% I ?lO% I
?15%
I
DIMENSIONS:
48 - 440Hz,
NOTE :
:& (41
DLL(ENSIW IN INCHES AND OALLIYETERSI.
4kd.
and 16465A
Inductors.
16462A Auxiliary Capacitor.
16014A Series Loss Test Adapter.
16451A Dielectric Test Adapter.
Extender Board 15pin
(Part No. 5060-4940).
Extender Board 6pin
(Part
No.
5060-0651).
l-5
