HP Q METER 4342A User Manual

Section V
Table 5-l
Model 4342A
Instrument Type
AC Voltmeter
RF Voltmeter
Digital
Voltmeter
Frequency
Counter
Test Oscillator
RF Oscillator
Oscilloscope
Impedance
Meter
Reference
Inductor
5OQ Resistor

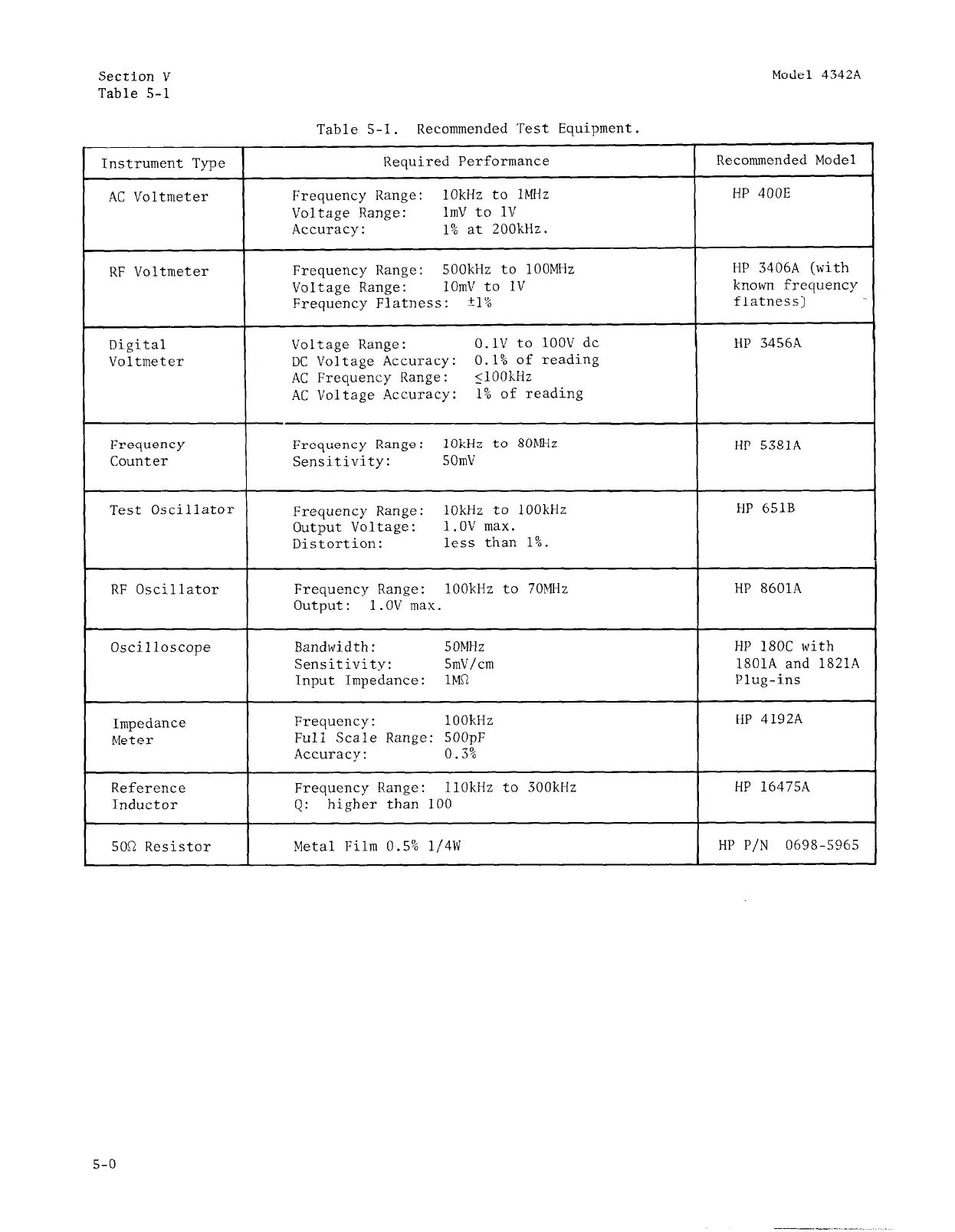

Table 5-l. Recommended Test Equipment.
Required Performance
Frequency Range:
1OkHz to 1MHz
Voltage Range: lmV to 1V
Accuracy: 1% at 200kHz.
Frequency Range:
500kHz to 1OOMHz
Voltage Range:
1OmV to lV
Frequency Flatness:
kl%
Voltage Range:
0.11,' to 1OOV dc
DC Voltage Accuracy:
0.1% of reading
AC Frequency Range:
<lOOkHz
AC Voltage Accuracy:
1% of reading
Frequency Range:
1OkHz to 80111112
Sensitivity: 50mV
Frequency Range: 1OkHz to 1OOkHz
Output Voltage:
l.OV max.
Distortion:
less than 1%.
Frequency Range: 1OOkHz to 70bIHz
output: l.OV max.
Bandwidth: 5OMHz
Sensitivity: SmV/cm
Input Impedance: 1MR
Frequency: 1OOkHz
Full Scale Range: 500pF
Accuracy: 0.3%
Frequency Range: 1lOkHz to 3OOkHz
Q:
higher than 100
Metal Film 0.5% 1/4W
Recommended Model
HP 400E
HP 3406A (with
known frequency
flatness)
HP 3456A
-
HP 5381A
-
HP 651B
HP 8601A
-
HP 180C with
1801A and 1821A
Plug-ins
HP 4192A
-
HP 16475A
-
HP P/N 0698-5965
5-o
