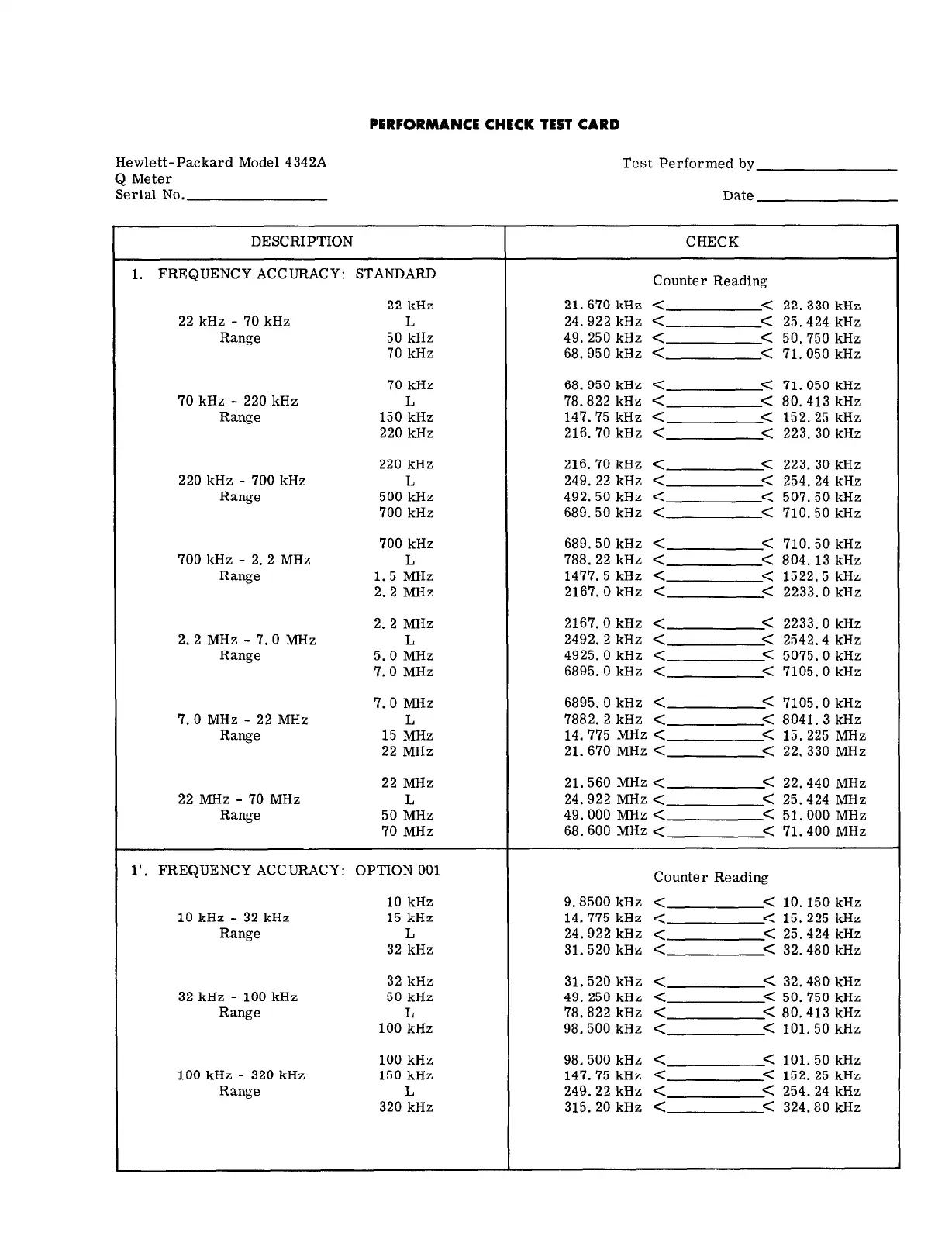

PERFORMANCE CHECK TEST CARD
Hewlett-Packard Model 4342A Test Performed by
Q Meter
Serial No. Date
DESCRIPTION
1. FREQUENCY ACCURACY: STANDARD
22 kHz
22 kHz - 70 kHz L
Range 50 kHz
70 kHz
70 kHz
70 kHz - 220 kHz
L
Range 150 kHz
220 kHz
220 kHz
220 kHz - 700 kHz L
Range 500 kHz
700 kHz
700 kHz
700 kHz - 2.2 MHz L
Range 1.5 MHz
2.2 MHz
2.2 MHz
2.2 MHz - 7.0 MHz L
Range 5.0 MHz
7.0 MHz
7.0 MHz
7.0 MHz - 22 MHz L
Range 15 MHz
22 MHz
22 MHz
22 MHz - 70 MHz L
Range 50 MHz
70 MHz
CHECK
Counter Reading
21.6’70 kHz < < 22.330 kHz
24.922 kHz < < 25.424 kHz
49. 250 kHz < < 50.750 kHz
68.950
kHz < < 71.050 kHz
68. 950
kHz < < 71.050 kHz
78.822 kHz < < 80.413 kHz
147.75 kHz < < 152.25 kHz
216.70 kHz < < 223. 30 kHz
216.70 kHz < < 223. 30 kHz
249. 22 kHz < < 254. 24 kHz
492.50
kHz < < 507.50 kHz
689.50 kHz < < 710.50 kHz
689.50 kHz < < 710.50 kHz
788. 22 kHz < < 804.13 kHz
1477.5 kHz < < 1522.5 kHz
2167.0 kHz < < 2233.0 kHz
2167.0
kHz < < 2233.0 kHz
2492.2 kHz < < 2542.4 kHz
4925.0 kHz < < 5075.0 kHz
6895.0 kHz < < 7105.0 kHz
6895.0 kHz < < 7105.0 kHz
7882.2 kHz < < 8041.3 kHz
14.775
MHz < -< 15.225 MHz
21.670
MHz < < 22.330 MHz
21.560 MHz < < 22.440 MHz
24.922
MHz < < 25.424 MHz
49.000 MHz < < 51.000 MHz
68.600 MHz < < 71.400 MHz
1’. FREQUENCY ACCURACY: OPTION 001
10 kHz
10 kHz - 32 kHz 15 kHz
Range L
32 kHz
32 kHz
32 kHz - 100 kHz
50 kHz
Range L
100 kHz
100 kHz
100 kHz - 320 kHz 150 kHz
Range L
320 kHz
Counter Reading
9.8500 kHz < < 10.150 kHz
14.775 kHz < C 15.225 kHz
24.922 kHz < < 25.424 kHz
31.520
kHz < < 32.480 kHz
31.520
kHz < < 32.480 kHz
49. 250 kHz < < 50.750 kHz
78.822 kHz < < 80.413 kHz
98,500
kHz < < 101.50 kHz
98.500 kHz < < 101.50 kHz
147.75
kHz < < 152. 25 kHz
249.22 kHz < < 254.24 kHz
315. 20 kHz < < 324.80 kHz
