Section VI
Table 6-2

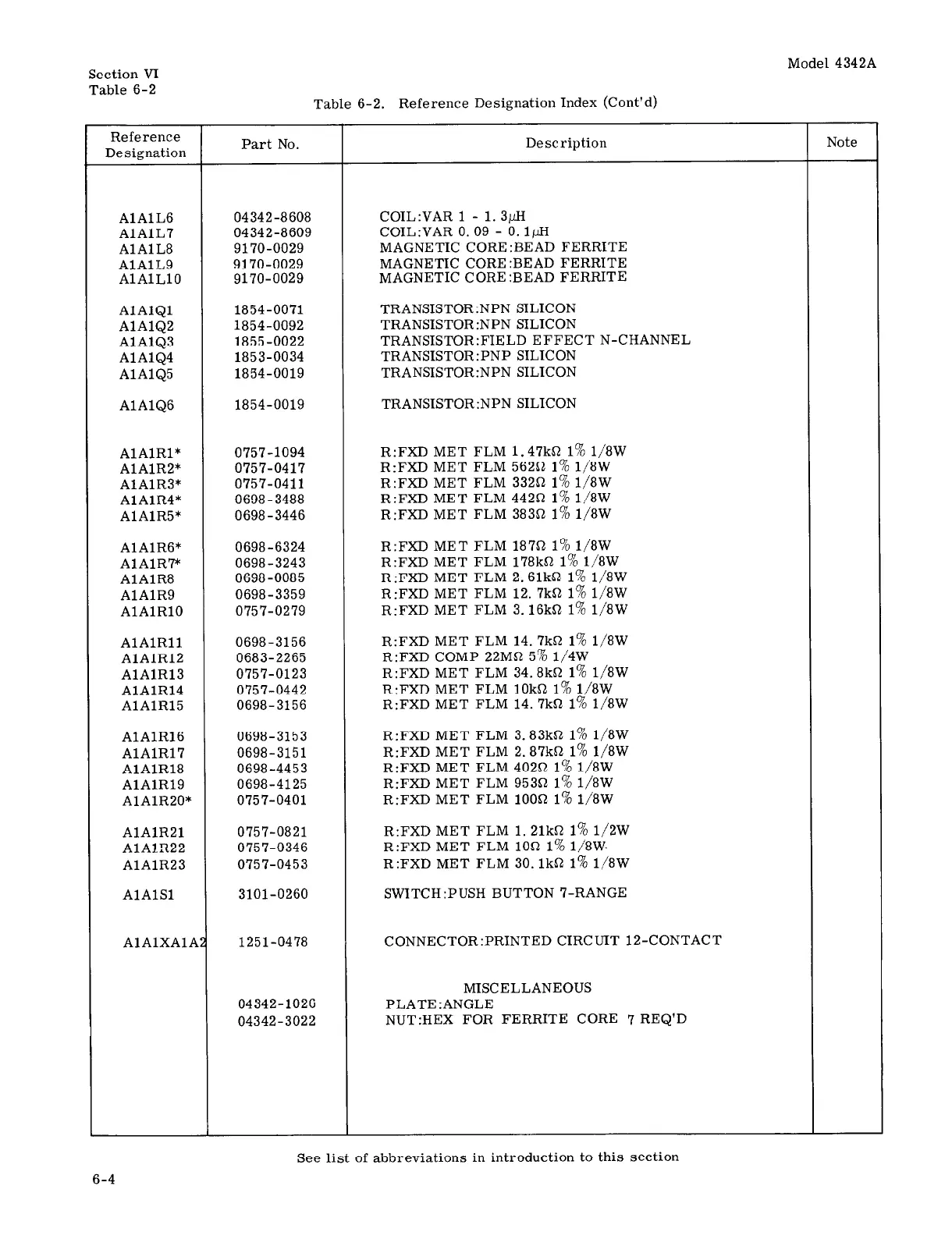

Table 6-2. Reference Designation Index (Cont’d)
Model 4342A
Reference
Designation
AlAlL 04342-8608
AlAlL 04342-8609
AlAlL
9170-0029
AlAlL
9170-0029
AlAlLlO
9170-0029
Al AlQl 1854-0071
AlAlQ2
1854-0092
AlAlQ3 1855-0022
AlAlQ4 1853-0034
AlAlQ5 1854-0019
Al AlQ6 1854-0019
AlAlRl* 0757-1094
AlAlR2* 0757-0417
AlAlR3*
0757-0411
Al AlR4* 0698-3488
Al AlR5* 0698-3446
Al AlRG*
0698-6324
AlAlRr 0698-3243
AlAlR8
0698-0085
AlAlR9 0698-3359
AlAlRlO 0757-0279
AlAlRll
0698-3156
AlAlRl2 0683-2265
AlAlRl3 0757-0123
AlAlR14 0757-0442
AlAlR15 0698-3156
AlAlR16 0698-3153
AlAlRlP 0698-3151
AlAlRl8
0698-4453
AlAlR19 0698-4125
Al AlR20* 0757-0401
AlAlR21
0757-0821
AlAlR22 0757-0346
AlAlR23
0757-0453
AlAlSl
Al AlXAlA
Part No. Description
3101-0260
1251-0478
04342-1026
04342-3022
COIL:VAR 1 - 1.3@
COIL:VAR 0. 09 - O.lpH
MAGNETIC CORE:BEAD FERRITE
MAGNETIC CORE :BE AD FERRITE
MAGNETIC CORE:BEAD FERRITE
TRANSISTOR:NPN SILICON
TRANSISTOR:NPN SILICON
TRANSISTOR:FIELD EFFECT N-CHANNEL
TRANSISTOR:PNP SILICON
TRANSISTOR:NPN SILICON
TRANSISTOR:NPN SILICON
R:FXD MET FLM 1.47kS2 1% 1/8W
R:FXD MET FLM 56252 1% 1/8W
R:FXD MET FLM 3320 1% 1/8W
R:FXD MET FLM 44252 1% 1/8W
R:FXD MET FLM 38352 1% 1/8W
R:FXD MET FLM 187a 1% 1/8W
R:FXD MET FLM 178kS2 1% 1/8W
R:FXD MET FLM 2.61kiZ 1% 1/8W
R:FXD MET FLM 12. 7k0 1% 1/8W
R:FXD MET FLM 3.16kS1 1% 1/8W
R:FXD MET FLM 14.7kfi 1% 1/8W
R:FXD COMP 22MS2 5% 1/4W
R:FXD MET FLM 34.8k52 1% 1/8W
R:FXD MET FLM 10kS-J 1% 1/8W
R:FXD MET FLM 14.7kS1 1% 1/8W
R:FXD MET FLM 3.83k0 1% 1/8W
R:FXD MET FLM 2.87kS2 1% 1/8W
R:FXD MET FLM 4020 1% 1/8W
R:FXD MET FLM 95351 1% 1/8W
R:FXD MET FLM 10052 1% 1/8W
R:FXD MET FLM 1.21kR 1% 1/2W
R:FXD MET FLM 1On 1% 1/8W.
R:FXD MET FLM 3O.lk51 1% 1/8W
SWITCH :PUSH BUTTON ‘I-RANGE
CONNECTOR:PRINTED CIRCUIT 12-CONTACT
MISCELLANEOUS
PLATE:ANGLE
NUT:HEX FOR FERRITE CORE 7 REQ’D
Jote
See list of abbreviations in introduction to this section
6-4
To Next Page
