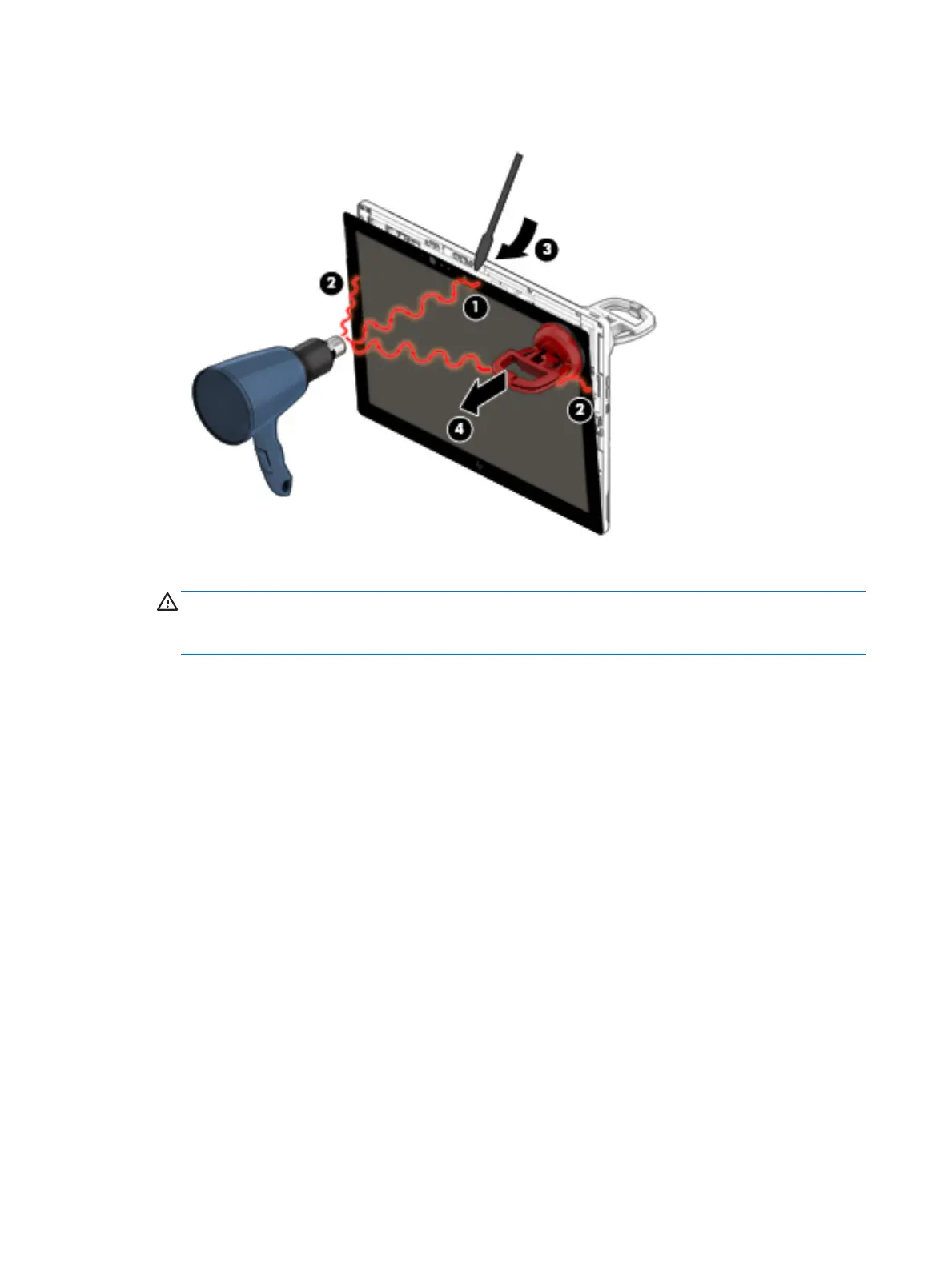

6. Use a case utility tool (3) or similar thin, plastic tool, and the suction cups to separate the display panel
assembly (4) from the back cover.
7. Remove the suction cups.
CAUTION: Before releasing the display panel assembly, make sure the work surface is clear of tools,
screws, and any other foreign objects. Failure to follow this caution can result in damage to the display
panel assembly.
8. Swing the display panel assembly (1) forward until it rests upside down in front of the back cover.
9. Release the zero insertion force (ZIF) connector (2) to which the Touchscreen board cable is connected,
and then disconnect the Touchscreen board cable from the display panel assembly.
10. Release the adhesive support strip (3) that secures the display panel cable connector to
the display panel assembly.
11. Disconnect the display panel cable (4) from the display panel assembly.
22 Chapter 5 Removal and replacement procedures
