Table 3-1 Computer major component descriptions and part numbers (continued)
Item Component Spare part number
In nightfall black nish M22168-001
In Poseidon blue nish M22170-001
Mass storage devices
To identify the mass storage devices, use this illustration and table.
Table 3-2 Solid-state drive descriptions and part numbers
Item Component Spare part number
Solid-state drive:
2 TB, M.2 2280, PCIe-NVMe-3 × 4, SS solid-state drive with TLC L85358-005
1 TB, M.2 2280, PCIe-NVMe-3 × 4, SS solid-state drive with TLC L85348-005
512 GB, M.2 2280, PCIe-3 × 4, SS solid-state drive with TLC L85360-005
256 GB, M.2 2280, PCIe-3 × 4, SS solid-state drive with TLC L85350-005
1 TB, M.2 2280, PCIe + 32 GB, 3D Xpoint solid-state drive L85374-005
512 GB, M.2 2280, PCIe + 32 GB, 3D Xpoint solid-state drive L85366-005
256 GB, M.2 2280, PCIe + 16 GB, 3D Xpoint solid-state drive L85356-005

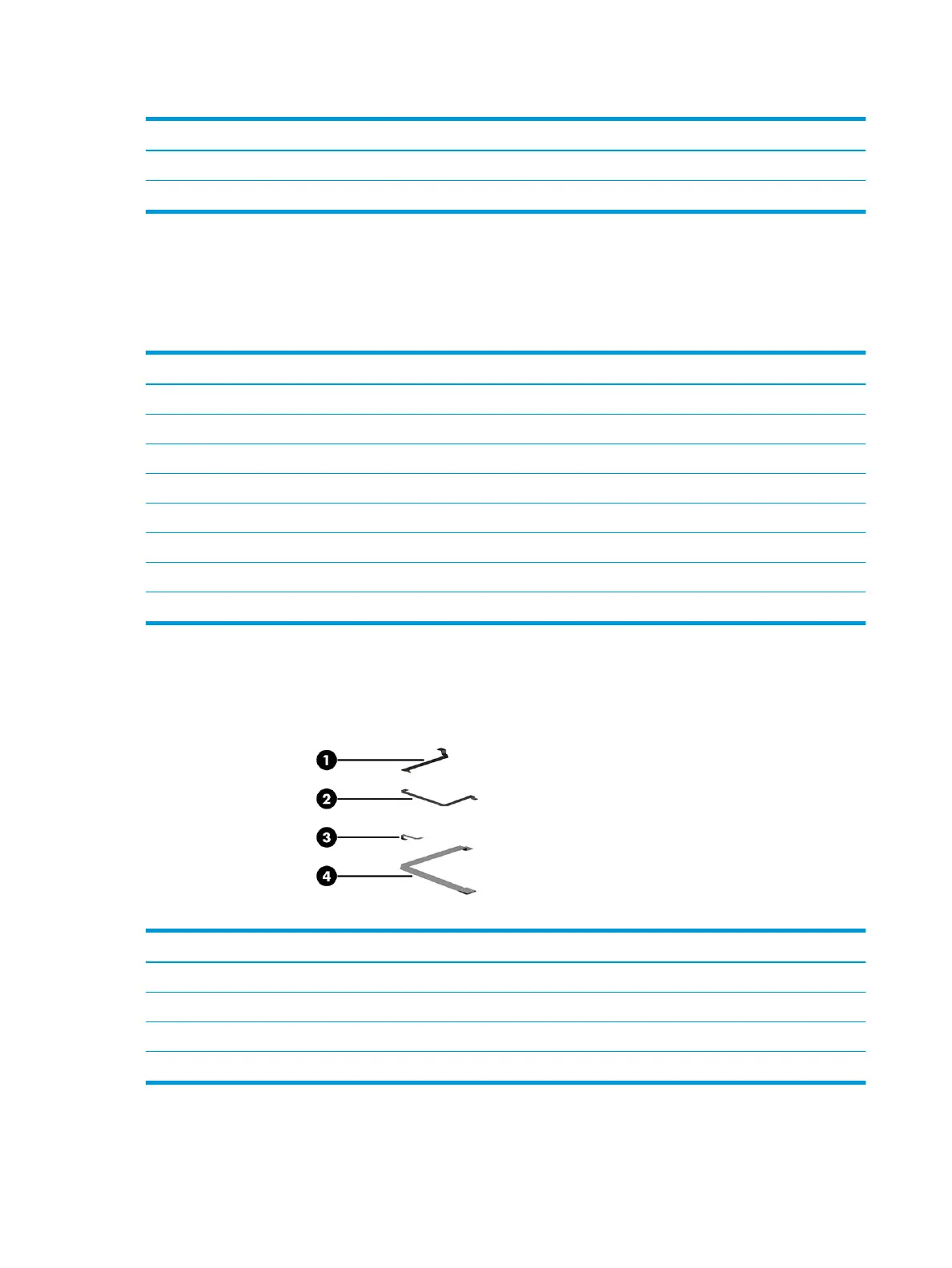

Cables
To identify the cables, use this illustration and table.
Table
3-3 Cable descriptions and part numbers
Item Component Spare part number
(1) Connector board cable M22150-001
(2) Fingerprint reader module cable: the ngerprint reader module cable is not available as a spare part component
(3) Infrared sensor board cable M22151-001
(4) Touchpad cable M22152-001
24 Chapter 3 Illustrated parts catalog ENWW
