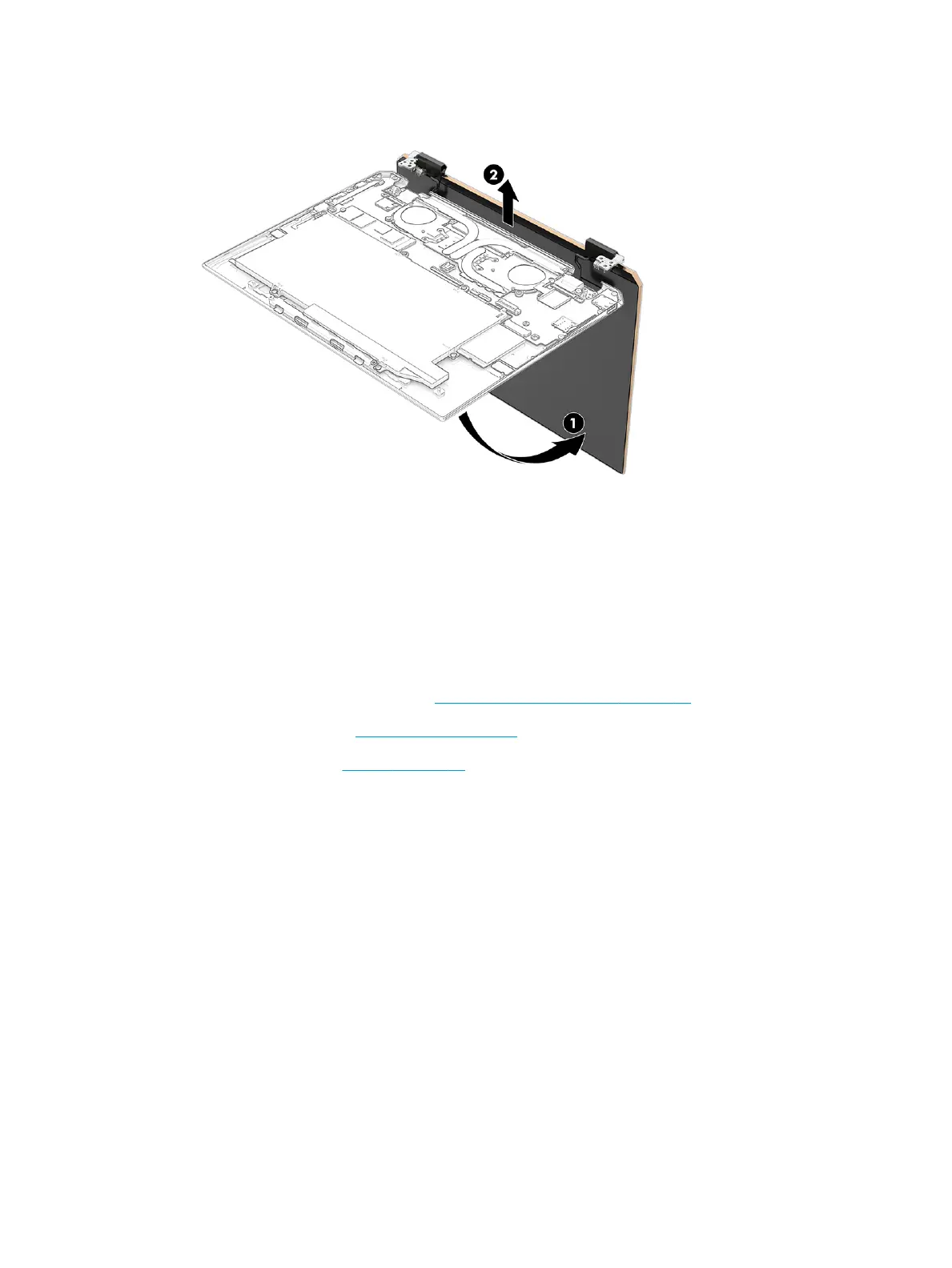

10. Separate the display assembly (2) from the top cover.
Reverse this procedure to replace the display assembly.
Touchpad cable
To remove the touchpad cable, use this procedure and illustration.
The touchpad cable is available using spare part number M22152-001.
Before removing the touchpad cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 37).
2. Remove the bottom cover (Bottom cover on page 37).
3. Remove the battery (see Battery on page 38).
Remove the touchpad cable:
1. Release the ZIF connector (1) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the system board.
2. Release the ZIF connector (2) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the touchpad.
